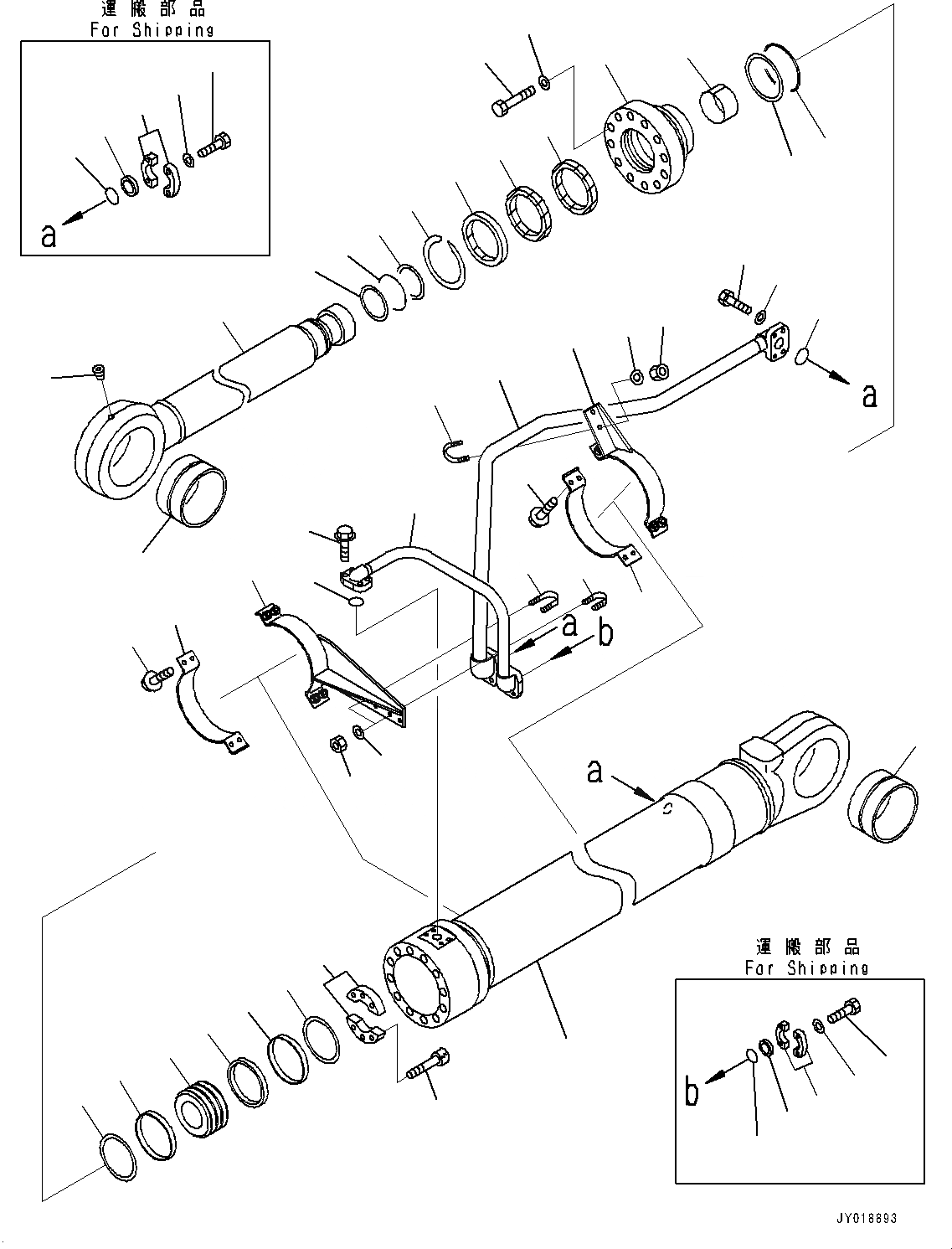

Запчасти Komatsu PC1250-8R РАБОЧЕЕ ОБОРУДОВАНИЕ, ЦИЛИНДР КОВША, ЛЕВ. (№-) РАБОЧЕЕ ОБОРУДОВАНИЕ, ДЛЯ ПРЯМАЯ ЛОПАТА CONFIGURATION

|$0

707-01-0E920

Cylinder Assembly

1

707-13-20450

Cylinder

2

707-58-14230

Rod, Piston

3

707-46-13010

Bushing

4

707-46-13010

Bushing

5

07043-00108

Plug, Taper

6

707-27-20630

Head, Cylinder

7

707-56-14740

Seal, Dust, (Kit : K15)

8

07179-14160

Ring, Snap

9

707-51-14080

Packing, Rod, (Kit : K15)

10

707-51-14640

Ring, Buffer, (Kit : K15)

11

707-52-91151

Bushing

12

07000-15195

O-ring, (Kit : K15)

13

07001-05195

Ring, Back-up, (Kit : K15)

14

01011-82705

Bolt

15

01643-32780

Washer

16

707-36-20300

Piston

17

707-44-20180

Ring, Piston, (Kit : K15)

18

707-39-20820

Ring, Wear, (Kit : K15)

19

707-44-20910

Ring

20

707-40-20870

Spacer

21

01252-61460

Bolt

22

07000-12115

O-ring, (Kit : K15)

23

707-35-52860

Ring, Back-up, (Kit : K15)

24

21N-62-39940

Tube

25

21N-62-39960

Tube

26

21N-62-39880

Bracket

27

21N-62-39850

Bracket

28

707-88-96110

Band

29

07283-33442

Clip, Pipe

30

07283-34346

Clip

31

01597-01009

Nut

32

01643-31032

Washer

33

01435-01235

Bolt

34

01435-01240

Bolt

35

07000-13048

O-ring, (Kit : K15)

36

07000-13038

O-ring, (Kit : K15)

37

01010-81450

Bolt

38

01643-31445

Washer, Flat

39

07378-11210

Head

40

07371-51260

Flange, Split

41

01010-81245

Bolt

42

01643-31232

Washer

43

07378-11410

Head

44

07371-51470

Flange, Split

45

01010-81455

Bolt
