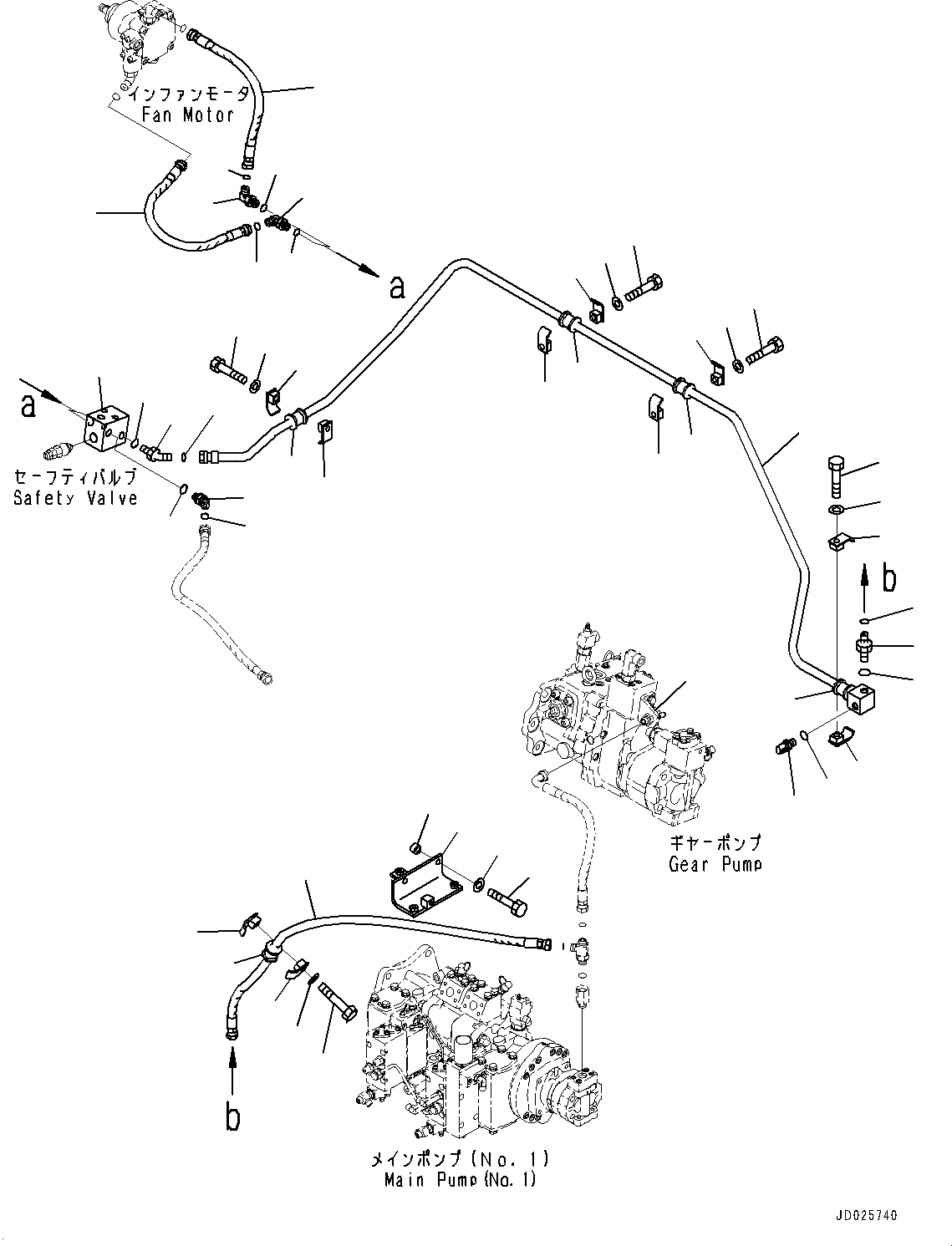

Запчасти Komatsu PC1250-8R ВОЗВРАТ. ТРУБЫ, ПОСЛЕОХЛАДИТЕЛЬ МОТОР ТРУБЫ (№-) ВОЗВРАТ. ТРУБЫ, HOT AREA ARRANGEMENT (+DEG C)

1

21N-62-42230

Tube

2

02781-00420

Union

3

07002-61823

O-ring

4

02896-61012

O-ring

5

7861-93-1812

Sensor, Pressure

5

7861-93-1811

Sensor, Pressure

6

07002-61823

O-ring

6

07002-11823

O-ring

7

07094-10417

Clamp

8

07095-00421

Cushion

9

01010-81265

Bolt

10

01643-31232

Washer

11

01010-81270

Bolt

12

01643-31232

Washer

13

02753-00412

Hose, Face Seal Type

14

07094-10417

Clamp

15

07095-00421

Cushion

16

01010-81265

Bolt

17

01643-31232

Washer

18

21N-62-42340

Bracket

19

01010-81265

Bolt

20

01643-31232

Washer

21

198-33-12380

Washer

22

02753-00406

Hose, Face Seal Type

23

02753-00405

Hose, Face Seal Type

24

02783-10422

Elbow

25

02782-10422

Elbow

26

02896-61012

O-ring

27

07002-62034

O-ring

|$29

21N-60-37700

Valve Assembly

28

Block

29

21N-62-41460

Bracket
