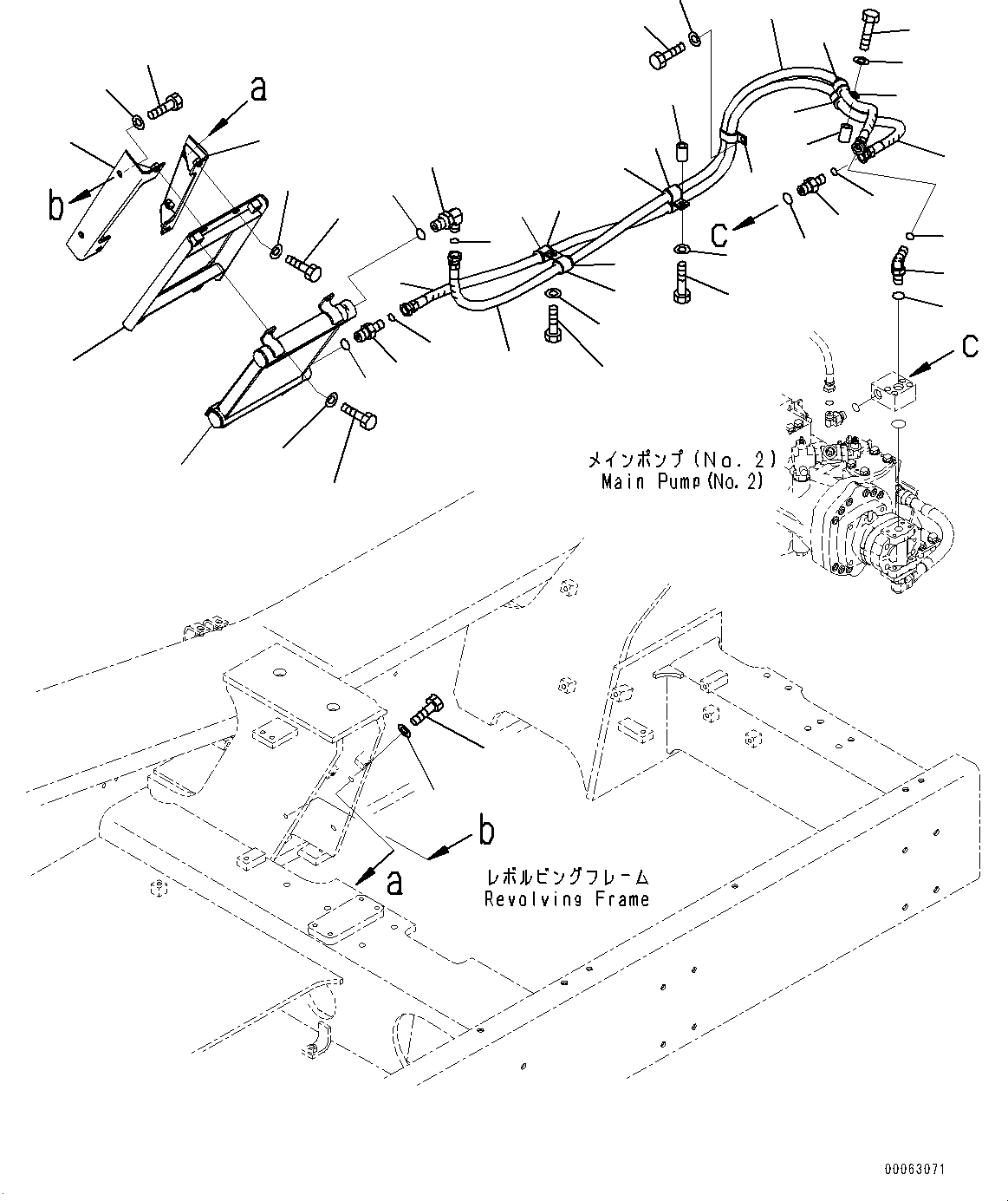

Запчасти Komatsu PC1250-8R POWER TAKEOFF, ДОПОЛН. PTO(МЕХ-М ОТБОРА МОЩНОСТИ) ОХЛАДИТЕЛЬ (№-) POWER TAKEOFF, EXTREME HOT AREA СПЕЦ-ЯIFICATION ( DEG C), VHMS

1

21N-38-41211

Bracket

2

01010-81230

Bolt

3

01643-31232

Washer

4

21N-38-41241

Bracket

5

01010-81240

Bolt

6

01643-31232

Washer

7

21N-38-41251

Bracket

8

01010-81230

Bolt

9

01643-31232

Washer

10

21M-38-21430

Oil Cooler

11

01010-81025

Bolt

12

01643-31032

Washer

13

02782-10425

Elbow

14

02781-0042A

Joint

15

02896-21012

O-ring

16

07002-22434

O-ring

17

02762-00421

Hose

18

02762-00420

Hose, Face Seal Type

19

02782-10422

Elbow

20

02781-00422

Union

21

02896-21012

O-ring

22

07002-22034

O-ring

23

04434-52512

Clip

24

07095-20318

Cushion

25

01010-81230

Bolt

26

01643-31232

Washer

27

04434-52512

Clip

28

07095-20318

Cushion

29

20Y-03-11220

Collar

30

01010-81260

Bolt

31

01643-31232

Washer

32

04435-51912

Clip

33

01010-81225

Bolt

34

01643-31232

Washer

35

04434-52512

Clip

36

07095-20318

Cushion

37

20Y-03-11220

Collar

38

01010-81260

Bolt

39

01643-31232

Washer
