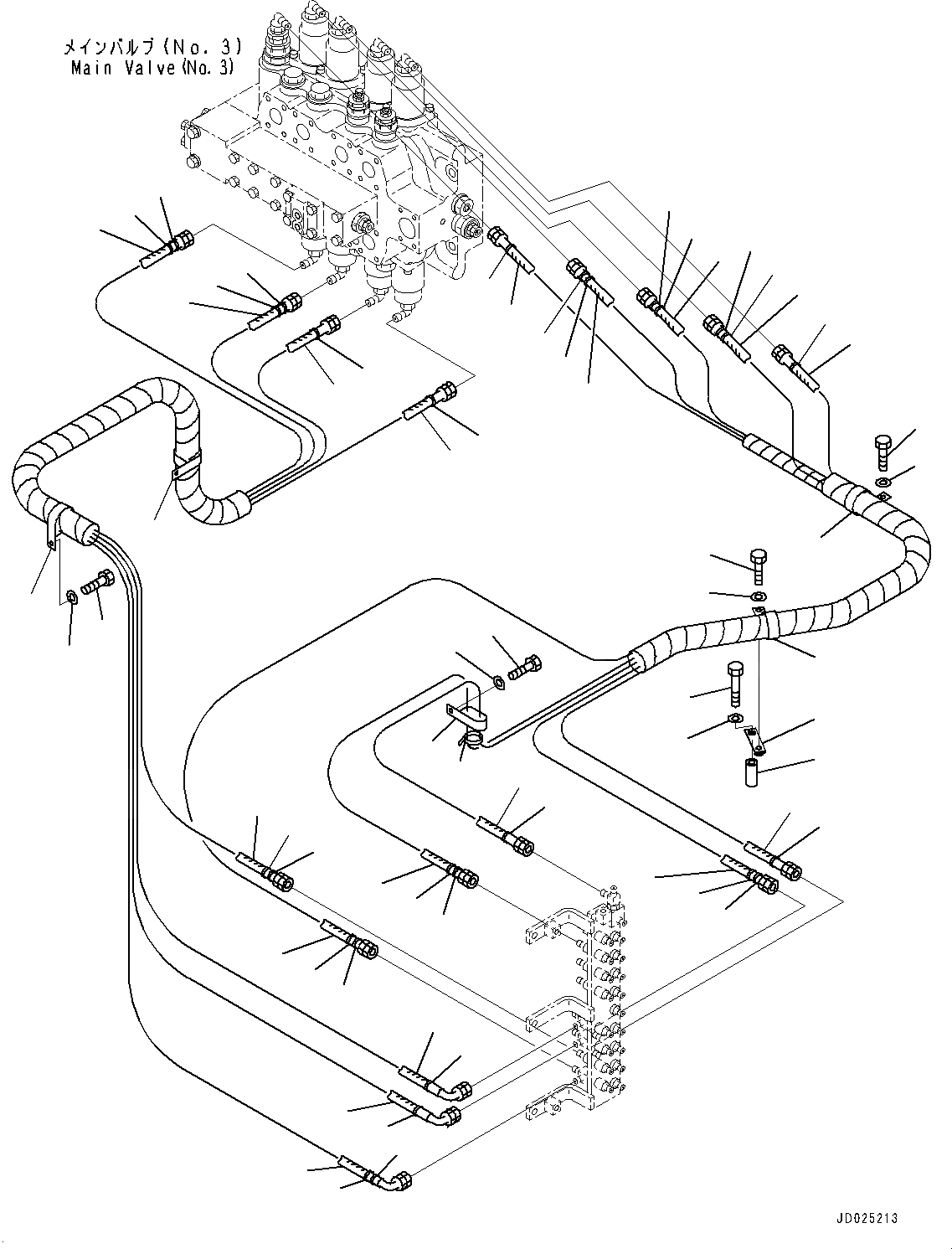

Запчасти Komatsu PC1250-8 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) ТРУБЫ СОЕД-Е, ШЛАНГИ, КЛАПАН (№8-) ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) ТРУБЫ СОЕД-Е, С 7MM РУКОЯТЬ

1

02760-00313

Hose, Face Seal Type

2

02760-00315

Hose, Face Seal Type

3

02760-00316

Hose, Face Seal Type

4

02760-00322

Hose, Face Seal Type

5

02760-00324

Hose, Face Seal Type

6

20Y-62-22790

Band, Red

7

20Y-62-22810

Band, Yellow

8

20Y-62-22830

Band, White

9

20Y-62-22840

Band, Black

10

20Y-62-22850

Band, Green

11

20Y-62-22860

Band, Brown

12

20Y-62-15951

Clip

13

01010-81225

Bolt

14

01643-31232

Washer

15

209-62-67420

Plate

16

203-62-44510

Spacer

17

01010-81280

Bolt

18

01643-31232

Washer

19

02760-00314

Hose, Face Seal Type

20

02761-00314

Hose, Face Seal Type

21

02761-00315

Hose, Face Seal Type

22

20Y-62-22790

Band, Red

23

20Y-62-22820

Band, Blue

24

20Y-62-22830

Band, White

25

20Y-62-22850

Band, Green

26

23S-61-24870

Clip

27

01010-81225

Bolt

28

01643-31232

Washer

29

04435-51512

Clip

30

01010-81225

Bolt

31

01643-31232

Washer

32

08034-20519

Band
