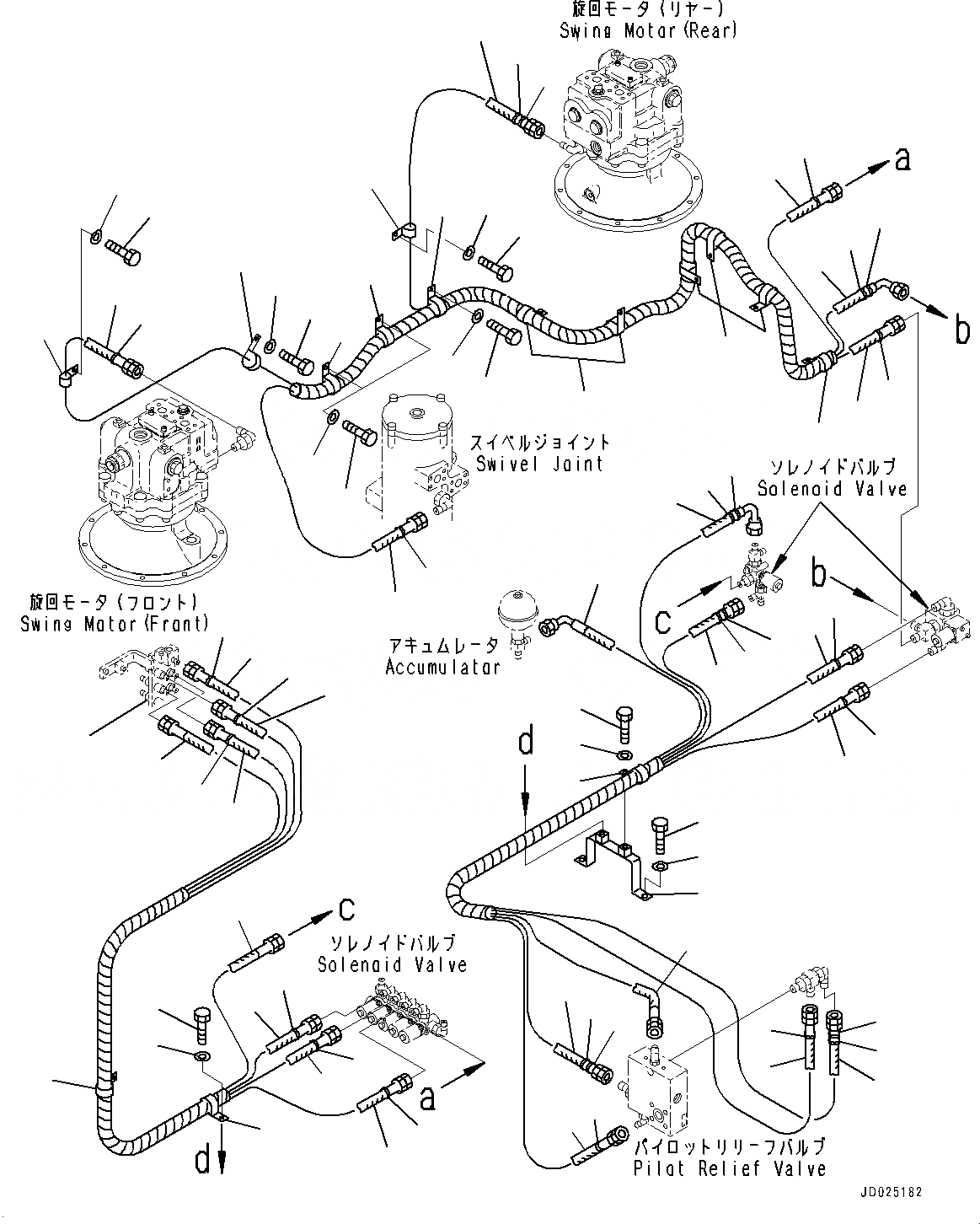

Запчасти Komatsu PC1250-8 СОЛЕНОИДНЫЙ КЛАПАН ТРУБЫ (№8-) СОЛЕНОИДНЫЙ КЛАПАН ТРУБЫ

1

02760-00313

Hose, Face Seal Type

2

02760-00314

Hose, Face Seal Type

3

02760-00315

Hose, Face Seal Type

4

02761-00316

Hose, Face Seal Type

5

02761-00317

Hose, Face Seal Type

6

20Y-62-22820

Band, Blue

7

20Y-62-22830

Band, White

8

20Y-62-22840

Band, Black

9

20Y-62-15951

Clip

10

01010-81225

Bolt

11

01643-31232

Washer

12

02760-00319

Hose, Face Seal Type

13

02760-00320

Hose

14

02760-00321

Hose

15

20Y-62-22790

Band, Red

16

20Y-62-22850

Band, Green

17

20Y-62-22860

Band, Brown

18

23S-61-24870

Clip

19

01010-81225

Bolt

20

01643-31232

Washer

21

02760-00349

Hose, Face Seal Type

22

02760-00353

Hose, Face Seal Type

23

02761-00340

Hose, Face Seal Type

24

20Y-62-22810

Band, Yellow

25

20Y-62-22830

Band, White

26

04434-53412

Clip

27

04434-53412

Clip

28

01010-81225

Bolt

29

01643-31232

Washer

30

04435-51812

Clip

31

01010-81225

Bolt

32

01643-31232

Washer

33

04434-51512

Clip

34

01010-81225

Bolt

35

01643-31232

Washer

36

04434-51512

Clip

37

01010-81225

Bolt

38

01643-31232

Washer

39

21N-62-36480

Bracket

40

01010-81225

Bolt

41

01643-31232

Washer

42

21N-62-36611

Joint
