Запчасти Komatsu PC120SS-3 ГУСЕНИЦЫ (БОЛОТН.) ХОДОВАЯ

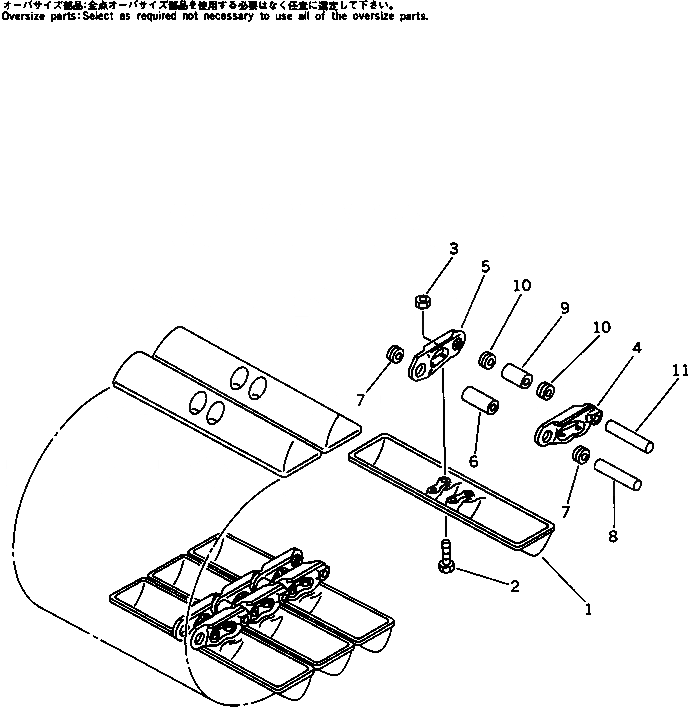

Схема запчастей Komatsu PC120SS-3 - ГУСЕНИЦЫ (БОЛОТН.) ХОДОВАЯ

Артикул

Название

Примечание

Количество

|1

203-32-01112

TRACK SHOE ASS'Y

|1

203-32-01111

TRACK SHOE ASS'Y

|1

203-32-01110

TRACK SHOE ASS'Y

1

11G-32-21120

SHOE,TRACK

2

11G-32-21211

BOLT¤ SHOE (KIT)

|2

203-32-21220

BOLT¤ SHOE (KIT)

3

112-32-11220

NUT¤ SHOE (KIT)

|3

01803-01420

NUT,SHOE (KIT)

|4

203-32-00011

TRACK LINK ASS'Y

|4

203-32-00010

TRACK LINK ASS'Y

4

110-32-11322

LINK,TRACK¤ L.H.

5

110-32-11332

LINK,TRACK¤ R.H.

6

203-32-11342

BUSHING,REGULAR

|6

203-32-11341

BUSHING,REGULAR

7

203-32-11360

SEAL,DUST¤ REGULAR

8

203-32-11351

PIN,REGULAR

9

203-32-11372

BUSHING,MASTER

|9

203-32-11371

BUSHING,MASTER

10

203-32-11380

SEAL,DUST¤ MASTER

11

203-32-11391

PIN,MASTER

|1

11G-32-05000

SHOE BOLT AND NUT K.

|1

203-32-05020

SHOE BOLT AND NUT K.

1

11G-32-21211

BOLT¤ SHOE

|1

203-32-21220

BOLT¤ SHOE

2

112-32-11220

NUT¤ SHOE

|2

01803-01420

NUT,SHOE

6

202-98-09112

BUSHING,REGULAR

|6

202-98-09111

BUSHING,REGULAR

8

202-98-09011

PIN,REGULAR

9

202-98-09142

BUSHING,MASTER

|9

202-98-09141

BUSHING,MASTER

11

202-98-09041

PIN,MASTER

6

202-98-09132

BUSHING,REGULAR

|6

202-98-09131

BUSHING,REGULAR

8

202-98-09031

PIN,REGULAR

9

202-98-09162

BUSHING,MASTER

|9

202-98-09161

BUSHING,MASTER

11

202-98-09061

PIN,MASTER

Выбрано товаров: 38
