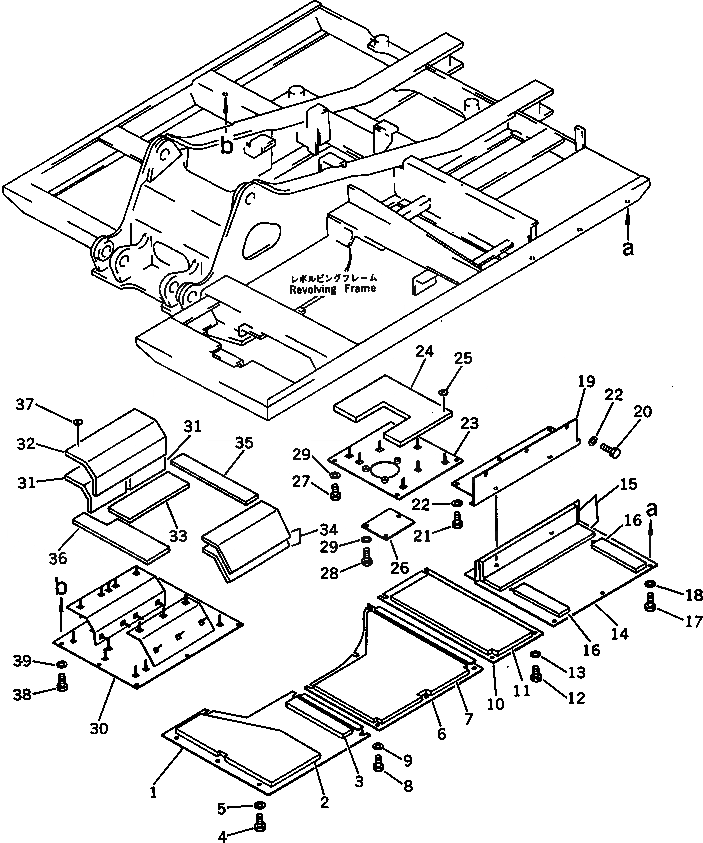

Запчасти Komatsu PC120SS-3 MACHINERY ОБСТАНОВКА (/) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-54-44110

COVER ASS'Y

2

203-54-44130

SHEET

3

203-54-44140

SHEET

4

01010-51025

BOLT

5

01643-31032

WASHER

6

203-54-44150

COVER ASS'Y

7

203-54-44160

SHEET

8

01010-51020

BOLT

9

01643-31032

WASHER

10

203-54-44170

COVER ASS'Y

11

203-54-44180

SHEET

12

01010-51020

BOLT

13

01643-31032

WASHER

14

203-54-44350

COVER

15

203-54-44360

SHEET

16

203-54-44370

SHEET

17

01010-51025

BOLT

18

01643-31032

WASHER

19

203-54-42133

COVER

|19

203-54-42132

COVER

|19

09467-00001

HINGE (WELDED)

|19

09467-00002

SPRING (WELDED)

20

01010-51025

BOLT

21

01010-51020

BOLT

22

01643-31032

WASHER

23

203-54-44190

COVER

24

203-54-44220

SHEET

25

04431-30000

PLATE

26

201-54-26420

PLATE

27

01010-51020

BOLT

28

01010-51025

BOLT

29

01643-31032

WASHER

30

203-54-44270

COVER ASS'Y

31

203-54-44310

SHEET

32

203-54-44320

SHEET

33

203-54-44290

SHEET

34

203-54-44340

SHEET

35

203-54-44280

SHEET

36

203-54-44330

SHEET

37

04431-30000

PLATE

38

01010-51025

BOLT

39

01643-31032

WASHER
