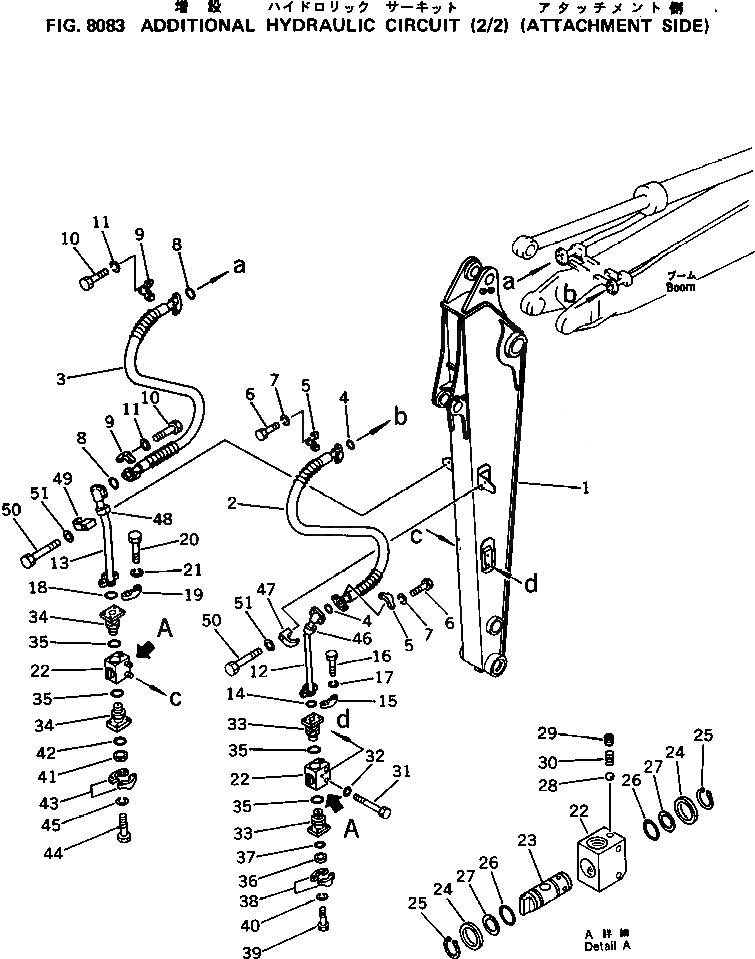

Запчасти Komatsu PC120SS-3 ДОПОЛН. ГИДРАВЛ КОНТУР (/) (НАВЕСН. ОБОРУД) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

203-973-4121

ARM

|1

203-973-4120

ARM

2

07099-20517

HOSE

3

07099-21017

HOSE

4

07000-13022

O-RING

5

07371-30500

FLANGE,SPLIT

6

01010-50830

BOLT

7

01602-20825

WASHER,SPRING

8

07000-13032

O-RING

9

07371-31049

FLANGE,SPLIT

10

01010-51035

BOLT

11

01602-21030

WASHER,SPRING

12

203-973-4240

TUBE

13

203-973-4250

TUBE

14

07000-13022

O-RING

15

07371-30500

FLANGE,SPLIT

16

01010-50830

BOLT

17

01602-20825

WASHER,SPRING

18

07000-13032

O-RING

19

07371-31049

FLANGE,SPLIT

20

01010-51035

BOLT

21

01602-21030

WASHER,SPRING

|22

203-973-3900

VALVE ASS'Y

22

203-973-3910

BODY,VALVE

23

203-973-3920

SPOOL

24

131-60-16170

WASHER

25

04064-03818

RING,SNAP

26

07000-13032

O-RING

27

07001-03032

RING,BACK-UP

28

04260-00793

BALL

29

07043-00108

PLUG

30

236-10-12240

SPRING

31

01010-51075

BOLT

32

01643-31032

WASHER

33

203-973-4280

NIPPLE

34

20D-62-11660

NIPPLE

35

07002-13334

O-RING

36

07378-10500

HEAD

37

07000-13022

O-RING

38

07371-30500

FLANGE,SPLIT

39

01010-50830

BOLT

40

01602-20825

WASHER,SPRING

41

07378-11000

HEAD

42

07000-13032

O-RING

43

07371-31049

FLANGE,SPLIT

44

01010-51035

BOLT

45

01602-21030

WASHER,SPRING

46

203-62-43390

CUSHION

47

203-62-43370

CLAMP

48

203-973-4390

CUSHION

49

203-973-4450

CLAMP

50

01010-51275

BOLT

51

01643-31232

WASHER
