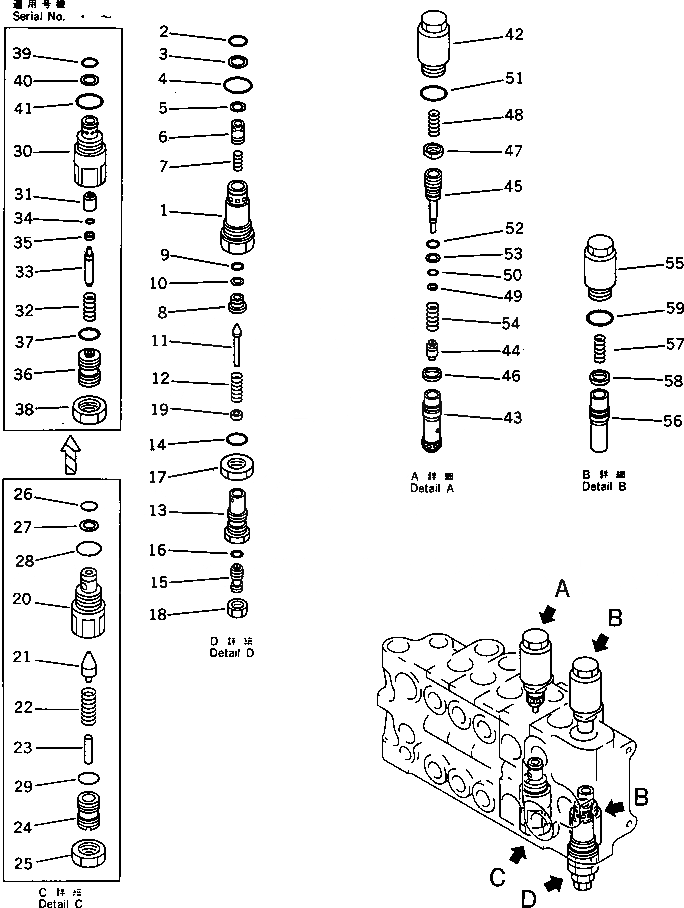

Запчасти Komatsu PC120SS-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-25002

CONTROL VALVE ASS'Y,R.H.

|1

700-85-25001

CONTROL VALVE ASS'Y

|1

700-85-25000

CONTROL VALVE ASS'Y

|1

700-86-55001

VALVE ASS'Y,RELIEF

1

SLEEVE

2

700-13-31161

O-RING

3

700-80-51190

RING,BACK-UP

4

07002-03334

O-RING

5

700-80-51350

RING,SNAP

6

VALVE

7

700-80-51390

SPRING

8

700-80-51740

SEAT

9

07000-22012

O-RING

10

07001-02012

RING,BACK-UP

11

700-80-61190

POPPET

12

709-20-51231

SPRING

13

700-80-51360

HOLDER

14

07002-02434

O-RING

15

700-80-51630

SCREW

16

07000-02011

O-RING

17

07239-12410

NUT

18

01582-11411

NUT

19

709-90-51260

RETAINER

|20

700-81-72000

SAFETY VALVE ASS'Y

20

SLEEVE

21

POPPET

22

SPRING

23

PIN

24

SCREW

25

NUT

26

700-22-11410

O-RING

27

700-80-64220

RING,BACK-UP

28

07002-03034

O-RING

29

O-RING

|30

700-81-71001

SAFETY VALVE ASS'Y,SUCTION AND SAFETY

30

SLEEVE

31

POPPET

32

SPRING

|32

SPRING

33

PISTON

34

O-RING

35

SEAL

36

SCREW

37

O-RING

38

NUT

39

700-22-11410

O-RING

40

700-80-64220

RING,BACK-UP

41

07002-03034

O-RING

|42

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

|42

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

42

700-80-62310

SLEEVE

43

VALVE

44

POPPET

45

PISTON

46

SEAL

47

NUT

|47

NUT

48

700-80-62250

SPRING

49

SEAL

50

O-RING

51

07002-03034

O-RING

52

O-RING

53

RING,BACK-UP

54

SPRING

|54

SPRING

|55

700-81-81000

VALVE ASS'Y,SUCTION

55

700-80-62310

SLEEVE

56

VALVE

57

700-80-62250

SPRING

58

SEAL

59

07002-03034

O-RING
