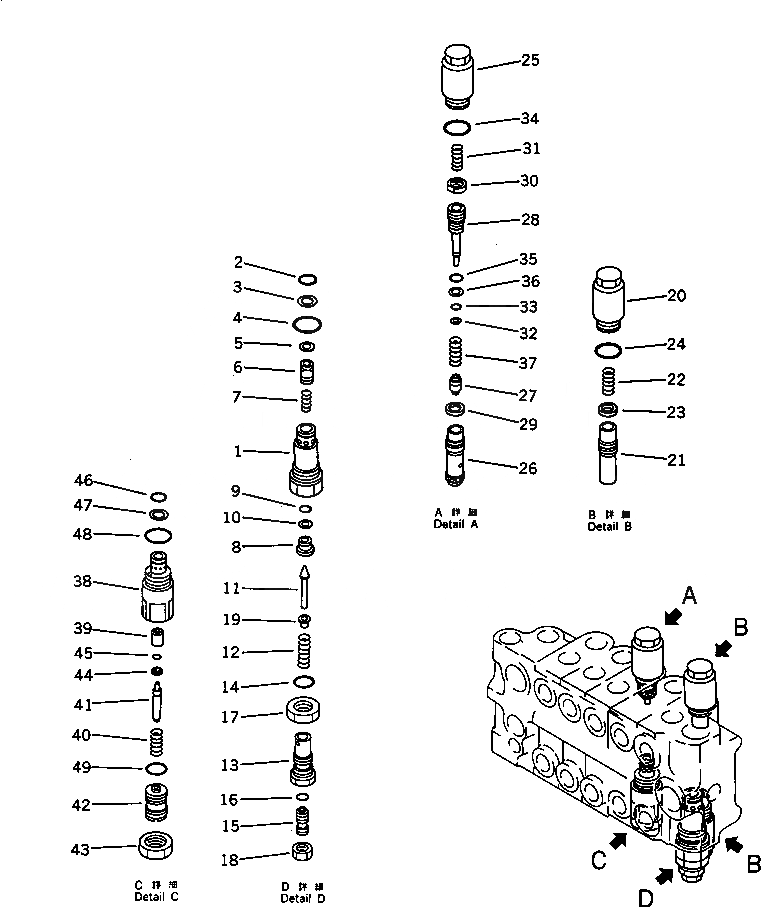

Запчасти Komatsu PC120SS-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
700-85-26003
CONTROL VALVE ASS'Y,R.H.
|1
700-85-26002
CONTROL VALVE ASS'Y,R.H.
|1
700-85-26001
CONTROL VALVE ASS'Y,R.H.
|1
700-85-26000
CONTROL VALVE ASS'Y,R.H.
|1
700-86-55001
VALVE ASS'Y,RELIEF
1
SLEEVE
2
700-13-31161
O-RING
3
700-80-51190
RING,BACK-UP
4
07002-03334
O-RING
5
700-80-51350
RING,SNAP
6
VALVE
7
700-80-51390
SPRING
8
700-80-51740
SEAT
9
07000-22012
O-RING
10
07001-02012
RING,BACK-UP
11
700-80-61190
POPPET
12
709-20-51231
SPRING
13
700-80-51360
HOLDER
14
07002-02434
O-RING
15
700-80-51630
SCREW
16
07000-02011
O-RING
17
07239-12410
NUT
18
01582-11411
NUT
19
709-90-51260
RETAINER
|20
700-81-72000
SAFETY VALVE ASS'Y
20
SLEEVE
21
POPPET
22
SPRING
23
PIN
24
SCREW
25
NUT
26
700-22-11410
O-RING
27
700-80-64220
RING,BACK-UP
28
07002-03034
O-RING
29
O-RING
|30
700-81-71001
SAFETY VALVE ASS'Y
30
SLEEVE
31
POPPET
32
SPRING
|32
SPRING
33
PISTON
34
O-RING
35
SEAL
36
SCREW
37
O-RING
38
NUT
39
700-22-11410
O-RING
40
700-80-64220
RING,BACK-UP
41
07002-03034
O-RING
|42
700-81-61002
VALVE ASS'Y,SUCTION AND SAFETY
|42
700-81-61001
VALVE ASS'Y,SUCTION AND SAFETY
42
SLEEVE
43
VALVE
44
POPPET
45
PISTON
46
SEAL
47
NUT
|47
NUT
48
700-80-62250
SPRING
49
SEAL
50
O-RING
51
07002-03034
O-RING
52
O-RING
53
RING,BACK-UP
54
SPRING
|54
SPRING
|55
700-81-81000
VALVE ASS'Y
55
700-80-62310
SLEEVE
56
VALVE
57
700-80-62250
SPRING
58
SEAL
59
07002-03034
O-RING
Выбрано товаров: 72
