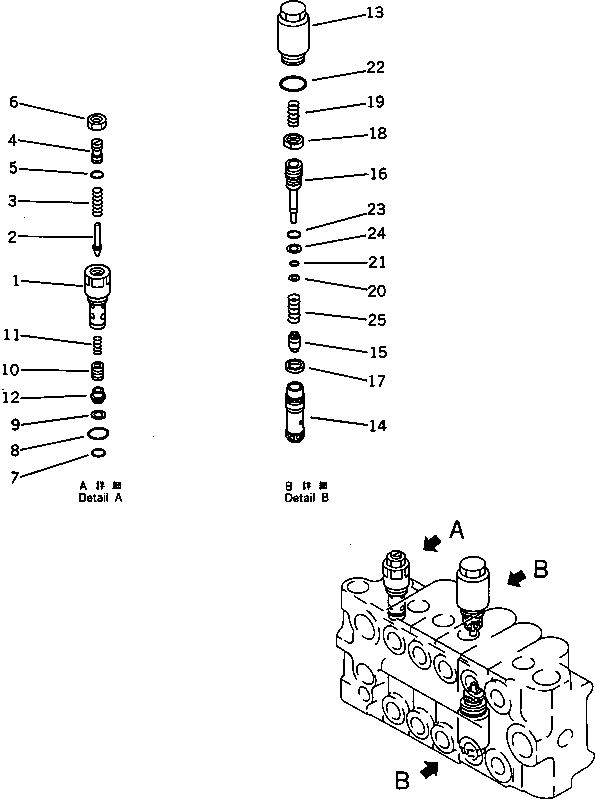

Запчасти Komatsu PC120SS-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-26003

CONTROL VALVE ASS'Y,R.H.

|1

700-85-26002

CONTROL VALVE ASS'Y,R.H.

|1

700-85-26001

CONTROL VALVE ASS'Y,R.H.

|1

700-85-26000

CONTROL VALVE ASS'Y,R.H.

|1

700-26-53000

VALVE ASS'Y,RELIEF

1

SLEEVE

2

700-80-61190

POPPET

3

700-20-51580

SPRING

4

700-20-51340

SCREW

5

07000-02011

O-RING

6

01582-11411

NUT

7

700-22-11410

O-RING

8

07002-02434

O-RING

9

700-20-51550

RING

10

VALVE

11

700-20-51610

SPRING

12

700-20-51540

RETAINER

|13

700-81-61002

VALVE ASS'Y,SUCTION

|13

700-81-61001

VALVE ASS'Y,SUCTION

13

700-80-62310

SLEEVE

14

VALVE

15

POPPET

16

PISTON

17

SEAL

18

NUT

|18

NUT

19

700-80-62250

SPRING

20

SEAL

21

O-RING

22

07002-03034

O-RING

23

O-RING

24

RING,BACK-UP

25

SPRING

|25

SPRING

|26

700-82-73000

SAFETY VALVE ASS'Y

26

SLEEVE

27

POPPET

28

SPRING

29

PISTON

30

O-RING

31

SEAL

32

SCREW

33

O-RING

34

NUT

35

700-22-11410

O-RING

36

700-80-64220

RING,BACK-UP

37

07002-03034

O-RING
