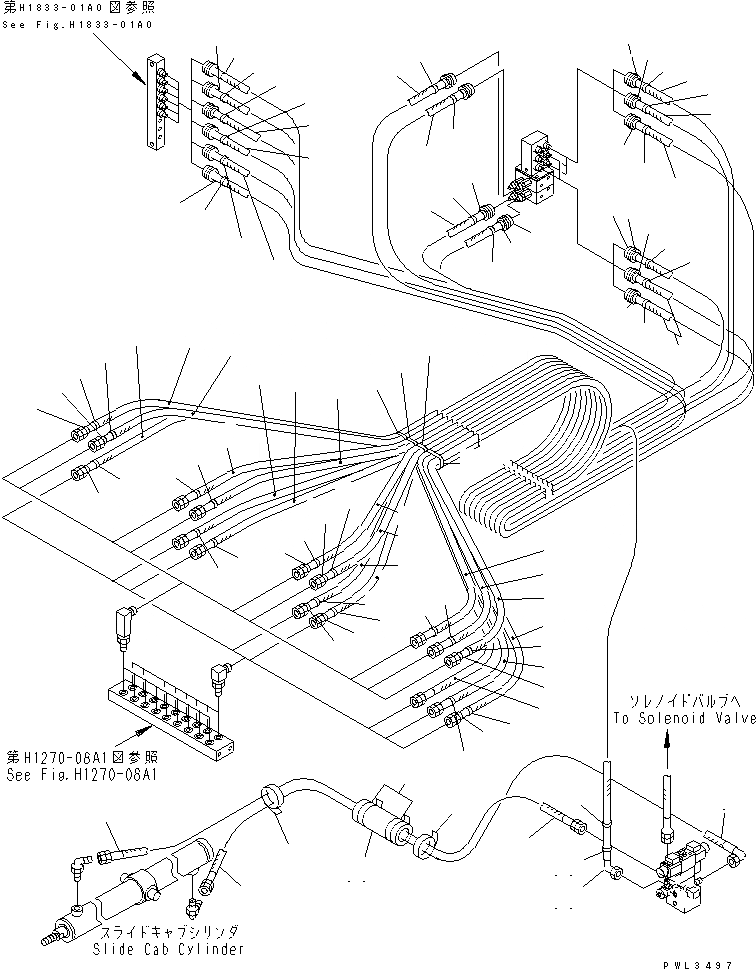

Запчасти Komatsu PC120SC-6 НАВЕСНОЕ ОБОРУД-Е (P.P.C. СОЕД-Е ШЛАНГИ) (ДЛЯ SLIDE КАБИНА)(№-99) ГИДРАВЛИКА

1

201-62-72350

HOSE

2

08034-00536

BAND

3

203-62-64680

HOSE

4

203-62-64851

HOSE

5

203-62-64651

HOSE

6

203-62-64871

HOSE¤ 3800MM

7

203-62-64891

HOSE¤ 3700MM

8

20Y-62-22790

BAND¤ RED

9

20Y-62-22810

BAND¤ YELLOW

10

20Y-62-22820

BAND¤ BLUE

11

20Y-62-22830

BAND¤ WHITE

12

08034-00519

BAND

13

203-62-64851

HOSE

14

203-62-64861

HOSE¤ 3850MM

15

203-62-64871

HOSE¤ 3800MM

16

20Y-62-22790

BAND¤ RED

17

20Y-62-22820

BAND¤ BLUE

18

20Y-62-22830

BAND¤ WHITE

19

20Y-62-22840

BAND¤ BLACK

20

20Y-62-22850

BAND¤ GREEN

21

08034-00519

BAND

22

203-62-64741

HOSE

23

203-62-64871

HOSE¤ 3800MM

24

203-62-64921

HOSE¤ 3650MM

25

20Y-62-22830

BAND¤ WHITE

26

20Y-62-22840

BAND¤ BLACK

27

20Y-62-22850

BAND¤ GREEN

28

20Y-62-22860

BAND¤ BROWN

29

08034-00519

BAND

30

203-62-64910

HOSE¤ 3500MM

31

203-62-64921

HOSE¤ 3650MM

32

203-62-64741

HOSE

33

20Y-62-22790

BAND¤ RED

34

20Y-62-22810

BAND¤ YELLOW

35

20Y-62-22820

BAND¤ BLUE

36

20Y-62-22850

BAND¤ GREEN

37

08034-00519

BAND

38

205-62-72140

COVER

39

08034-00536

BAND

40

08034-00876

BAND
