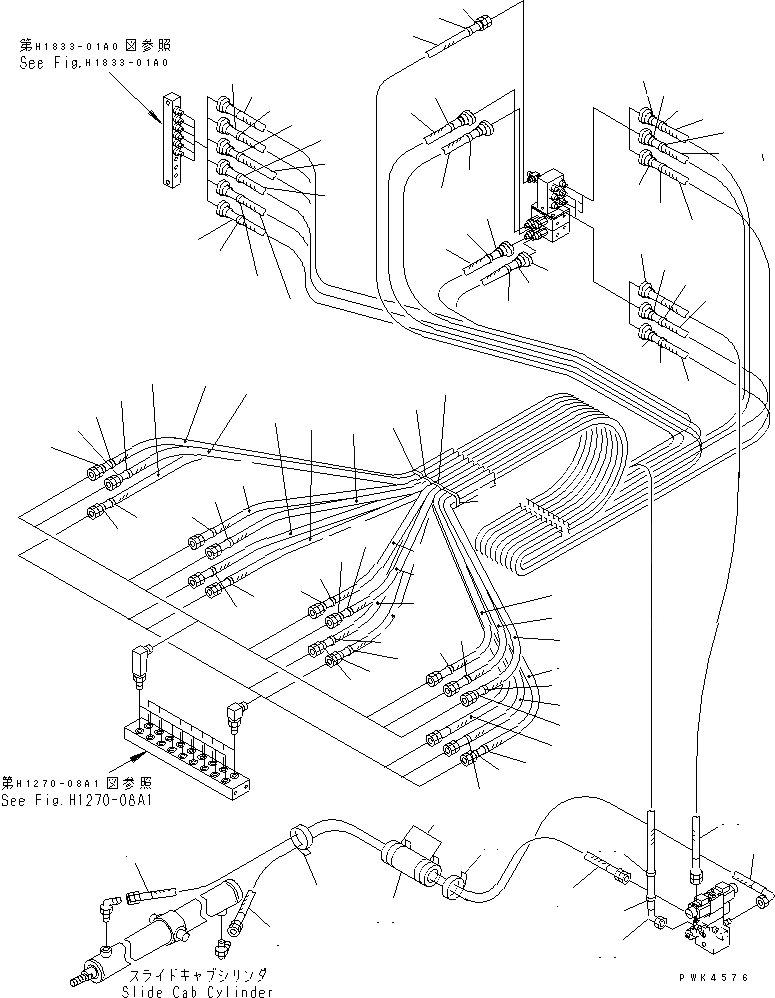

Запчасти Komatsu PC120SC-6 НАВЕСНОЕ ОБОРУД-Е (P.P.C. СОЕД-Е ШЛАНГИ)(№-) ГИДРАВЛИКА

1

209-62-77540

HOSE¤ 1700MM

2

08034-00536

BAND

3

20T-62-84140

HOSE

4

203-62-64850

HOSE¤ 3750MM

5

203-62-64650

HOSE

|5

203-62-64860

HOSE¤ 3850MM

5A

203-62-64650

HOSE

|5A

203-62-64870

HOSE¤ 3800MM

6

203-62-64870

HOSE¤ 3800MM

6A

203-62-64890

HOSE¤ 3700MM

|6A

203-62-64870

HOSE¤ 3800MM

7

203-62-64890

HOSE¤ 3700MM

|7

203-62-64880

HOSE¤ 3700MM

8

20Y-62-22790

BAND¤ RED

9

20Y-62-22810

BAND¤ YELLOW

10

20Y-62-22820

BAND¤ BLUE

11

20Y-62-22830

BAND¤ WHITE

12

08034-00519

BAND

13

203-62-64850

HOSE¤ 3750MM

14

203-62-64860

HOSE¤ 3850MM

|14

203-62-64890

HOSE¤ 3700MM

14A

203-62-64870

HOSE¤ 3800MM

|14A

203-62-64890

HOSE¤ 3700MM

15

20Y-62-22790

BAND¤ RED

16

20Y-62-22820

BAND¤ BLUE

17

20Y-62-22830

BAND¤ WHITE

18

20Y-62-22840

BAND¤ BLACK

19

20Y-62-22850

BAND¤ GREEN

20

08034-00519

BAND

21

203-62-64870

HOSE¤ 3800MM

|21

203-62-64850

HOSE¤ 3750MM

22

203-62-64870

HOSE¤ 3800MM

23

203-62-64920

HOSE¤ 3650MM

24

203-62-64740

HOSE

|24

203-62-64930

HOSE¤ 3600MM

25

20Y-62-22830

BAND¤ WHITE

26

20Y-62-22840

BAND¤ BLACK

27

20Y-62-22850

BAND¤ GREEN

28

20Y-62-22860

BAND¤ BROWN

29

08034-00519

BAND

30

203-62-64910

HOSE¤ 3500MM

31

203-62-64920

HOSE¤ 3650MM

32

203-62-64740

HOSE

|32

203-62-64930

HOSE¤ 3600MM

33

20Y-62-22790

BAND¤ RED

34

20Y-62-22810

BAND¤ YELLOW

35

20Y-62-22820

BAND¤ BLUE

36

20Y-62-22850

BAND¤ GREEN

37

08034-00519

BAND

38

203-62-65660

HOSE¤ 270MM

39

205-62-72140

COVER

40

08034-00536

BAND

41

08034-00876

BAND
