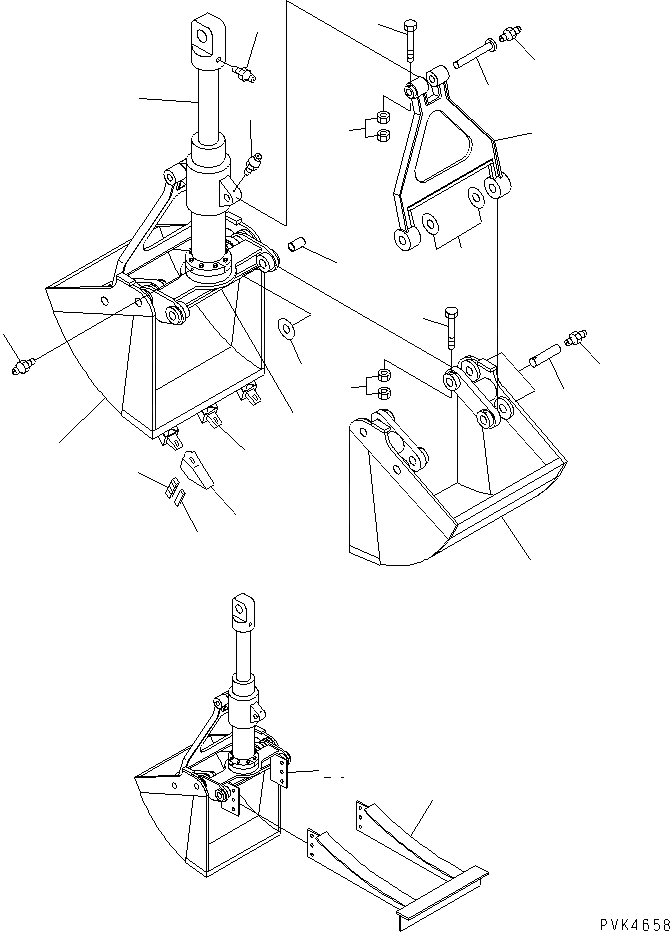

Запчасти Komatsu PC120SC-6 .M ГРЕЙФЕРН. КОВШ(КОВШ)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

203-957-5510

CLAMSHELL BUCKET

1

ARK100CSB40-1A

BUCKET

2

ARK100CSB40-1B

BUCKET

3

ARK100CSB40-02

POINT

4

ARK100CSB40-03

LOCK

5

ARK100CSB40-04

RUBBER

6

ARK100CSB40-05

PIN

7

ARK100CSB40-06

BOLT

8

ARK100CSB40-07

NUT

9

ARK100CSB40-08

SHIM

10

ARK100CSB40-09

LINK

11

ARK100CSB40-10

PIN

12

ARK100CSB40-11

BOLT

13

ARK100CSB40-12

NUT

14

ARK100CSB40-13

CYLINDER,(SEE FIG.Y1957-02A0)

15

ARK100CSB40-21

FITTING

16

ARK100CSB40-34

HOLDER

17

ARK100CSB40-30

ADAPTER

18

ARK100CSB40-31

BUSHING

19

ARK100CSB40-32

EJECTOR

20

ARK100CSB40-33

PLATE
