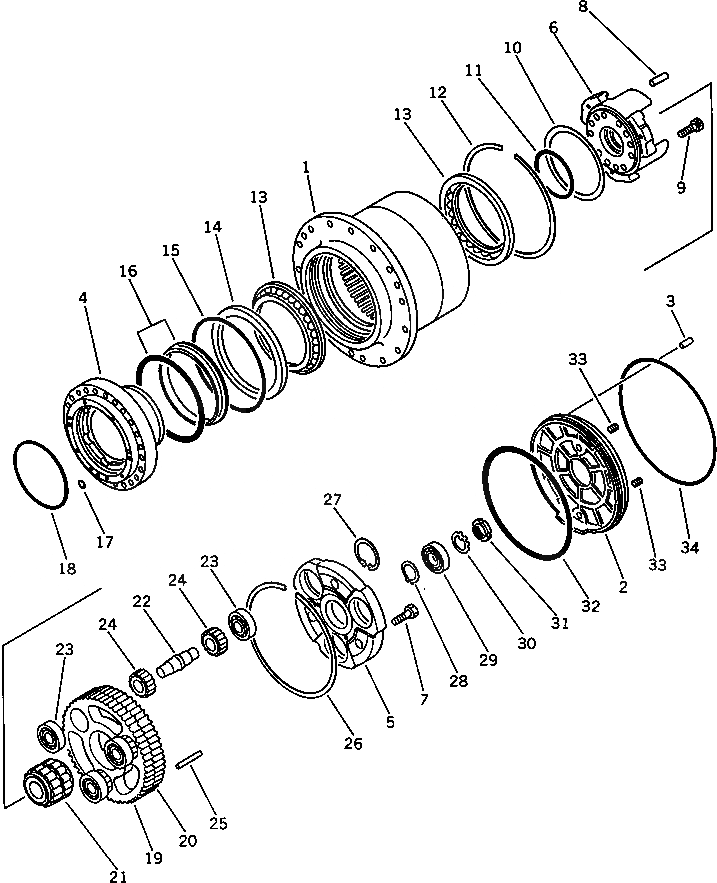

Запчасти Komatsu PC120S-3 МОТОР ХОДА (/) (ДЛЯ ЯПОН.) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|1

203-60-00302

TRAVEL MOTOR ASS'Y

|1

203-60-00301

TRAVEL MOTOR ASS'Y

|1

203-60-00300

TRAVEL MOTOR ASS'Y

|1

203-60-41101

TRAVEL MOTOR ASS'Y

|1

TZ150A1103-00

HUB ASS'Y

1

TZ150A1001-02

HUB

|1

TZ150A1001-01

HUB

|1

HUB

2

TZ150A1008-02

COVER

|2

TZ150A1008-01

COVER

|2

COVER

3

PIN,DOWEL

|4

TZ150A1102-01

SPINDLE ASS'Y

4

HUB

5

FLANGE,HOLD

6

CARRIER

7

TZ100A1019-00

BOLT,REAMER

8

TZ200A1015-00

PIN

9

01252-31850

BOLT

10

TZ200A1013-00

PIECE,DISTANCE

11

TZJW1516-G26-9

O-RING (KIT)

12

TZ150A1011-00

RING

13

TZ200A1021-01

BEARING,BALL

|13

TZ200A1021-00

BEARING,BALL

14

TZ150A1010-00

PIECE,DISTANCE

15

07000-15260

O-RING (KIT)

16

TZES100-209-A

SEAL,FLOATING (KIT)

17

07000-11006

O-RING (KIT)

18

TZJW1516-G41-9

O-RING (KIT)

|19

TZ150A1104-00

GEAR ASS'Y

19

GEAR

20

GEAR

21

BEARING

|21

TZ150A1007-00

BEARING

22

SHAFT,CRANK

23

BEARING

24

BEARING

25

TZ150A1017-00

PIN

26

TZ150A1012-00

RING

27

TZ150A1020-00

SNAP RING KIT,SNAP

28

04064-04018

RING,SNAP

29

TZ150A1024-00

BEARING

30

TZJB1555-AW07

WASHER

31

TZJB1554-AN07

NUT

32

TZJW1516-P77-7

O-RING (KIT)

|32

07000-15270

O-RING (KIT)

33

TZGM1-2

PLUG

34

TZ150A1018-00

RING
