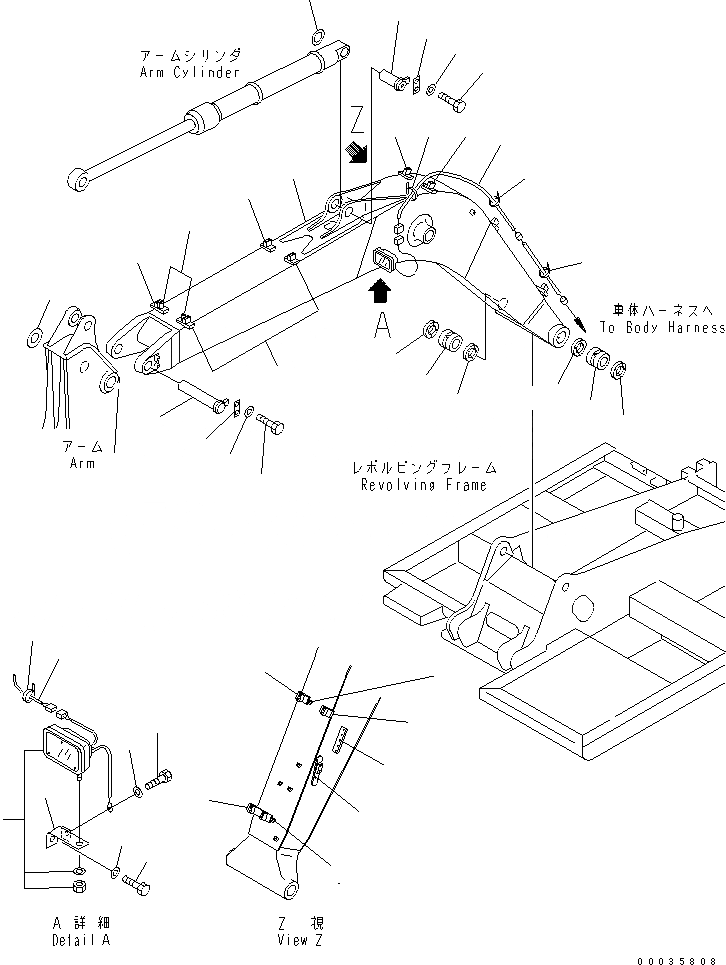

Запчасти Komatsu PC120LC-6E0 СТРЕЛА (СТРЕЛА¤ РАБОЧ. ОСВЕЩЕНИЕ И ПАЛЕЦ) ( ACTUATER НАВЕСН. ОБОРУД) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$2

203-70-01420

BOOM ASS'Y

1

BOOM

2

203-62-64322

BRACKET (WELDED)

3

281-35-11810

SEAT (WELDED)

4

203-70-51221

SEAT (WELDED)

5

203-70-61780

PLATE (WELDED)

6

203-70-61C60

SEAT (WELDED)

7

203-70-51260

SEAT (WELDED)

8

203-70-61310

PLATE (WELDED)

9

203-70-61C60

SEAT (WELDED)

10

203-70-51221

SEAT (WELDED)

11

203-70-61790

PLATE (WELDED)

12

203-70-66110

BUSHING

13

07145-00070

SEAL,DUST

14

07145-00070

SEAL,DUST

15

20Y-06-25310

WORKING LAMP ASS'Y

15

421-06-23330

BULB, 70W

16

20Y-06-21551

BRACKET

17

01010-81225

BOLT

18

01643-31232

WASHER

19

203-06-57230

WIRE

20

08034-40521

BAND

20

203-06-56570

BAND

21

08034-20414

BAND

22

01010-81230

BOLT

23

01643-31232

WASHER

24

202-70-61210

PIN

25

205-70-66580

PLATE

26

01010-81230

BOLT

27

01643-31232

WASHER

28

20U-70-31340

SPACER, 1.0MM

28

20U-70-31330

SPACER, 0.5MM

29

203-70-42121

PIN

30

205-70-66580

PLATE

31

01010-81230

BOLT

32

01643-31232

WASHER

33

203-70-41461

SPACER
