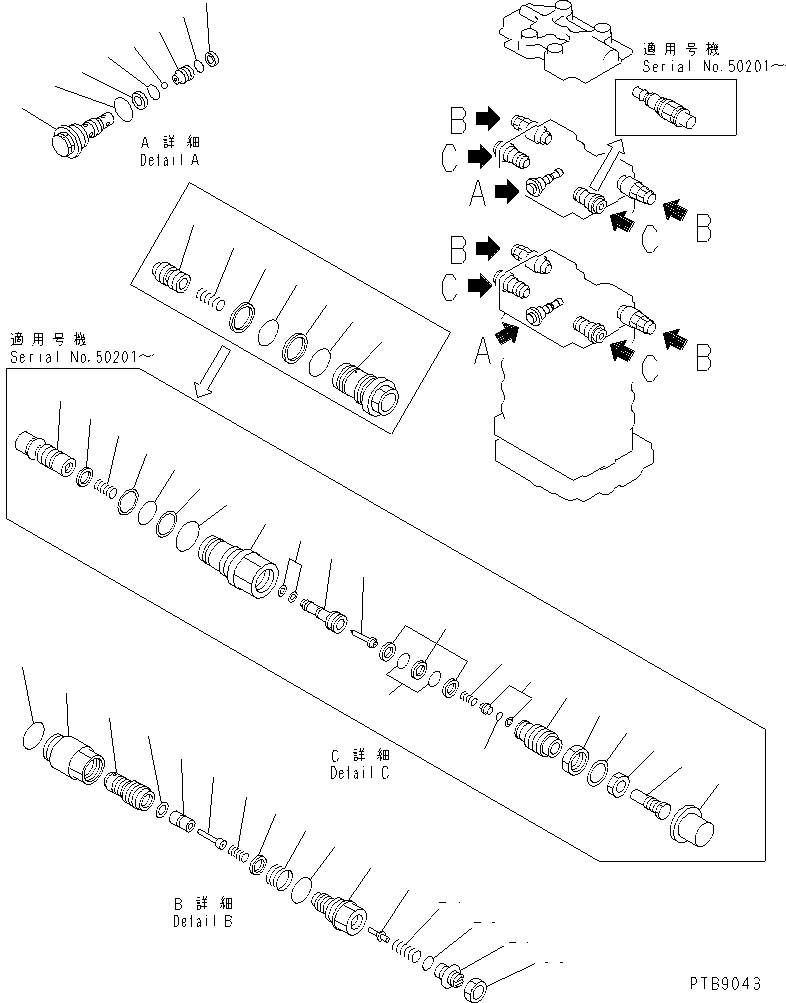

Запчасти Komatsu PC120-6Z ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№77-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-38-11105
CONTROL VALVE
|1
723-38-11104
CONTROL VALVE
|1
723-38-11102
CONTROL VALVE
|1
723-30-66200
VALVE ASS'Y
1
PLUG
2
SEAT
3
BALL
4
07002-12434
O-RING
5
07000-12012
O-RING
6
07001-02012
RING,BACK-UP
7
07000-12010
O-RING
8
07001-02010
RING
|9
723-36-40100
VALVE ASS'Y
9
PISTON SUB ASS'Y
10
SLEEVE
11
723-36-41920
SPRING
12
700-80-61260
O-RING
13
700-80-61430
RING
14
07002-13034
O-RING
|15
709-70-74600
VALVE ASS'Y,SUCTION AND SAFETY
15
709-70-71112
SLEEVE
16
SLEEVE
17
POPPET
18
PISTON
19
PLUG
20
POPPET
21
SCREW
22
709-70-71210
SPRING
23
709-70-71220
SPRING
24
SPRING
25
SEAL
26
SEAL
27
709-25-11390
O-RING
28
07002-02434
O-RING
29
O-RING
30
NUT
|31
723-36-48100
VALVE ASS'Y
31
SLEEVE
32
VALVE
33
SEAT
34
POPPET
35
PLUG
36
SCREW
37
NUT
38
NUT
39
SPRING
40
SPRING
41
PLATE
42
CAP
43
SEAL
44
SEAL
45
O-RING
46
RING
47
O-RING
48
O-RING
49
RING
50
O-RING
51
RING,BACK-UP
Выбрано товаров: 58
