Запчасти Komatsu PC120-6Z ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№77-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

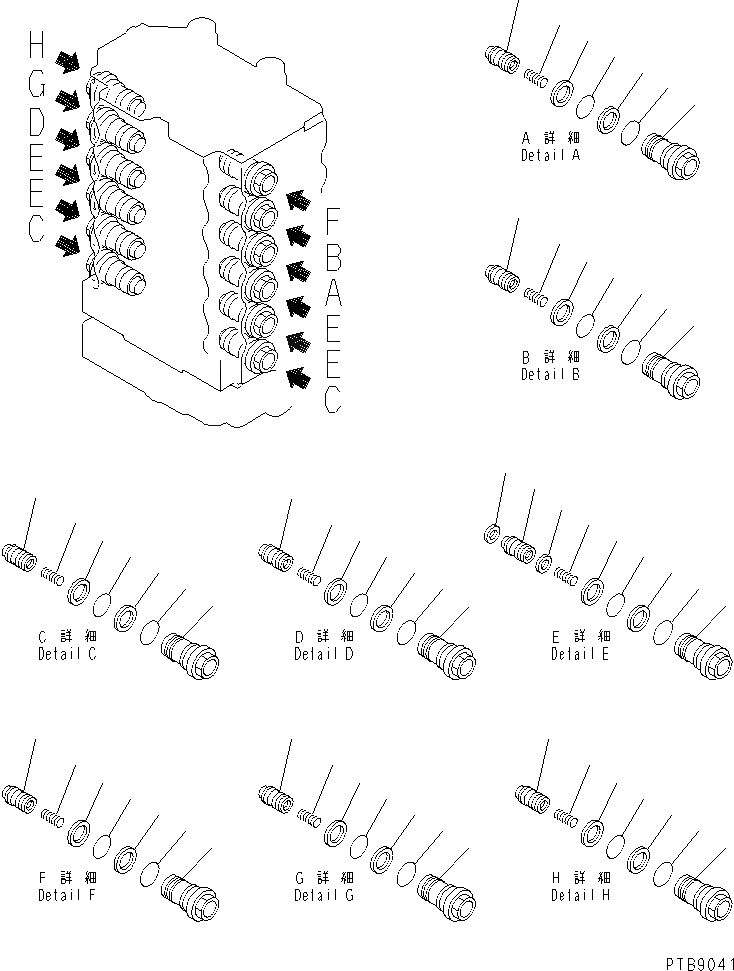

Схема запчастей Komatsu PC120-6Z - ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№77-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
17
18
19
20
21
22
23
23
24
25
26
26
27
28
29
30
30
31
32
33
34
35
36
36
37
38
39
40
41
42
42
43
44
45
46
47
48
48
49

Артикул

Название

Примечание

Количество

|1

723-38-11105

CONTROL VALVE

|1

723-38-11104

CONTROL VALVE

|1

723-38-11102

CONTROL VALVE

|1

723-36-40100

VALVE ASS'Y

1

PISTON SUB ASS'Y

2

SLEEVE

3

723-36-41920

SPRING

4

700-80-61260

O-RING

5

700-80-61430

RING

6

07002-13034

O-RING

|7

723-36-41100

VALVE ASS'Y

7

PISTON SUB ASS'Y

8

SLEEVE

9

723-36-41920

SPRING

10

700-80-61260

O-RING

11

700-80-61430

RING

12

07002-13034

O-RING

|13

723-36-41200

VALVE ASS'Y

13

PISTON SUB ASS'Y

14

SLEEVE

15

723-36-41920

SPRING

16

700-80-61260

O-RING

17

700-80-61430

RING

18

07002-13034

O-RING

|19

723-36-42101

VALVE ASS'Y

|19

723-36-42100

VALVE ASS'Y

19

PISTON SUB ASS'Y

|19

PISTON SUB ASS'Y

20

SLEEVE

21

723-36-41920

SPRING

22

700-80-61260

O-RING

23

700-80-61430

RING

24

07002-13034

O-RING

|25

723-36-40301

VALVE ASS'Y

25

PISTON

26

SEAL

27

SLEEVE

28

723-36-41930

SPRING

29

700-80-61260

O-RING

30

700-80-61430

RING

31

07002-13034

O-RING

|32

723-36-41400

VALVE ASS'Y

|32

723-36-40400

VALVE ASS'Y

|32

723-36-40100

VALVE ASS'Y

32

PISTON SUB ASS'Y

|32

PISTON SUB ASS'Y

33

SLEEVE

|33

SLEEVE

34

723-36-41960

SPRING

|34

723-36-41920

SPRING

35

700-80-61260

O-RING

36

700-80-61430

RING

37

07002-13034

O-RING

|38

723-36-42401

VALVE ASS'Y

|38

723-36-42400

VALVE ASS'Y

|38

723-36-42100

VALVE ASS'Y

38

PISTON SUB ASS'Y

|38

PISTON SUB ASS'Y

39

SLEEVE

40

723-36-41960

SPRING

|40

723-36-41920

SPRING

41

700-80-61260

O-RING

42

700-80-61430

RING

43

07002-13034

O-RING

|44

723-36-43100

VALVE ASS'Y

|44

723-36-40100

VALVE ASS'Y

44

PISTON SUB ASS'Y

|44

PISTON SUB ASS'Y

45

SLEEVE

|45

SLEEVE

46

723-36-41920

SPRING

47

700-80-61260

O-RING

48

700-80-61430

RING

49

07002-13034

O-RING

Выбрано товаров: 74
