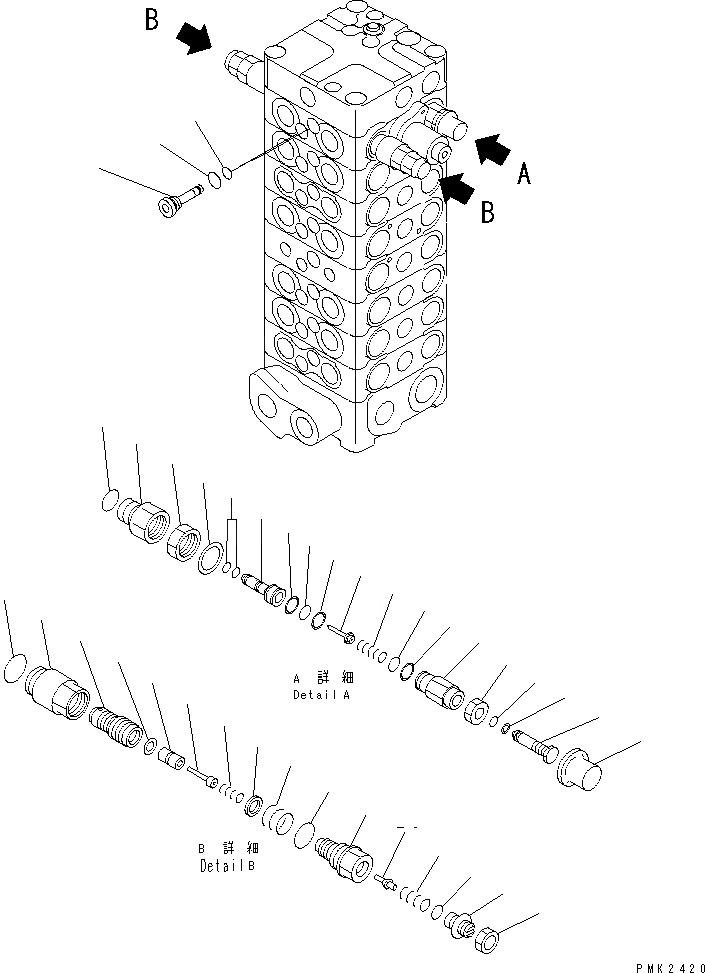

Запчасти Komatsu PC120-6Z ОСНОВН. КЛАПАН (8-КЛАПАН) (/)(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$9

723-58-11408

CONTROL VALVE

|$10

723-58-11407

CONTROL VALVE

|$11

723-58-11406

CONTROL VALVE

|$12

723-58-11405

CONTROL VALVE

|$13

723-58-11404

CONTROL VALVE

|$14

723-58-11403

CONTROL VALVE

|$15

723-58-11402

CONTROL VALVE

|$16

723-58-11401

CONTROL VALVE

|$17

723-58-11400

CONTROL VALVE

|$19

723-51-01301

VALVE ASS'Y

|$20

723-51-01300

VALVE ASS'Y

|$21

723-50-42103

VALVE ASS'Y

|$22

723-50-42100

VALVE ASS'Y

1

SLEEVE

1

SLEEVE

2

07000-13024

O-RING

3

SEAT

3

SEAT

4

SEAL

4

SEAL

5

POPPET

6

SPRING

7

PLUG

7

PLUG

8

O-RING

9

RING

10

SCREW

11

O-RING

12

RING,BACK-UP

13

NUT

13

NUT

14

PLATE

14

PLATE

15

NUT

16

CAP

17

723-56-31640

PLUG

18

07002-11623

O-RING

19

07000-11008

O-RING

|$48

709-70-74600

VALVE ASS'Y,SUCTION AND SAFETY

20

SLEEVE

21

SLEEVE

22

POPPET

23

PISTON

24

PLUG

25

POPPET

26

SCREW

27

SPRING

28

SPRING

29

SPRING

30

SEAL

31

SEAL

32

709-25-11390

O-RING

33

O-RING

34

O-RING

35

NUT
