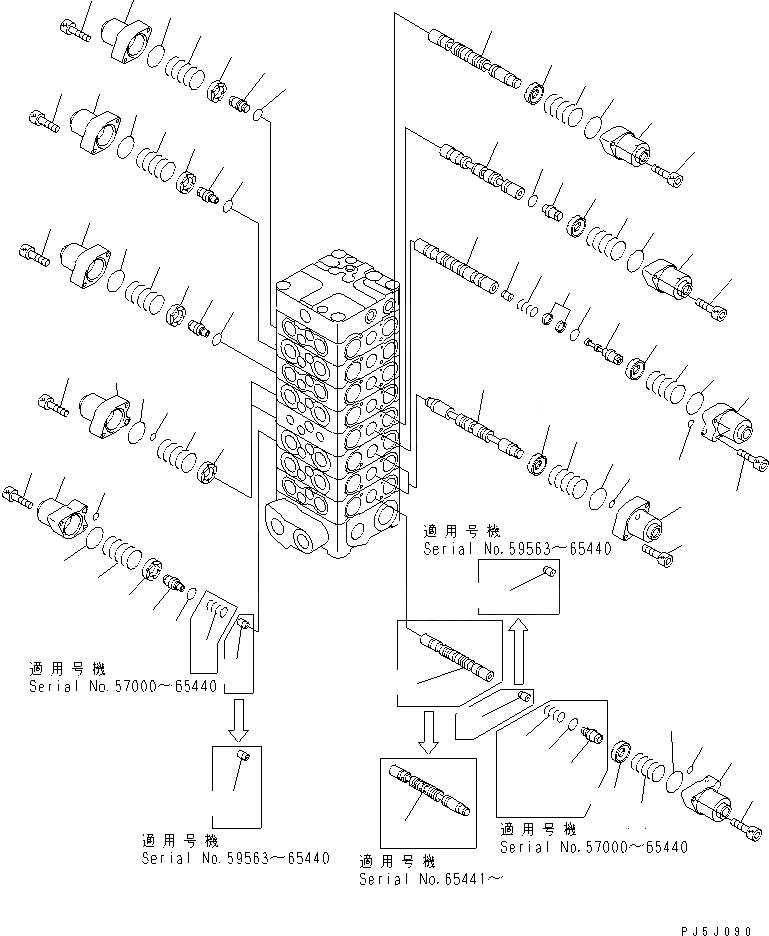

Запчасти Komatsu PC120-6Z ОСНОВН. КЛАПАН (8-КЛАПАН) (/)(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$9

723-58-11408

CONTROL VALVE

|$10

723-58-11407

CONTROL VALVE

|$11

723-58-11406

CONTROL VALVE

|$12

723-58-11405

CONTROL VALVE

|$13

723-58-11404

CONTROL VALVE

|$14

723-58-11403

CONTROL VALVE

|$15

723-58-11402

CONTROL VALVE

|$16

723-58-11401

CONTROL VALVE

|$17

723-58-11400

CONTROL VALVE

|$19

BODY GROUP

|$20

BODY GROUP

|$21

BODY GROUP

|$22

BODY GROUP

|$23

BODY GROUP

|$24

BODY GROUP

|$25

BODY GROUP

1

SPOOL

1

SPOOL

1

SPOOL

2

SPOOL

3

SPOOL

3

SPOOL

4

SPOOL

4

SPOOL

4

SPOOL

5

SPOOL

5

SPOOL

6

VALVE

6

VALVE

6A

VALVE

7

SPRING

7

SPRING

8

PLUG

8

PLUG

9

PLUG

10

PLUG

11

07002-11223

O-RING

11

07002-11223

O-RING

12

SEAL

13

723-56-31211

RETAINER

13

723-56-31210

RETAINER

14

723-36-14120

SPRING

15

723-36-14110

SPRING

16

723-56-31520

CASE

17

723-56-31530

CASE

18

723-56-31510

CASE

19

702-21-55450

O-RING

20

07000-11006

O-RING

21

01252-60630

BOLT
