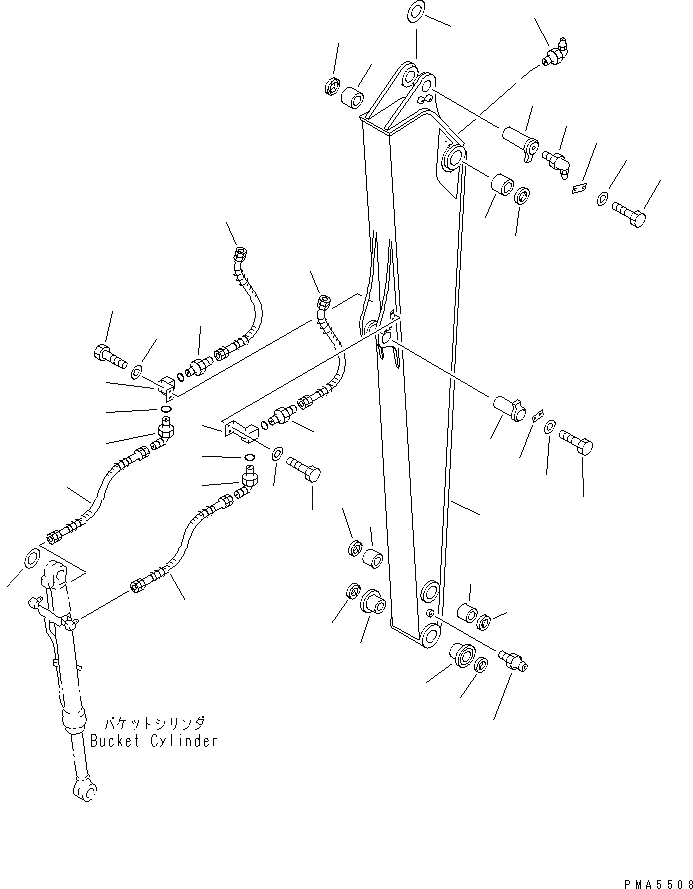

Запчасти Komatsu PC120-6Z УДЛИНН. РУКОЯТЬ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$3

203-943-0061

LONG ARM ASS'Y

|$4

203-943-0060

LONG ARM ASS'Y

1

ARM

1

ARM

2

203-70-56130

BUSHING

3

203-70-42182

BUSHING

4

203-70-56150

BUSHING

5

07020-00900

FITTING,GREASE

6

07020-00000

FITTING,GREASE

7

07096-20508

HOSE

8

07096-20408

HOSE

9

203-943-5620

ELBOW,L.H.

10

203-943-5130

ELBOW,R.H.

11

01010-81020

BOLT

11

01010-51020

BOLT

12

01643-31032

WASHER

13

07235-10422

ELBOW

14

07230-20422

UNION

15

07230-20522

UNION

16

07235-10522

ELBOW

17

07002-22034

O-RING

18

07002-22434

O-RING

19

07096-20414

HOSE

20

07096-20514

HOSE

21

203-70-42121

PIN

22

205-70-66580

PLATE

22

203-46-56270

PLATE

23

01010-81230

BOLT

23

01010-51230

BOLT

24

01643-31232

WASHER

25

07020-00675

FITTING,GREASE

26

21Y-70-14830

SPACER, 1.0MM

26

203-70-41460

SPACER, 1.0MM

26

203-70-24170

SPACER, 1.0MM

26

21Y-70-14840

SPACER, 2.0MM

26

203-70-41470

SPACER, 2.0MM

26

203-70-41430

SPACER, 2.0MM

27

202-70-52121

PIN

28

21Y-70-14710

SPACER, 1.0MM

28

202-70-48460

SPACER, 1.0MM

29

205-70-66580

PLATE

29

203-46-56270

PLATE

30

01010-81230

BOLT

30

01010-51230

BOLT

31

01643-31232

WASHER

32

07145-00070

SEAL,DUST

33

21W-70-41440

SEAL

33

203-70-33210

SEAL,DUST
