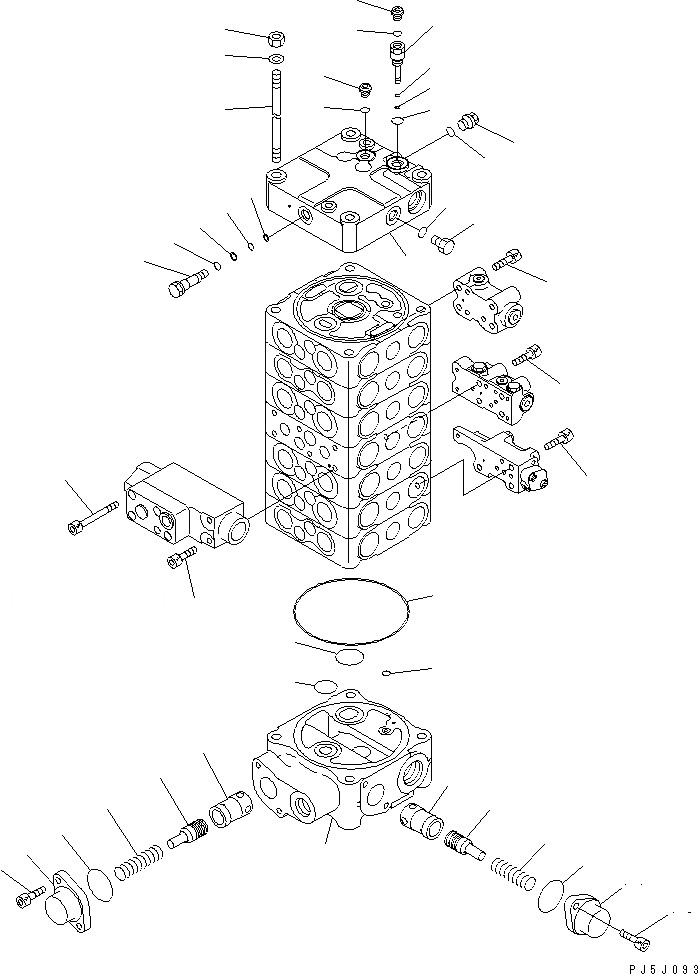

Запчасти Komatsu PC120-6Z ОСНОВН. КЛАПАН (7-КЛАПАН) (/) (ДЛЯ ПОВОРОТН. РУКОЯТЬ)(№977-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$6

723-57-11505

CONTROL VALVE

|$7

723-57-11504

CONTROL VALVE

|$8

723-57-11503

CONTROL VALVE

|$9

723-57-11502

CONTROL VALVE

|$10

723-57-11501

CONTROL VALVE

|$11

723-57-11500

CONTROL VALVE

|$13

BLOCK GROUP

1

BLOCK

2

144-14-54610

O-RING

3

723-56-31730

O-RING

4

702-75-11520

O-RING

5

07000-11008

O-RING

6

SLEEVE

7

PISTON

8

723-36-15340

SPRING

9

PISTON

10

723-36-15240

SPRING

11

723-36-15250

CASE

12

07000-13042

O-RING

13

01252-60820

BOLT

|$27

COVER GROUP

14

COVER

15

723-50-11311

PLUG

16

07000-11004

O-RING

17

07001-01004

RING

18

07002-11423

O-RING

19

723-26-15190

PLUG

20

07000-11007

O-RING

21

07001-01007

RING,BACK-UP

22

07000-11009

O-RING

23

07001-01009

RING,BACK-UP

24

708-8E-16160

PLUG

25

07002-11023

O-RING

26

07040-11409

PLUG

27

706-73-71450

PLUG

28

07002-11423

O-RING

29

723-50-11170

STUD

30

01643-31232

WASHER

31

01580-11210

NUT

32

01252-60850

BOLT

33

708-25-19160

BOLT

34

01252-60865

BOLT
