Запчасти Komatsu PC120-6S ОСНОВН. КЛАПАН (-АКТУАТОР) (/) (БЕЗ НАВЕСН. ОБОРУД-Я)(№-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

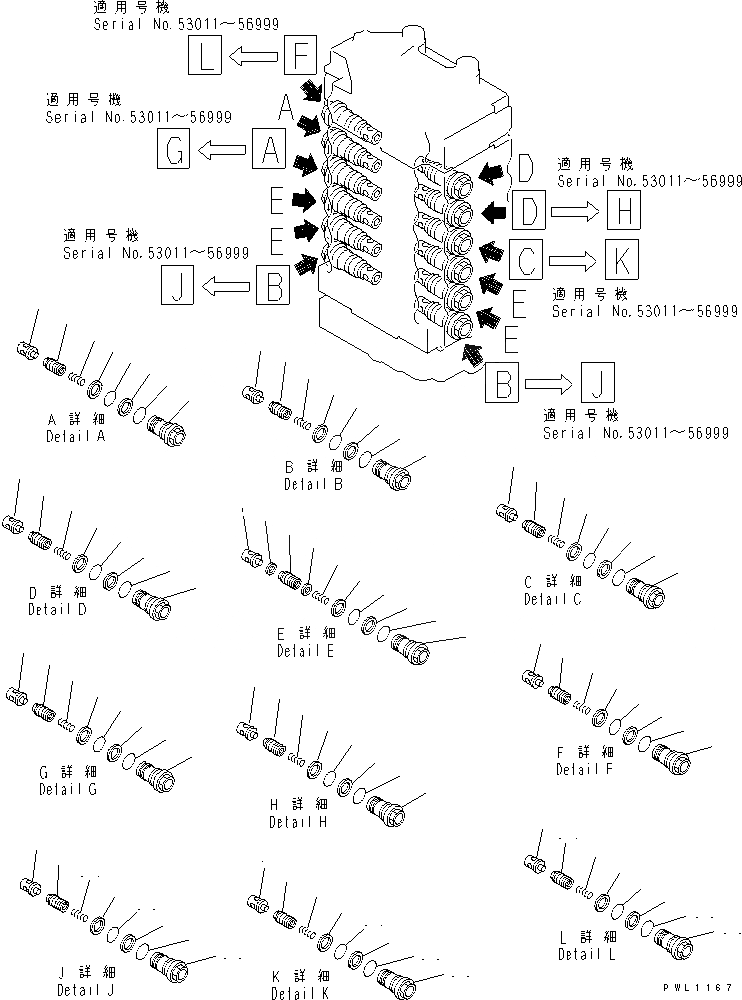

Схема запчастей Komatsu PC120-6S - ОСНОВН. КЛАПАН (-АКТУАТОР) (/) (БЕЗ НАВЕСН. ОБОРУД-Я)(№-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
20
21
22
23
24
25
25
26
27
28
28
29
30
31
32
32
33
34
35
36
37
38
38
39
40
41
42
43
44
44
45
46
47
48
49
50
50
51
52
53
54
55
56
56
57
58
59
60
61
62
62
63
64
65
66
67
68
68
69

Артикул

Название

Примечание

Количество

|1

723-37-12400

CONTROL VALVE

|1

723-37-10400

CONTROL VALVE

1

723-36-41110

VALVE

2

723-36-41121

VALVE

|3

723-36-42401

VALVE ASS'Y

|3

723-36-42401

VALVE ASS'Y

3

PISTON SUB ASS'Y

4

SLEEVE

5

SPRING

6

700-80-61260

O-RING

7

700-80-61430

RING

8

07002-13034

O-RING

|9

723-36-41500

VALVE ASS'Y

9

PISTON SUB ASS'Y

10

SLEEVE

11

SPRING

12

700-80-61260

O-RING

13

700-80-61430

RING

14

07002-13034

O-RING

|15

723-36-40400

VALVE ASS'Y

15

PISTON SUB ASS'Y

16

SLEEVE

17

SPRING

18

700-80-61260

O-RING

19

700-80-61430

RING

20

07002-13034

O-RING

|21

723-36-41400

VALVE ASS'Y

|21

723-36-41400

VALVE ASS'Y

21

PISTON SUB ASS'Y

22

SLEEVE

23

SPRING

24

700-80-61260

O-RING

25

700-80-61430

RING

26

07002-13034

O-RING

|27

723-36-43301

VALVE ASS'Y

27

PISTON

28

SEAL

29

SLEEVE

30

SPRING

31

700-80-61260

O-RING

32

700-80-61430

RING

33

07002-13034

O-RING

|34

723-36-43400

VALVE ASS'Y

34

PISTON SUB ASS'Y

35

SLEEVE

36

SPRING

37

700-80-61260

O-RING

38

700-80-61430

RING

39

07002-13034

O-RING

|40

723-36-42101

VALVE ASS'Y

40

PISTON SUB ASS'Y

41

SLEEVE

42

SPRING

43

700-80-61260

O-RING

44

700-80-61430

RING

45

07002-13034

O-RING

|46

723-36-41100

VALVE ASS'Y

46

PISTON SUB ASS'Y

47

SLEEVE

48

SPRING

49

700-80-61260

O-RING

50

700-80-61430

RING

51

07002-13034

O-RING

|52

723-36-41200

VALVE ASS'Y

52

PISTON SUB ASS'Y

53

SLEEVE

54

SPRING

55

700-80-61260

O-RING

56

700-80-61430

RING

57

07002-13034

O-RING

|58

723-36-40100

VALVE ASS'Y

58

PISTON SUB ASS'Y

59

SLEEVE

60

SPRING

61

700-80-61260

O-RING

62

700-80-61430

RING

63

07002-13034

O-RING

|64

723-36-43100

VALVE ASS'Y

64

PISTON SUB ASS'Y

65

SLEEVE

66

SPRING

67

700-80-61260

O-RING

68

700-80-61430

RING

69

07002-13034

O-RING

Выбрано товаров: 84
