Запчасти Komatsu PC120-6S ОСНОВН. КЛАПАН (9-КЛАПАН) (/)(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

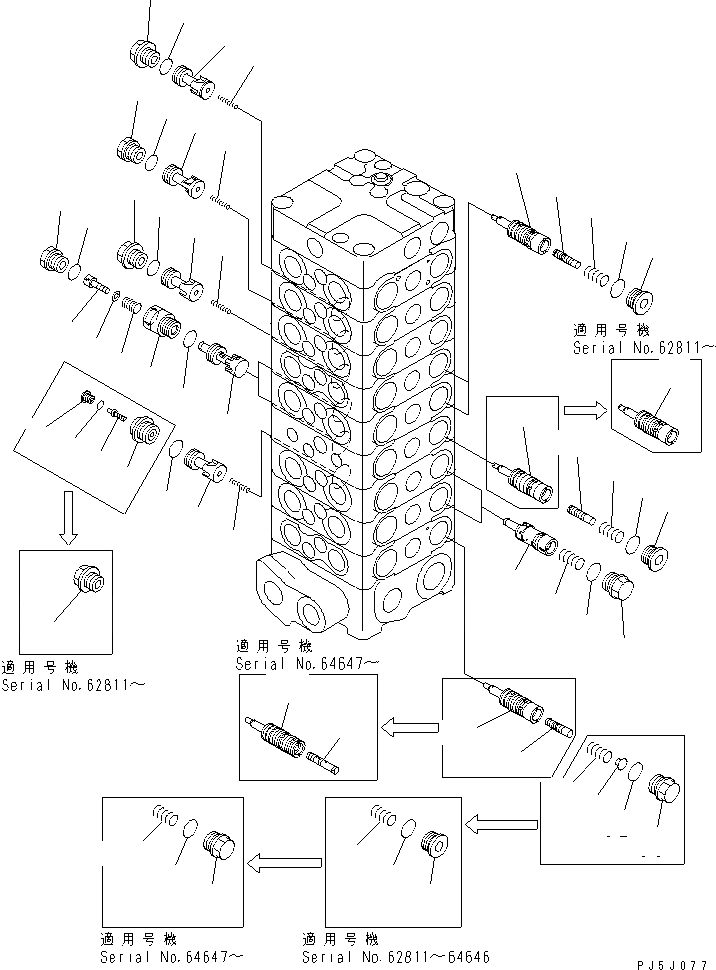

Схема запчастей Komatsu PC120-6S - ОСНОВН. КЛАПАН (9-КЛАПАН) (/)(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
17
17
17
18
18
18
19
20
20
21
21
21
21A
22
23
23A
24
25
26
27
27
27
27A
28
28
29
29
29
29A
30
30
31
32
32
32
32
32
32

Артикул

Название

Примечание

Количество

|1

723-59-12305

CONTROL VALVE

|1

723-59-12304

CONTROL VALVE

|1

723-59-12303

CONTROL VALVE

|1

723-59-12302

CONTROL VALVE

|1

723-59-12301

CONTROL VALVE

|1

723-59-12300

CONTROL VALVE

|1

723-59-11303

CONTROL VALVE

|1

723-59-11302

CONTROL VALVE

|1

723-59-11301

CONTROL VALVE

|1

723-59-11300

CONTROL VALVE

|1

BODY GROUP

|1

BODY GROUP

|1

BODY GROUP

|1

BODY GROUP

|1

BODY GROUP

|1

BODY GROUP

|1

BODY GROUP

1

VALVE

|1

VALVE

2

VALVE

|2

VALVE

|2

VALVE

3

VALVE

|3

VALVE

4

VALVE

|4

VALVE

|4

VALVE

5

VALVE

6

PISTON

7

723-56-41810

PLUG

8

723-11-18190

PLUG

9

07002-11023

O-RING

10

723-56-41721

SPRING

11

01643-30623

WASHER

12

01252-60610

BOLT

13

723-56-41821

PLUG

14

723-56-41830

PLUG

15

07002-12034

O-RING

16

723-56-41710

SPRING

17

723-56-41840

PLUG

|17

723-56-41840

PLUG

18

07000-13024

O-RING

19

723-26-15230

PLUG

20

07002-12434

O-RING

21

VALVE

|21

VALVE

|21

VALVE

21A

VALVE

22

VALVE

23

VALVE SUB ASS'Y

|23

VALVE SUB ASS'Y

23A

VALVE SUB ASS'Y

24

PISTON

|24

PISTON

25

PISTON

|25

PISTON

26

PISTON

27

723-56-41730

SPRING

|27

723-56-41730

SPRING

|27

723-56-41730

SPRING

27A

723-56-41760

SPRING

28

723-56-41740

SPRING

|28

723-56-41740

SPRING

29

723-26-15230

PLUG

|29

723-26-15230

PLUG

|29

723-26-15230

PLUG

29A

723-56-41880

PLUG

30

723-56-41850

PLUG

|30

723-56-41850

PLUG

31

723-56-41920

RETAINER

32

07002-12434

O-RING

Выбрано товаров: 71
