Запчасти Komatsu PC120-6S ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

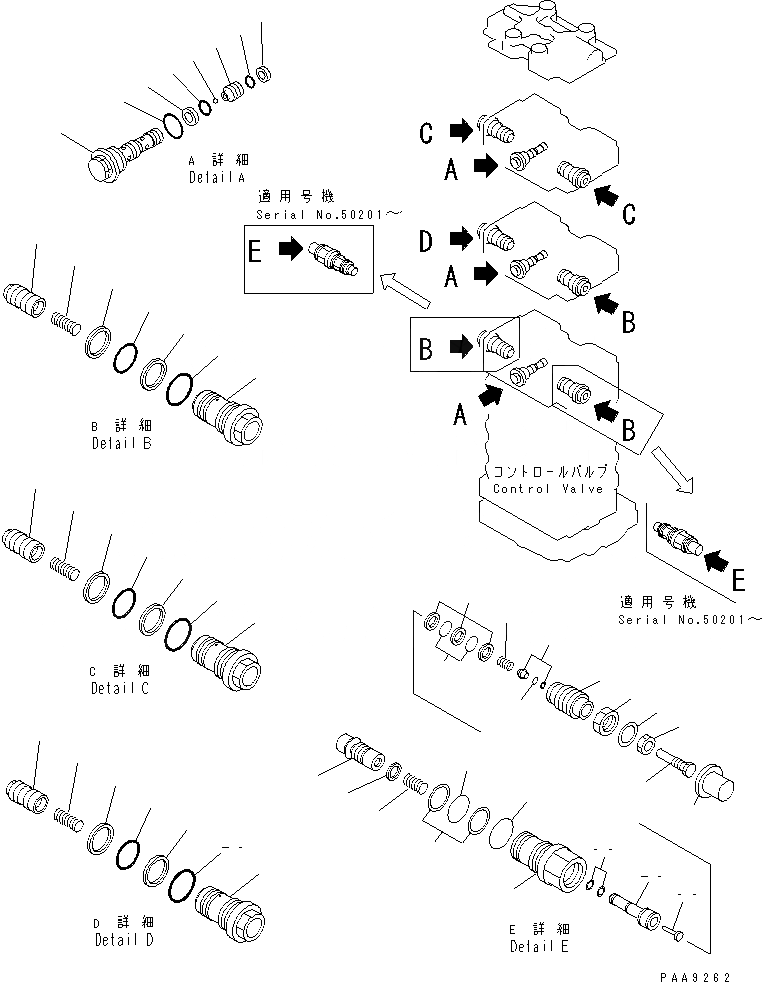

Схема запчастей Komatsu PC120-6S - ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

Артикул

Название

Примечание

Количество

|1

723-39-12104

CONTROL VALVE

|1

723-39-12103

CONTROL VALVE

|1

723-39-12101

CONTROL VALVE

|1

723-39-12100

CONTROL VALVE

|1

723-30-66200

VALVE ASS'Y

1

PLUG

2

SEAT

3

BALL

4

07002-12434

O-RING

5

07000-12012

O-RING

6

07001-02012

RING

7

07000-12010

O-RING

8

07001-02010

RING

|9

723-36-40100

VALVE ASS'Y

|9

723-36-40100

VALVE ASS'Y

9

PISTON SUB ASS'Y

10

SLEEVE

11

SPRING

12

700-80-61260

O-RING

13

700-80-61430

RING

14

07002-13034

O-RING

|15

723-36-42101

VALVE ASS'Y

|15

723-36-42100

VALVE ASS'Y

15

PISTON SUB ASS'Y

|15

PISTON SUB ASS'Y

16

SLEEVE

17

SPRING

18

700-80-61260

O-RING

19

700-80-61430

RING

20

07002-13034

O-RING

|21

723-36-41100

VALVE ASS'Y

21

PISTON SUB ASS'Y

22

SLEEVE

23

SPRING

24

700-80-61260

O-RING

25

700-80-61430

RING

26

07002-13034

O-RING

|27

723-36-48100

VALVE ASS'Y

27

SLEEVE

28

VALVE

29

SEAT

30

POPPET

31

PLUG

32

SCREW

33

NUT

34

NUT

35

SPRING

36

SPRING

37

PLATE

38

CAP

39

SEAL

40

SEAL

41

O-RING

42

RING

43

O-RING

44

O-RING

45

RING

46

O-RING

47

RING,BACK-UP

Выбрано товаров: 59
