Запчасти Komatsu PC120-6S ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

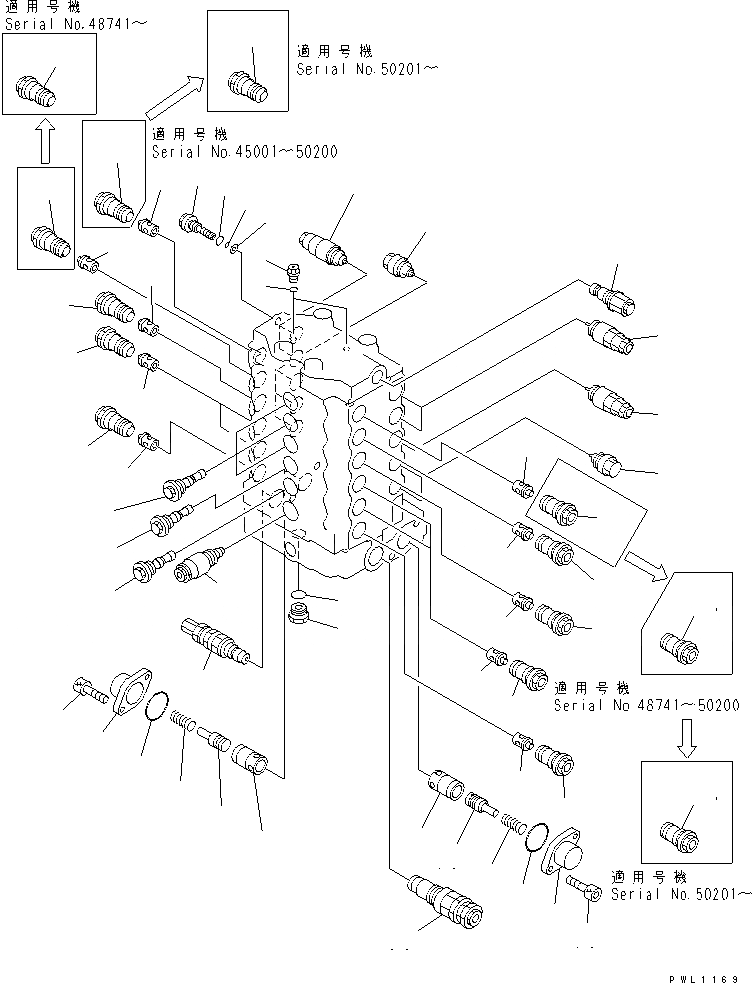

Схема запчастей Komatsu PC120-6S - ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
14
15
15
16
16
17
17
17
17
17
17
17
17
18
18
19
20
21
22
23
23
23
23A
24
25
25
25A
26
26
26A
27
27
27A
28
29
30
31
31
32
33
33

Артикул

Название

Примечание

Количество

|1

723-38-12105

CONTROL VALVE

|1

723-38-12104

CONTROL VALVE

|1

723-38-12102

CONTROL VALVE

1

723-36-15151

PLUG

2

07000-11004

O-RING

3

07001-01004

RING

4

07002-11023

O-RING

5

07040-12412

PLUG

6

07002-02434

O-RING

7

708-8E-16160

PLUG

8

07002-11023

O-RING

9

723-36-15210

SLEEVE

10

723-36-15230

PISTON

11

723-36-15220

PISTON

12

723-36-15340

SPRING

13

723-36-15240

SPRING

14

723-36-15250

CASE

15

07000-03042

O-RING

16

01252-30820

BOLT

17

723-36-41110

VALVE

18

723-36-41121

VALVE

19

723-30-60100

VALVE ASS'Y

20

723-30-66100

VALVE ASS'Y

21

723-30-66200

VALVE ASS'Y

22

723-30-66400

VALVE ASS'Y

23

723-36-40100

VALVE ASS'Y

|23

723-36-40100

VALVE ASS'Y

|23

723-36-40100

VALVE ASS'Y

23A

723-36-40400

VALVE ASS'Y

24

723-36-41100

VALVE ASS'Y

25

723-36-41200

VALVE ASS'Y

25A

723-36-41400

VALVE ASS'Y

26

723-36-42101

VALVE ASS'Y

|26

723-36-42100

VALVE ASS'Y

|26

723-36-42100

VALVE ASS'Y

26A

723-36-42401

VALVE ASS'Y

|26A

723-36-42400

VALVE ASS'Y

27

723-36-43301

VALVE ASS'Y

27A

723-36-43100

VALVE ASS'Y

28

723-30-56100

VALVE ASS'Y

29

723-30-50101

RELIEF VALVE ASS'Y

30

723-30-90101

VALVE ASS'Y,RELIEF

31

709-70-74302

VALVE ASS'Y,SUCTION AND SAFETY

32

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

33

723-40-85100

VALVE ASS'Y,SUCTION

|33

709-20-81201

VALVE ASS'Y,SUCTION

Выбрано товаров: 46
