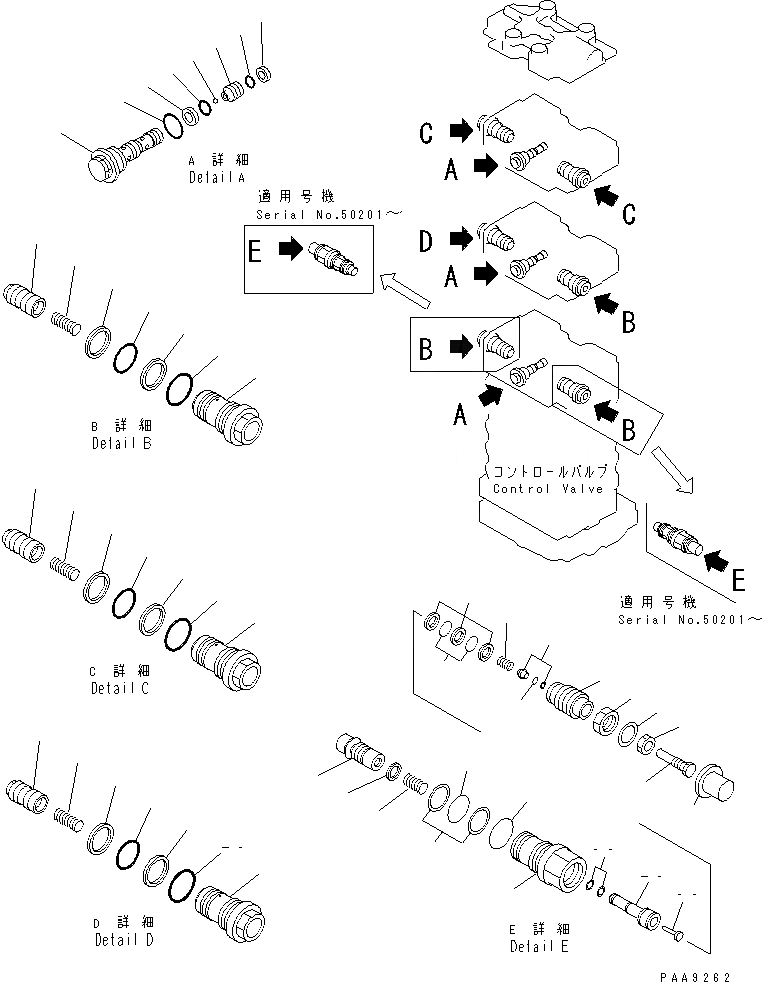

Запчасти Komatsu PC120-6J ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-39-12104
CONTROL VALVE
|1
723-39-12103
CONTROL VALVE
|1
723-39-12101
CONTROL VALVE
|1
723-39-12100
CONTROL VALVE
|1
723-30-66200
VALVE ASS'Y
1
PLUG
2
SEAT
3
BALL
4
07002-12434
O-RING
5
07000-12012
O-RING
6
07001-02012
RING
7
07000-12010
O-RING
8
07001-02010
RING
|9
723-36-40100
VALVE ASS'Y
|9
723-36-40100
VALVE ASS'Y
9
PISTON SUB ASS'Y
10
SLEEVE
11
SPRING
12
700-80-61260
O-RING
13
700-80-61430
RING
14
07002-13034
O-RING
|15
723-36-42101
VALVE ASS'Y
|15
723-36-42100
VALVE ASS'Y
15
PISTON SUB ASS'Y
|15
PISTON SUB ASS'Y
16
SLEEVE
17
SPRING
18
700-80-61260
O-RING
19
700-80-61430
RING
20
07002-13034
O-RING
|21
723-36-41100
VALVE ASS'Y
21
PISTON SUB ASS'Y
22
SLEEVE
23
SPRING
24
700-80-61260
O-RING
25
700-80-61430
RING
26
07002-13034
O-RING
|27
723-36-48100
VALVE ASS'Y
27
SLEEVE
28
VALVE
29
SEAT
30
POPPET
31
PLUG
32
SCREW
33
NUT
34
NUT
35
SPRING
36
SPRING
37
PLATE
38
CAP
39
SEAL
40
SEAL
41
O-RING
42
RING
43
O-RING
44
O-RING
45
RING
46
O-RING
47
RING,BACK-UP
Выбрано товаров: 59
