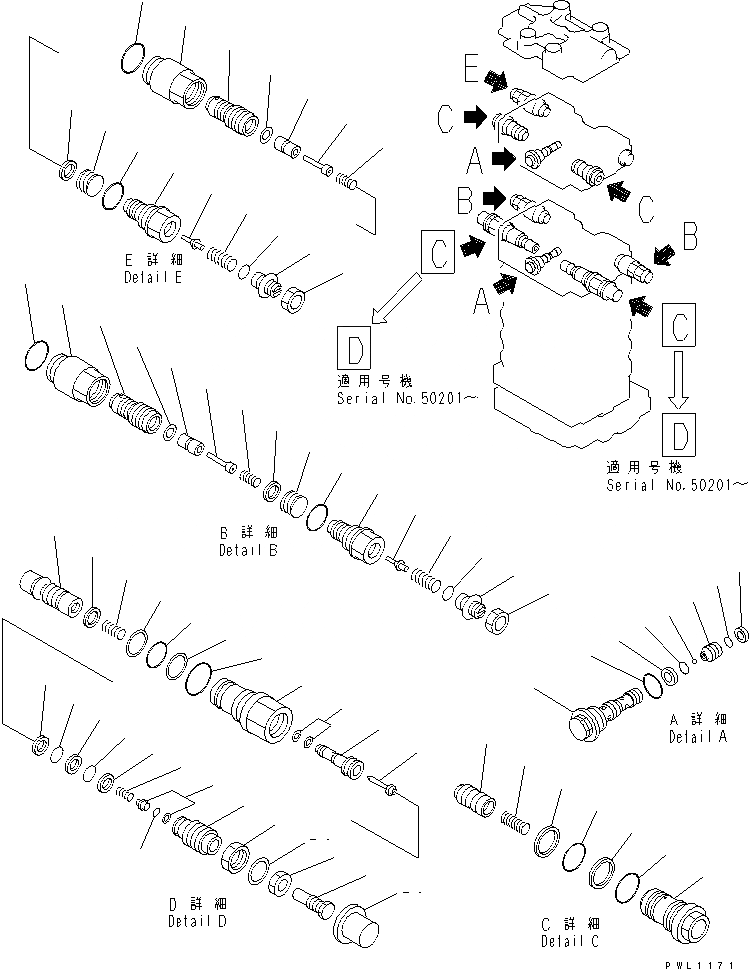

Запчасти Komatsu PC120-6J ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-38-12105
CONTROL VALVE
|1
723-38-12104
CONTROL VALVE
|1
723-38-12102
CONTROL VALVE
|1
723-30-66200
VALVE ASS'Y
1
PLUG
2
SEAT
3
BALL
4
07002-12434
O-RING
5
07000-12012
O-RING
6
07001-02012
RING
7
07000-12010
O-RING
8
07001-02010
RING
|9
723-36-40100
VALVE ASS'Y
|9
723-36-40100
VALVE ASS'Y
9
PISTON SUB ASS'Y
10
SLEEVE
11
SPRING
12
700-80-61260
O-RING
13
700-80-61430
RING
14
07002-13034
O-RING
|15
723-36-48100
VALVE ASS'Y
15
SLEEVE
16
VALVE
17
SEAT
18
POPPET
19
PLUG
20
SCREW
21
NUT
22
NUT
23
SPRING
24
SPRING
25
PLATE
26
CAP
27
SEAL
28
SEAL
29
O-RING
30
RING
31
O-RING
32
O-RING
33
RING
34
O-RING
35
RING,BACK-UP
|36
709-70-74600
VALVE ASS'Y,SUCTION AND SAFETY
36
SLEEVE
37
SLEEVE
38
POPPET
39
PISTON
40
PLUG
41
POPPET
42
SCREW
43
SPRING
44
SPRING
45
SPRING
46
SEAL
47
SEAL
48
709-25-11390
O-RING
49
O-RING
50
O-RING
51
NUT
|52
709-70-75600
VALVE ASS'Y,SUCTION AND SAFETY
52
SLEEVE
53
SLEEVE
54
POPPET
55
PISTON
56
PLUG
57
POPPET
58
SCREW
59
SPRING
60
SPRING
61
SPRING
62
SEAL
63
SEAL
64
O-RING
65
O-RING
66
O-RING
67
NUT
Выбрано товаров: 76
