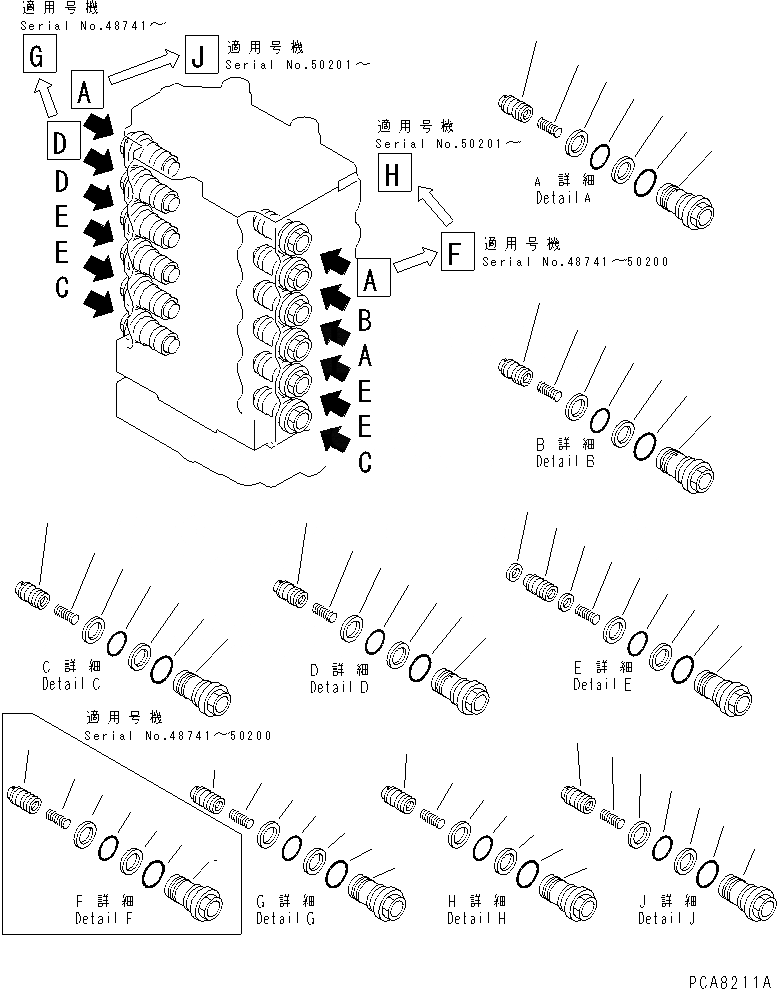

Запчасти Komatsu PC120-6H ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-38-12105
CONTROL VALVE
|1
723-38-12104
CONTROL VALVE
|1
723-38-12102
CONTROL VALVE
|$$4
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-41A0 TO Y1664-50A0.
|1
723-36-40100
VALVE ASS'Y
|1
723-36-40100
VALVE ASS'Y
|1
723-36-40100
VALVE ASS'Y
1
PISTON SUB ASS'Y
2
SLEEVE
3
SPRING
4
700-80-61260
O-RING
5
700-80-61430
RING
6
07002-13034
O-RING
|7
723-36-40400
VALVE ASS'Y
7
PISTON SUB ASS'Y
8
SLEEVE
9
SPRING
10
700-80-61260
O-RING
11
700-80-61430
RING
12
07002-13034
O-RING
|13
723-36-41100
VALVE ASS'Y
13
PISTON SUB ASS'Y
14
SLEEVE
15
SPRING
16
700-80-61260
O-RING
17
700-80-61430
RING
18
07002-13034
O-RING
|19
723-36-41200
VALVE ASS'Y
19
PISTON SUB ASS'Y
20
SLEEVE
21
SPRING
22
700-80-61260
O-RING
23
700-80-61430
RING
24
07002-13034
O-RING
|25
723-36-41400
VALVE ASS'Y
25
PISTON SUB ASS'Y
26
SLEEVE
27
SPRING
28
700-80-61260
O-RING
29
700-80-61430
RING
30
07002-13034
O-RING
|31
723-36-42101
VALVE ASS'Y
|31
723-36-42100
VALVE ASS'Y
|31
723-36-42100
VALVE ASS'Y
31
PISTON SUB ASS'Y
|31
PISTON SUB ASS'Y
32
SLEEVE
33
SPRING
34
700-80-61260
O-RING
35
700-80-61430
RING
36
07002-13034
O-RING
|37
723-36-42401
VALVE ASS'Y
|37
723-36-42400
VALVE ASS'Y
37
PISTON SUB ASS'Y
|37
PISTON SUB ASS'Y
38
SLEEVE
39
SPRING
40
700-80-61260
O-RING
41
700-80-61430
RING
42
07002-13034
O-RING
|43
723-36-43100
VALVE ASS'Y
43
PISTON SUB ASS'Y
44
SLEEVE
45
SPRING
46
700-80-61260
O-RING
47
700-80-61430
RING
48
07002-13034
O-RING
|49
723-36-43301
VALVE ASS'Y
49
PISTON
50
SEAL
51
SLEEVE
52
SPRING
53
700-80-61260
O-RING
54
700-80-61430
RING
55
07002-13034
O-RING
Выбрано товаров: 75
