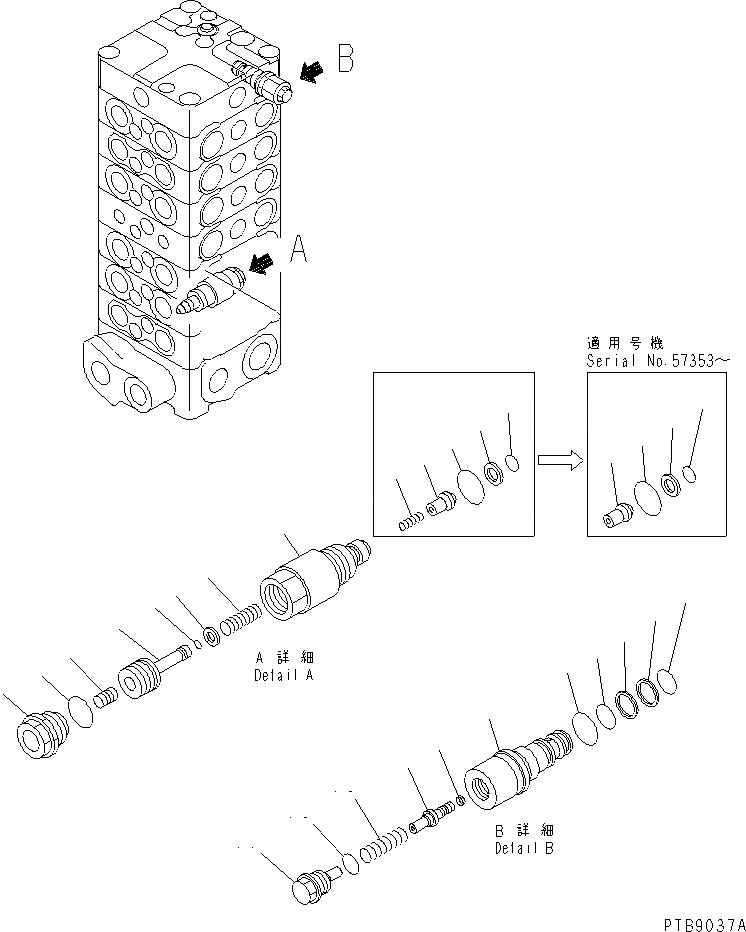

Запчасти Komatsu PC120-6H ОСНОВН. КЛАПАН (7-КЛАПАН) (8/)(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-57-12105

CONTROL VALVE

|1

723-57-12104

CONTROL VALVE

|1

723-57-12103

CONTROL VALVE

|1

723-57-12102

CONTROL VALVE

|1

723-57-12101

CONTROL VALVE

|1

723-57-12100

CONTROL VALVE

|1

723-57-11103

CONTROL VALVE

|1

723-57-11102

CONTROL VALVE

|1

723-57-11101

CONTROL VALVE

|1

723-57-11100

CONTROL VALVE

|$$11

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1663-01A0 TO Y1663-13A0.

|1

723-50-60200

VALVE ASS'Y

|1

723-30-60101

VALVE ASS'Y

1

SLEEVE

|1

SLEEVE

2

VALVE

|2

VALVE

3

PISTON

|3

PISTON

4

PISTON

5

SPRING

6

SPRING

7

PLUG

8

SEAL

9

O-RING

|9

O-RING

10

O-RING

11

709-25-11390

O-RING

12

07000-12012

O-RING

13

07001-02012

RING,BACK-UP

|14

723-50-55100

VALVE ASS'Y

14

SLEEVE

15

VALVE

16

SPRING

17

PLUG

18

RING

19

O-RING

20

07002-12434

O-RING

21

07000-12016

O-RING

22

07001-02016

RING,BACK-UP

23

07000-12014

O-RING

24

07001-02014

RING
