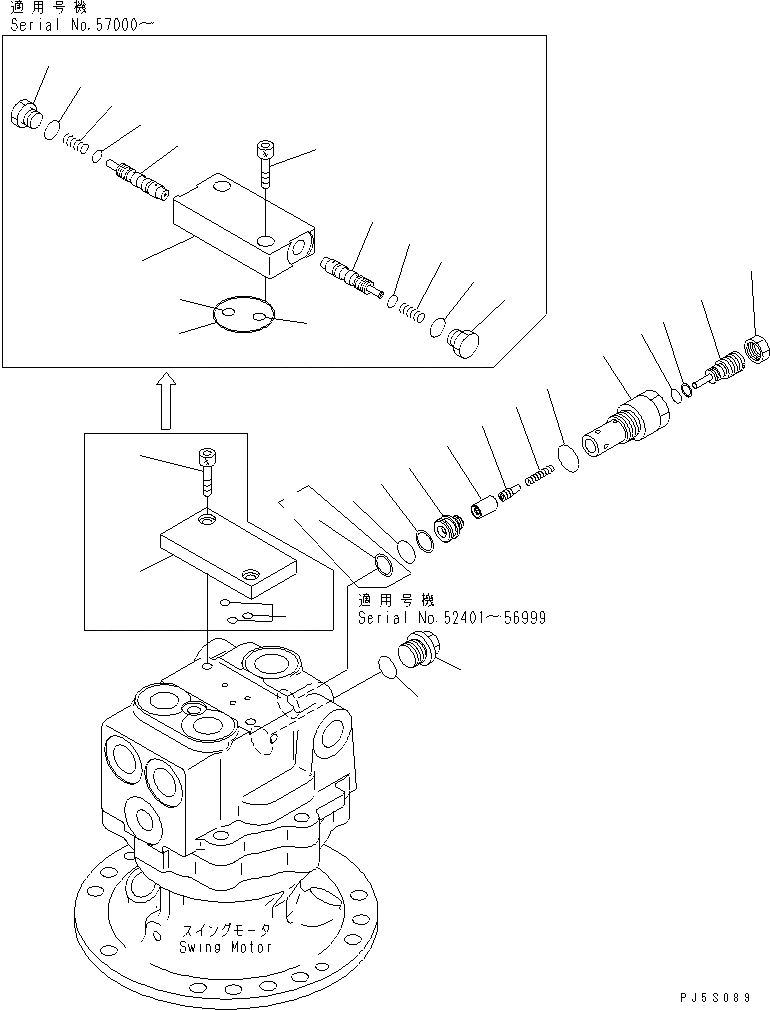

Запчасти Komatsu PC120-6H МОТОР ПОВОРОТА (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

706-73-01181

MOTOR ASS'Y

|1

706-73-01180

MOTOR ASS'Y

|1

706-73-01161

MOTOR ASS'Y

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0A AND Y1640-02A0 A.

|1

702-73-01520

VALVE ASS'Y,RELIEF

|1

702-73-01501

VALVE ASS'Y,RELIEF

1

SLEEVE

|1

SLEEVE

2

SEAT,VALVE

|2

SEAT,VALVE

3

VALVE

|3

VALVE

4

PISTON

|4

PISTON

5

SPRING

|5

SPRING

6

SCREW

|6

SCREW

7

O-RING

|7

O-RING

8

RING

|8

RING,BACK-UP

9

NUT

|9

NUT

10

723-60-22230

RING,BACK-UP

|10

723-60-22230

RING,BACK-UP

11

07000-F2016

O-RING

|11

07000-22016

O-RING

12

07002-12434

O-RING

13

706-77-72280

PLUG

14

07002-12034

O-RING

15

706-75-74920

PLATE

16

07000-11007

O-RING

17

01252-60825

BOLT

|18

702-15-73000

VALVE ASS'Y

|18

702-15-72000

VALVE ASS'Y

18

BODY

19

SPOOL

|19

SPOOL

20

SEAL

21

SPRING

22

PLUG

23

O-RING

24

07000-03042

O-RING

25

07000-11007

O-RING

26

01252-60825

BOLT
