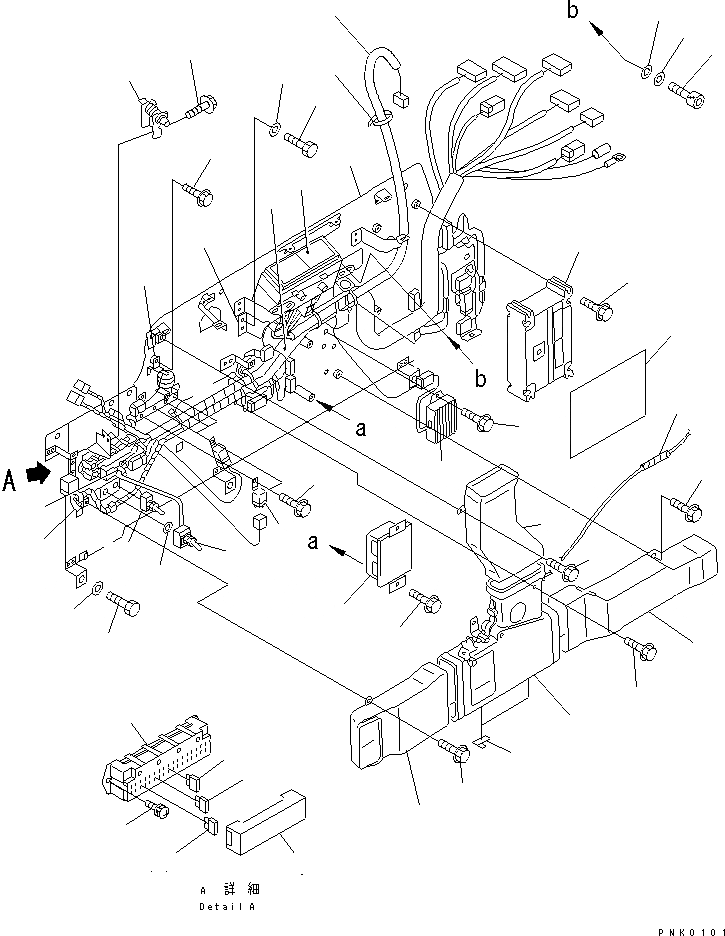

Запчасти Komatsu PC120-6H КАБИНА (ОСНОВ.)(№-89) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

207-06-61510

BASE

2

20Y-06-24121

SWITCH ASS'Y

|2

20Y-06-24120

SWITCH ASS'Y

3

01641-21223

WASHER

4

569-06-61960

RELAY

5

01435-00610

BOLT

6

20Y-06-22690

WIRING HARNESS

|6

20Y-06-21272

WIRING HARNESS

|6

20Y-06-21271

WIRING HARNESS

7

08041-01500

FUSE¤ 15A

|7

205-06-73180

FUSE¤ 15A

8

283-06-16110

BOX

9

195-Z11-2290

COVER

10

08041-01000

FUSE¤ 10A

|10

283-06-16190

FUSE¤ 10A

11

08041-02000

FUSE¤ 20A

|11

22W-06-13160

FUSE¤ 20A

12

20Y-06-24130

SWITCH

13

20Y-06-21460

CLIP

14

20Y-06-23960

CLIP

15

01023-10625

SCREW

16

20Y-979-2130

BOX ASS'Y,(SEE FIG. Y1979-61A0)

17

01435-01016

BOLT

18

20Y-979-2221

DUCT

19

01435-00610

BOLT

20

20Y-979-2231

DUCT

21

01435-00610

BOLT

22

20Y-979-2242

DUCT

23

01435-00610

BOLT

24

7861-94-3000

RESISTOR

|24

20Y-06-17220

RESISTOR

25

01435-00820

BOLT

26

203-06-56230

BUZZER ASS'Y

27

01435-00610

BOLT

28

7834-21-6002

CONTROLLER,GOVERNOR

|28

7834-21-6001

CONTROLLER,GOVERNOR

|28

7834-21-6000

CONTROLLER,GOVERNOR

|28

7834-23-3000

CONTROLLER,GOVERNOR

29

01435-00880

BOLT

30

20Y-06-24440

RELAY BOX ASS'Y,WIPER

31

01435-00630

BOLT

32

20Y-06-24220

SHEET

33

08051-00801

CLIP

34

20Y-06-23521

LOCK

35

01435-00820

BOLT

36

7834-87-2000

PANEL

37

20Y-06-24141

BRACKET

38

01252-40410

BOLT

39

01601-20410

WASHER

40

01641-20405

WASHER

41

01010-80614

BOLT

|41

01010-50614

BOLT

42

01643-30623

WASHER

43

20Y-06-21232

WIRING HARNESS

44

08034-00519

BAND

45

08017-30701

CONDUIT

46

01010-81020

BOLT

|46

01010-51020

BOLT

47

01643-31032

WASHER
