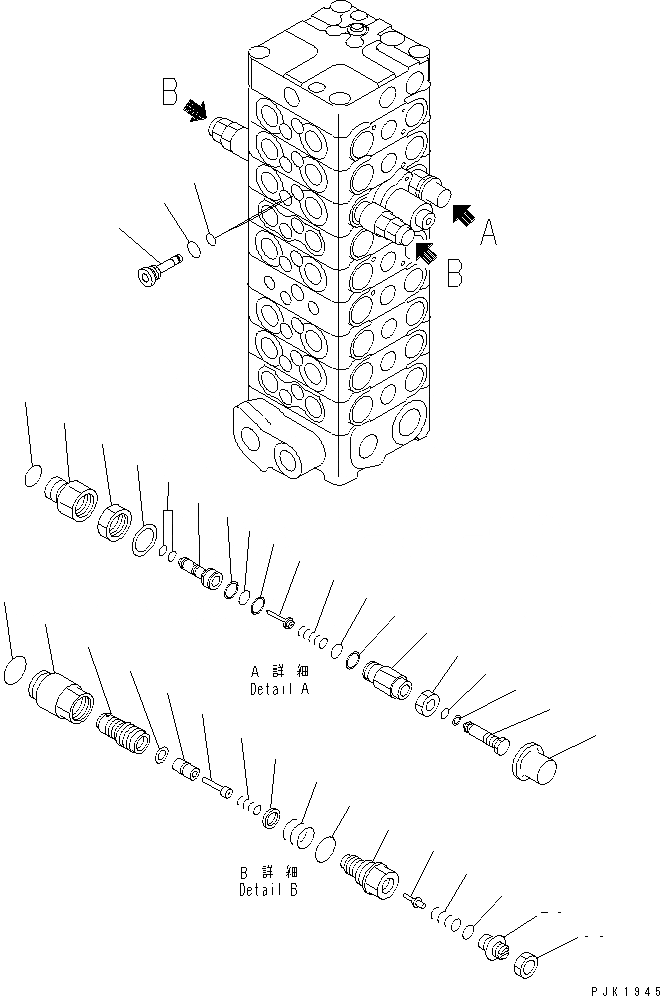

Запчасти Komatsu PC120-6E0-T2 ОСНОВН. КЛАПАН (9-КЛАПАН) (/7) (С 2-СЕКЦИОНН. СТРЕЛА ИЛИ ПОВОРОТН. РУКОЯТЬ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-59-12505

CONTROL VALVE

|1

723-59-12504

CONTROL VALVE

|1

723-59-12503

CONTROL VALVE

|1

723-59-12502

CONTROL VALVE

|1

723-59-12501

CONTROL VALVE

|1

723-59-12500

CONTROL VALVE

|1

723-59-11503

CONTROL VALVE

|1

723-59-11502

CONTROL VALVE

|1

723-59-11501

CONTROL VALVE

|1

723-59-11500

CONTROL VALVE

|1

723-51-01700

VALVE ASS'Y

|1

723-51-01202

VALVE ASS'Y

|1

723-51-01201

VALVE ASS'Y

|1

723-51-01200

VALVE ASS'Y

|1

723-50-42103

VALVE ASS'Y

|1

723-50-42100

VALVE ASS'Y

1

SLEEVE

|1

SLEEVE

2

07000-13024

O-RING

3

SEAT

|3

SEAT

4

SEAL

|4

SEAL

5

POPPET

6

SPRING

7

PLUG

|7

PLUG

8

O-RING

9

RING

10

SCREW

11

O-RING

12

RING,BACK-UP

13

NUT

|13

NUT

14

PLATE

|14

PLATE

15

NUT

16

CAP

17

723-56-31640

PLUG

18

07002-11623

O-RING

19

07000-11008

O-RING

|20

709-70-74600

VALVE ASS'Y,SUCTION AND SAFETY

20

SLEEVE

21

SLEEVE

22

POPPET

23

PISTON

24

PLUG

25

POPPET

26

SCREW

27

SPRING

28

SPRING

29

SPRING

30

SEAL

31

SEAL

32

709-25-11390

O-RING

33

O-RING

34

O-RING

35

NUT
