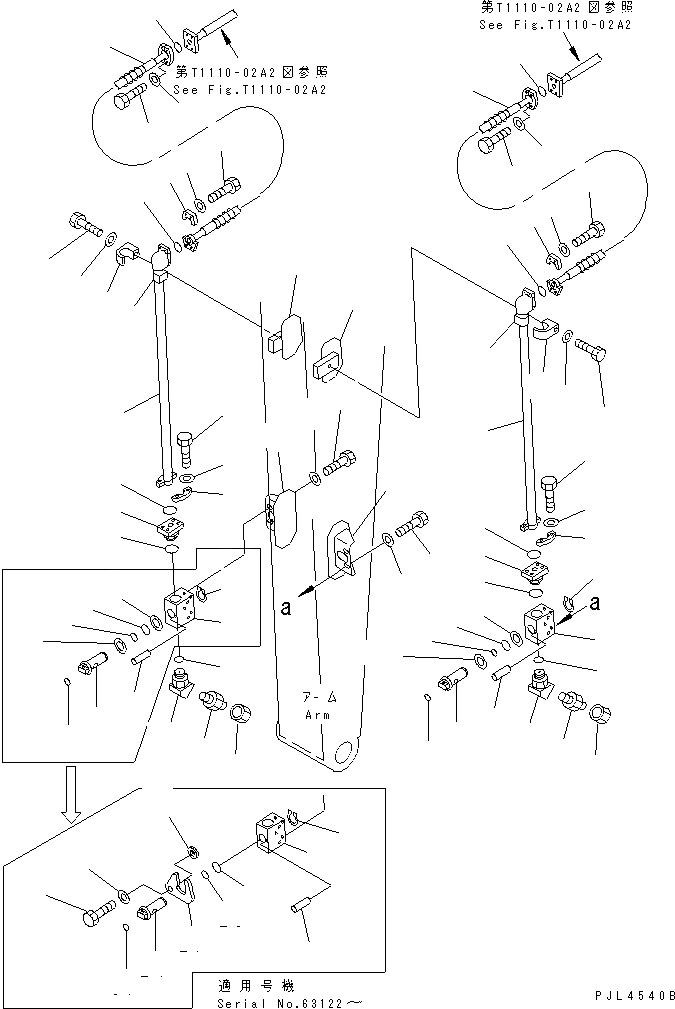

Запчасти Komatsu PC120-6 РУКОЯТЬ (-ACTUATER НАВЕСН. ОБОРУД) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

202-973-6321

BRACKET

2

202-973-6331

BRACKET

3

07097-20614

HOSE

4

07371-30640

FLANGE,SPLIT

5

07372-21035

BOLT

6

01643-51032

WASHER

7

07000-13025

O-RING

8

203-62-64340

TUBE

9

203-973-5780

CLAMP

10

203-62-43380

CUSHION

11

01010-81270

BOLT

|11

01010-51270

BOLT

12

01643-31232

WASHER

13

07371-30640

FLANGE,SPLIT

14

07372-21035

BOLT

15

01643-51032

WASHER

16

07000-13025

O-RING

17

201-973-6810

NIPPLE

18

07002-13334

O-RING

|19

203-973-5803

VALVE ASS'Y

|19

203-973-5802

VALVE ASS'Y

19

07000-13031

O-RING

|19

202-973-6380

O-RING

20

202-973-6930

RING

21

04025-00412

PIN

22

04064-03015

RING,SNAP

23

BODY

|23

BODY

24

SHAFT

|24

SPOOL

25

07000-13025

O-RING

26

07001-03025

RING

27

203-973-6610

MAT

28

01010-80825

BOLT

29

01643-30823

WASHER

30

21T-72-14930

BOSS

|30

6130-12-1961

SPACER

31

01010-81025

BOLT

|31

01010-51025

BOLT

32

01643-31032

WASHER

33

203-973-5730

ELBOW

34

07002-13334

O-RING

35

20D-973-3350

NIPPLE

36

20D-793-3360

PLUG

37

203-00-56640

PLATE¤ MARK
