Запчасти Komatsu PC120-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

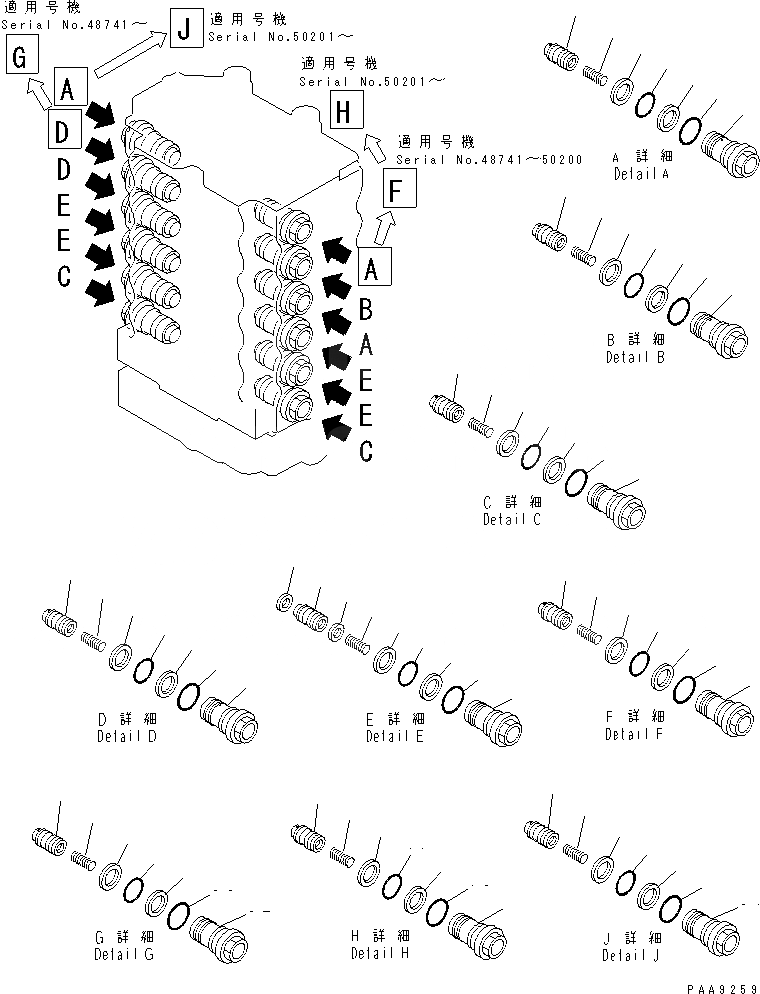

Схема запчастей Komatsu PC120-6 - ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
17
18
19
20
21
22
23
23
24
25
26
27
28
29
29
30
31
32
33
34
35
35
36
37
38
38
39
40
41
42
42
43
44
45
46
47
48
48
49
50
51
52
53
54
54
55

Артикул

Название

Примечание

Количество

|1

723-39-12104

CONTROL VALVE

|1

723-39-12103

CONTROL VALVE

|1

723-39-12101

CONTROL VALVE

|1

723-39-12100

CONTROL VALVE

|1

723-36-40101

VALVE ASS'Y

|1

723-36-40100

VALVE ASS'Y

|1

723-36-40100

VALVE ASS'Y

1

PISTON SUB ASS'Y

2

SLEEVE

3

SPRING

4

700-80-61260

O-RING

5

700-80-61430

RING

6

07002-13034

O-RING

|7

723-36-40400

VALVE ASS'Y

7

PISTON SUB ASS'Y

8

SLEEVE

9

SPRING

10

700-80-61260

O-RING

11

700-80-61430

RING

12

07002-13034

O-RING

|13

723-36-41100

VALVE ASS'Y

13

PISTON SUB ASS'Y

14

SLEEVE

15

SPRING

16

700-80-61260

O-RING

17

700-80-61430

RING

18

07002-13034

O-RING

|19

723-36-41200

VALVE ASS'Y

19

PISTON SUB ASS'Y

20

SLEEVE

21

SPRING

22

700-80-61260

O-RING

23

700-80-61430

RING

24

07002-13034

O-RING

|25

723-36-42101

VALVE ASS'Y

|25

723-36-42100

VALVE ASS'Y

|25

723-36-42100

VALVE ASS'Y

25

PISTON SUB ASS'Y

|25

PISTON SUB ASS'Y

26

SLEEVE

27

SPRING

28

700-80-61260

O-RING

29

700-80-61430

RING

30

07002-13034

O-RING

|31

723-36-42401

VALVE ASS'Y

|31

723-36-42400

VALVE ASS'Y

31

PISTON SUB ASS'Y

|31

PISTON SUB ASS'Y

32

SLEEVE

33

SPRING

34

700-80-61260

O-RING

35

700-80-61430

RING

36

07002-13034

O-RING

|37

723-36-43301

VALVE ASS'Y

37

PISTON

38

SEAL

39

SLEEVE

40

SPRING

41

700-80-61260

O-RING

42

700-80-61430

RING

43

07002-13034

O-RING

|44

723-36-41400

VALVE ASS'Y

44

PISTON SUB ASS'Y

45

SLEEVE

46

SPRING

47

700-80-61260

O-RING

48

700-80-61430

RING

49

07002-13034

O-RING

|50

723-36-43100

VALVE ASS'Y

50

PISTON SUB ASS'Y

51

SLEEVE

52

SPRING

53

700-80-61260

O-RING

54

700-80-61430

RING

55

07002-13034

O-RING

Выбрано товаров: 75
