Запчасти Komatsu PC120-5Z МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

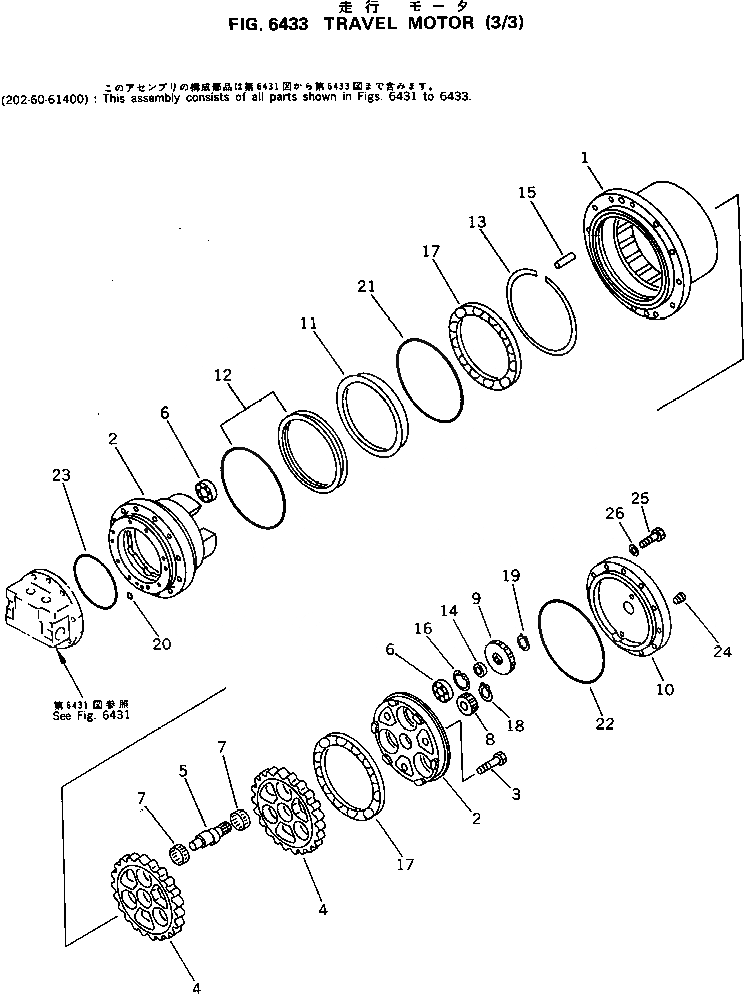

Схема запчастей Komatsu PC120-5Z - МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

203-60-57300

TRAVEL MOTOR ASS'Y

1

TZ200B1001-00

HUB

|2

TZ400A1102-01

SPINDLE KIT

2

TZ400A1132-01

SPINDLE ASS'Y

3

TZ200B1019-02

BOLT,REAMER

|4

TZ200B1104-02

RV GEAR ASS'Y

4

TZ200B1204-01

RV GEAR KIT

5

TZ200B1009-01

SHAFT,CRANK

6

TZ200B1022-00

BEARING

7

TZ200B1023-00

BEARING

8

TZ200B1006-00

GEAR,INPUT

9

TZ200B1107-01

SPUR GEAR KIT,(3 PIECES)

10

TZ200B1008-00

COVER

|11

TZ250-280-35

FLOATING SEAL ASS'Y

11

TZ150F1027-01

PIECE,DISTANCE

12

TZES100-250-A

SEAL,FLOATING (K1)

13

TZ700C1016-00

RING

14

TZ200B1014-01

PIECE,DISTANCE

15

TZ200B1017-00

PIN

16

TZ150A1020-00

SNAP RING KIT,(12 KINDS)

17

TZ200B1021-00

BEARING

18

04064-02815

RING,SNAP

19

04064-03515

RING,SNAP

20

07000-11008

O-RING (K1)

21

07000-15280

O-RING (K1)

22

TZARP568-378-9

O-RING (K1)

23

TZJW1516-G41-9

O-RING (K1)

24

TZGM1-2

PLUG

25

01010-31245

BOLT

26

TZSW-M12

WASHER

K1

TZ400A9000-00

SEAL KIT

|1

TZTCN-32-52-11

SEAL,OIL

|1

07000-11009

O-RING

|1

07000-15145

O-RING

|1

07000-15170

O-RING

|1

TZSUN-2BG170

RING,BACK-UP

|1

TZ231F2030-00

RING,BACK-UP

|1

07000-13032

O-RING

|1

07000-12020

O-RING

|1

07002-02034

O-RING

|1

TZES100-250-A

SEAL,FLOATING

|1

07000-11008

O-RING

|1

07000-15280

O-RING

|1

TZARP568-378-9

O-RING

|1

TZJW1516-G41-9

O-RING

Выбрано товаров: 45
