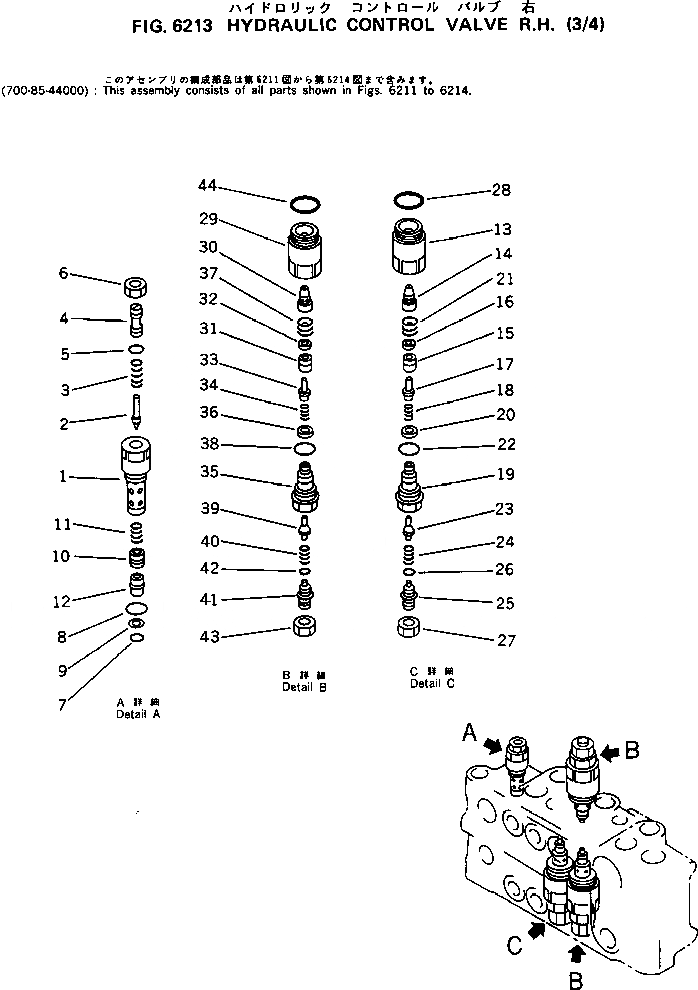

Запчасти Komatsu PC120-5Z ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ.(/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-44000

VALVE ASS'Y,R.H.

|1

709-70-55300

VALVE ASS'Y,RELIEF

1

SLEEVE

2

709-70-51420

POPPET

3

709-70-51230

SPRING

4

700-20-51340

SCREW

5

07000-02011

O-RING

6

01582-11411

NUT

7

700-22-11410

O-RING

8

07002-02434

O-RING

9

700-20-51550

RING

10

VALVE

11

709-70-51210

SPRING

12

700-20-51540

RETAINER

|13

709-70-74501

VALVE ASS'Y,SUCTION AND SAFETY

13

709-70-71112

SLEEVE

14

SLEEVE

15

POPPET

16

SEAL

17

PISTON

18

709-70-71210

SPRING

19

PLUG

20

SEAL

21

709-70-71220

SPRING

22

07002-02434

O-RING

23

POPPET

24

SPRING

25

SCREW

26

O-RING

27

NUT

28

709-25-11390

O-RING

|29

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

29

709-70-71112

SLEEVE

30

SLEEVE

31

POPPET

32

SEAL

33

PISTON

34

709-70-71210

SPRING

35

PLUG

36

SEAL

37

709-70-71220

SPRING

38

07002-02434

O-RING

39

POPPET

40

SPRING

41

SCREW

42

O-RING

43

NUT

44

709-25-11390

O-RING
