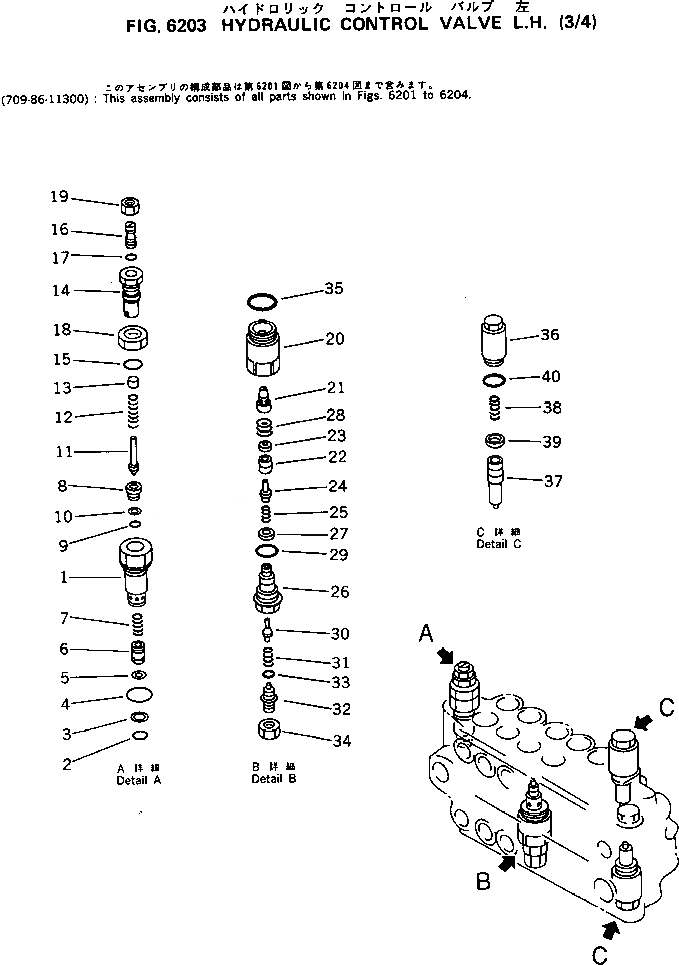

Запчасти Komatsu PC120-5Z ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ.(/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-86-11300

VALVE ASS'Y,L.H.

|1

709-80-52800

VALVE ASS'Y,RELIEF

1

SLEEVE

2

700-13-31161

O-RING

3

700-80-51190

RING,BACK-UP

4

07002-03334

O-RING

5

700-80-51350

RING,SNAP

6

VALVE

7

700-80-51390

SPRING

8

700-80-51740

SEAT

9

07000-22012

O-RING

10

07001-02012

RING,BACK-UP

11

700-80-61190

POPPET

12

709-20-51231

SPRING

13

709-90-51260

RETAINER

14

700-80-51360

HOLDER

15

07002-02434

O-RING

16

700-80-51630

SCREW

17

07000-02011

O-RING

18

07239-12410

NUT

19

01582-11411

NUT

|20

709-70-74501

VALVE ASS'Y,SUCTION AND SAFETY

20

709-70-71112

SLEEVE

21

SLEEVE

22

POPPET

23

SEAL

24

PISTON

25

709-70-71210

SPRING

26

PLUG

27

SEAL

28

709-70-71220

SPRING

29

07002-02434

O-RING

30

POPPET

31

SPRING

32

SCREW

33

O-RING

34

NUT

35

709-25-11390

O-RING

|36

709-20-81201

VALVE ASS'Y,SUCTION

36

709-20-61110

SLEEVE

37

VALVE

38

709-20-61160

SPRING

39

SEAL

40

709-25-11390

O-RING
