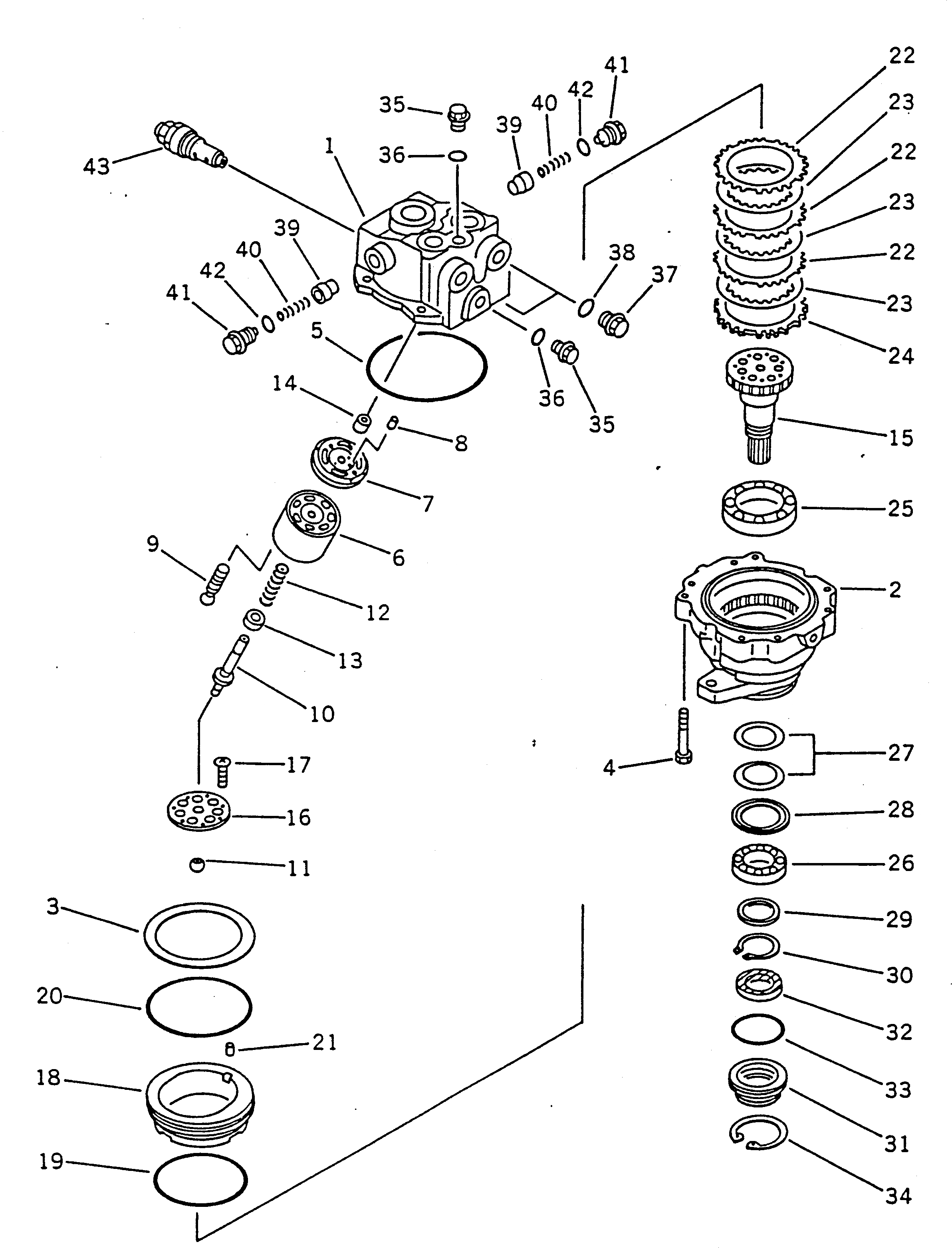

Запчасти Komatsu PC120-5X МОТОР ПОВОРОТА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-73-01071

SWING MOTOR

1

706-73-72461

HOUSING

2

706-73-42121

CASE

3

706-73-92160

SPRING

4

706-74-40320

BOLT

5

195-30-33190

O-RING

6

706-73-41091

BLOCK

7

706-73-42740

VALVE PLATE

8

04020-00616

DOWEL PIN

9

706-73-41163

PISTON

10

11

706-73-41220

BALL

12

706-73-41110

SPRING

13

706-73-41130

RING

14

706-73-40010

BEARING

15

706-73-42661

DRIVE SHAFT

16

706-73-42260

RETAINER

17

706-73-42270

SCREW

18

706-73-92180

PISTON

19

07000-12130

O-RING

20

07000-12145

O-RING

21

706-73-42820

PIN

22

706-73-92140

PLATE

23

706-75-90050

DISC

24

706-73-92130

PLATE

25

706-74-41880

BEARING

26

706-75-40890

ROLLER BEARING

27

706-73-42610

SPRING

28

706-73-42620

SEAT

29

706-73-05010

SPACER KIT

|29

|29

|29

30

04064-04018

SNAP RING

31

706-73-42711

COVER

32

708-8D-12210

OIL SEAL

33

07000-02080

O-RING

34

04065-08530

SNAP RING

35

706-77-72280

PLUG

36

07002-12034

O-RING

37

706-77-72170

PLUG

38

07002-12434

O-RING

39

706-73-72420

VALVE

40

706-73-72440

SPRING

41

706-73-72430

PLUG

42

07002-12434

O-RING

43

706-73-01200

MOTOR ASS'Y
