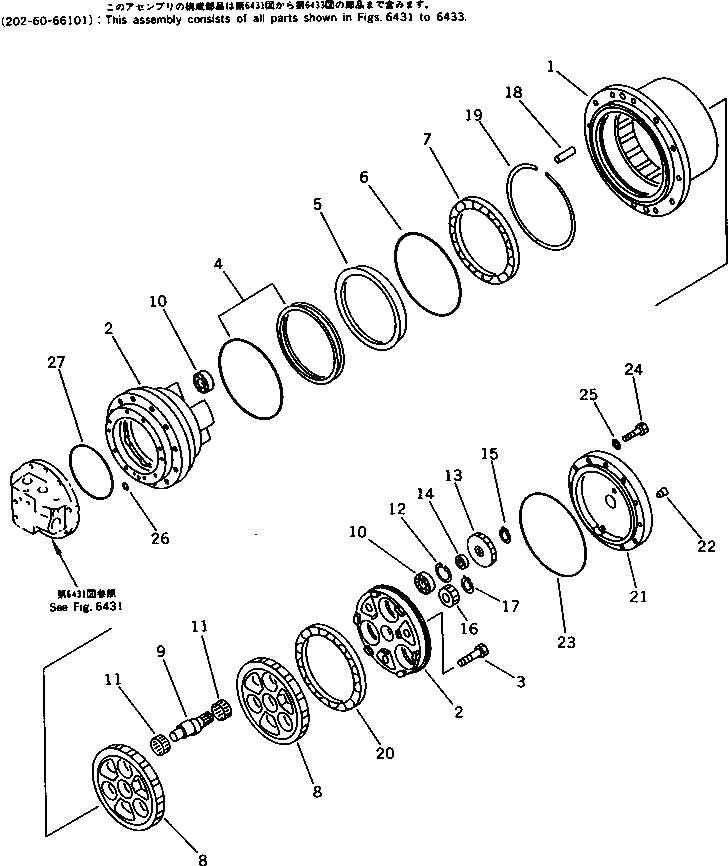

Запчасти Komatsu PC120-5X МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

203-60-56701

TRAVEL MOTOR ASS'Y

1

TZ200B1001-00

HUB

|2

TZ200B1102-02

SPINDLE

2

TZ200B1132-02

SPINDLE ASS'Y

3

TZ200B1019-01

BOLT,REAMER

4

TZES100-250-A

SEAL,FLOATING (K1)

5

TZ150F1027-01

PIECE,DISTANCE

6

07000-15280

O-RING (K1)

7

TZ200B1021-00

BEARING

|8

TZ200B1104-02

RV GEAR ASS'Y

8

TZ200B1204-01

RV GEAR KIT

9

TZ200B1009-01

SHAFT,CRANK

10

TZ200B1022-00

BEARING

11

TZ200B1023-00

BEARING

12

TZ150A1020-00

SNAP RING KIT

13

TZ201B1107-01

SPUR GEAR KIT

14

TZ200B1014-01

PIECE,DISTANCE

15

04064-03515

RING,SNAP

16

TZ201B1006-00

GEAR

17

04064-02815

RING,SNAP

18

TZ200B1017-00

PIN

19

TZ700C1016-00

RING

20

TZ200B1021-00

BEARING

21

TZ200B1008-00

COVER

22

TZGM1-2

PLUG

23

TZARP568-378-9

O-RING (K1)

24

01010-31245

BOLT

25

TZSW-M12

WASHER

26

07000-11008

O-RING (K1)

27

TZJW1516-G41-9

O-RING (K1)

K1

TZ205B9000-00

SERVICE KIT

|1

07000-15145

O-RING

|1

TZ231F2030-00

RING,BACK-UP

|1

07000-15170

O-RING

|1

TZSUN-2BG170

RING,BACK-UP

|1

TZTCH-32-52-11

SEAL,OIL

|1

07000-11009

O-RING

|1

07000-13032

O-RING

|1

07000-11006

O-RING

|1

07000-12020

O-RING

|1

07000-13032

O-RING

|1

07000-12020

O-RING

|1

07002-02034

O-RING

|1

TZES100-250-A

SEAL,FLOATING

|1

07000-15280

O-RING

|1

TZARP568-378-9

O-RING

|1

07000-11008

O-RING

|1

TZJW1516-G41-9

O-RING
