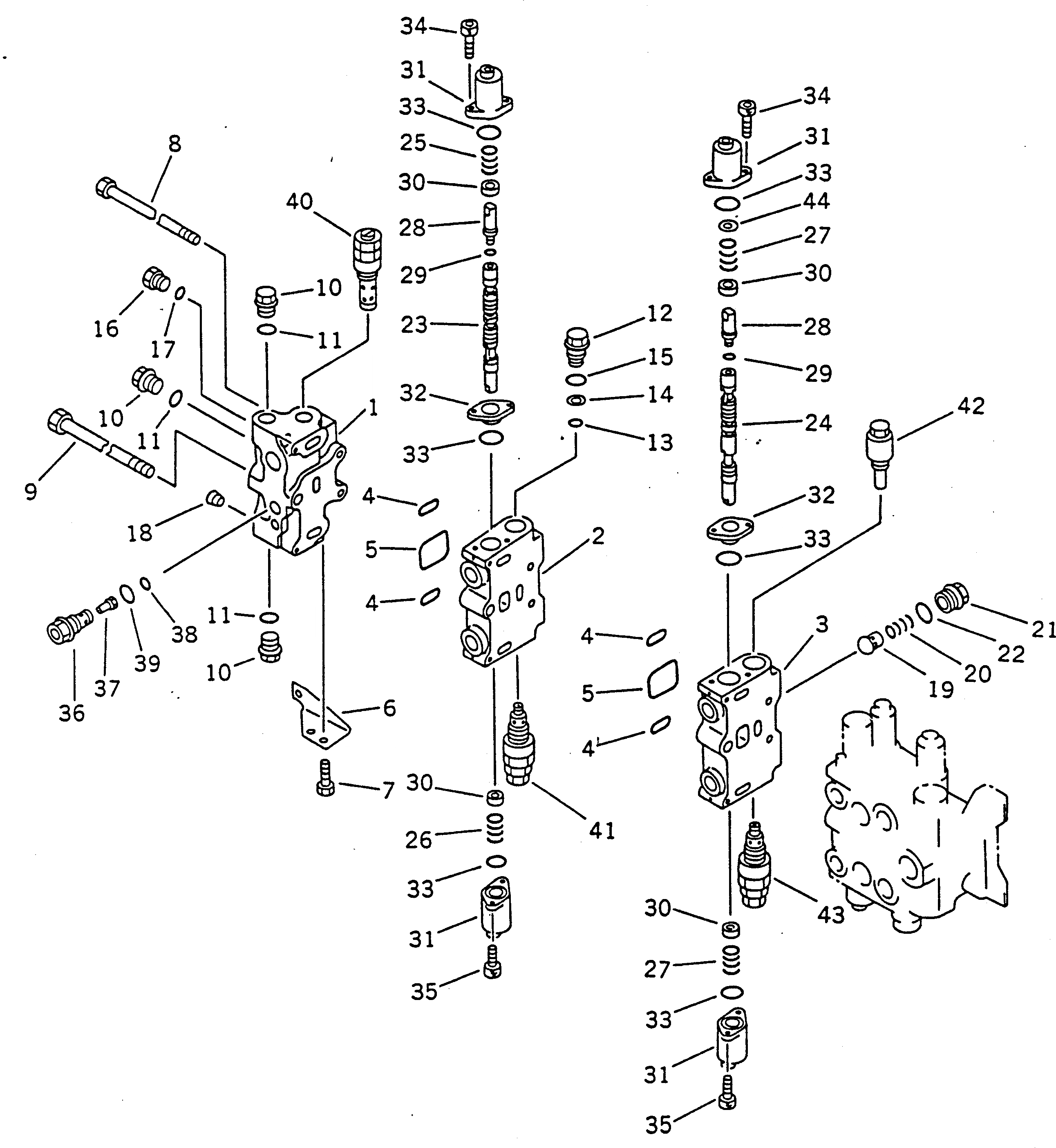

Запчасти Komatsu PC120-5S ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-48001

VALVE ASS'Y,R.H.

1

COVER,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

07000-03038

O-RING

5

07000-13050

O-RING

6

700-84-16410

BRACKET

7

01010-51020

BOLT

8

700-86-11112

BOLT

9

700-84-13220

BOLT

10

709-74-91860

PLUG

11

07002-12434

O-RING

12

709-74-91510

PLUG

13

07000-11009

O-RING

14

07001-01009

RING,BACK-UP

15

709-25-11390

O-RING

16

07040-11409

PLUG

17

07002-01423

O-RING

18

07043-70108

PLUG

19

700-42-31460

VALVE

20

700-42-31470

SPRING

21

700-84-11320

PLUG

22

07002-13034

O-RING

23

SPOOL,ARM HIGH

24

SPOOL,BOOM LOW

25

700-84-15730

SPRING

26

700-84-15720

SPRING

27

700-84-15740

SPRING

28

700-84-13790

JOINT

29

07002-11223

O-RING

30

700-84-13781

RETAINER

31

700-84-12510

CASE

32

700-84-13490

PLATE

33

700-84-11240

O-RING

34

01253-30625

BOLT

35

01252-30616

BOLT

|36

709-70-91300

ORIFICE ASS'Y

36

ORIFICE

37

SENSOR

38

07000-02014

O-RING

39

07002-02434

O-RING

40

709-70-55300

VALVE ASS'Y,RELIEF

41

709-70-74501

VALVE ASS'Y,SUCTION AND SAFETY

42

709-20-81201

VALVE ASS'Y,SUCTION

43

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

44

700-84-12590

SPACER
