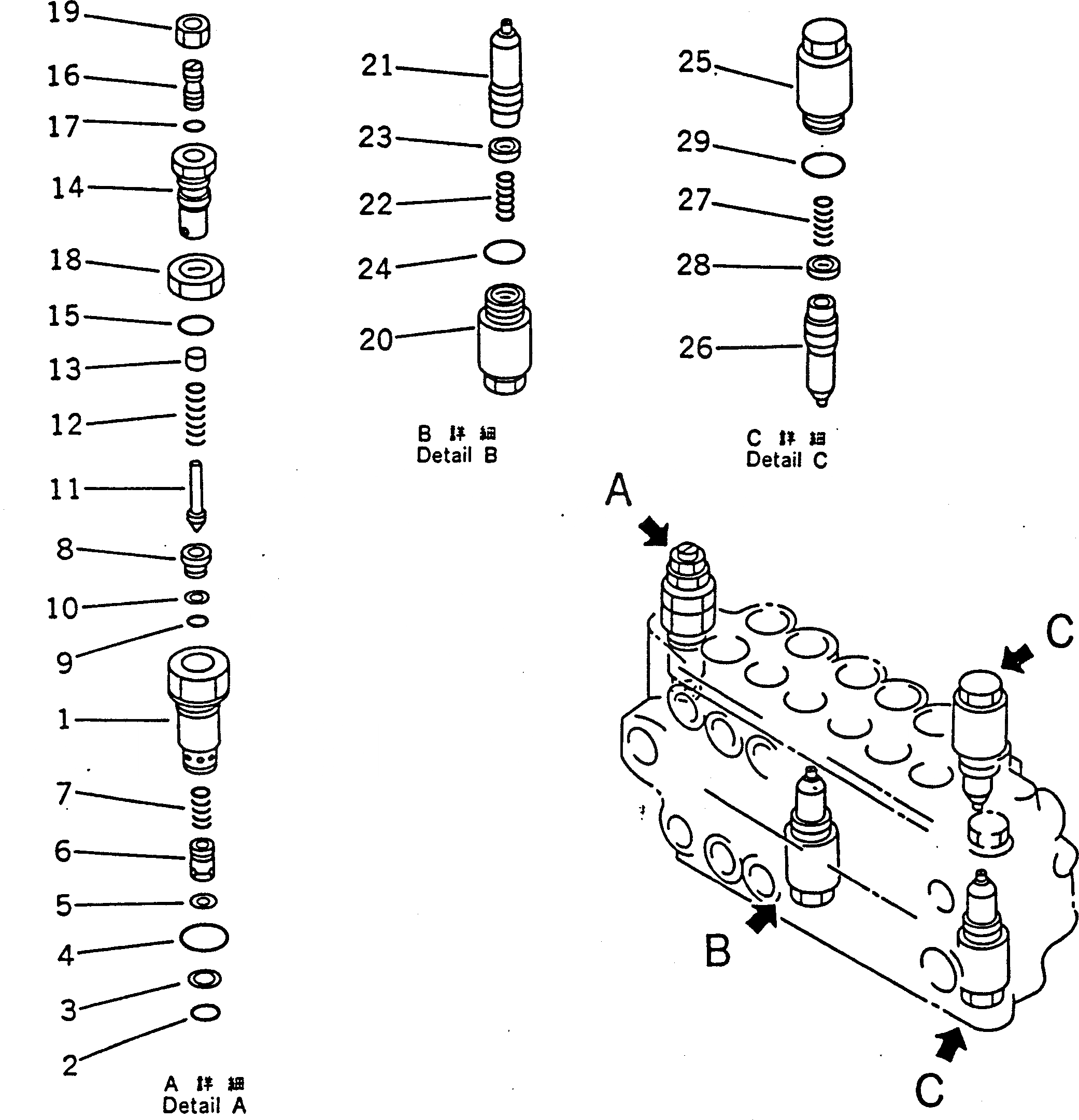

Запчасти Komatsu PC120-5S ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-45001

VALVE ASS'Y,L.H.

|1

709-80-52800

.VALVE ASS'Y,RELIEF

1

..SLEEVE

2

700-13-31161

..O-RING

3

700-80-51190

..RING,BACK-UP

4

07002-03334

..O-RING

5

700-80-51350

..RING,SNAP

6

..VALVE

7

700-80-51390

..SPRING

8

700-80-51740

..SEAT

9

07000-22012

..O-RING

10

07001-02012

..RING,BACK-UP

11

700-80-61190

..POPPET

12

709-20-51231

..SPRING

13

709-90-51260

..RETAINER

14

700-80-51360

..HOLDER

15

07002-02434

..O-RING

16

700-80-51630

..SCREW

17

07000-02011

..O-RING

18

07239-12410

..NUT

19

01582-11411

..NUT

|20

709-20-81201

VALVE ASS'Y,SUCTION

20

709-20-61110

..SLEEVE

21

..VALVE

22

709-20-61160

..SPRING

23

..SEAL

24

709-25-11390

..O-RING

|25

709-20-81201

.VALVE ASS'Y,SUCTION

25

709-20-61110

..SLEEVE

26

..VALVE

27

709-20-61160

..SPRING

28

..SEAL

29

709-25-11390

..O-RING
