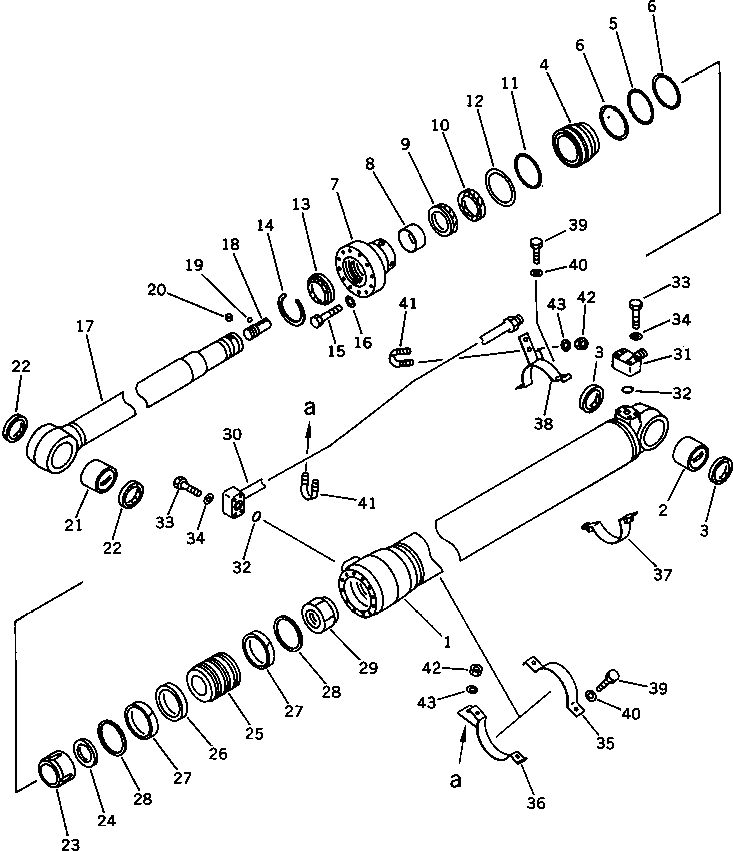

Запчасти Komatsu PC120-5M ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

|$0

203-63-02120

CYLINDER ASS'Y,ARM

1

203-63-64340

CYLINDER

2

707-76-70240

BUSHING

3

07145-00070

SEAL,DUST (K3)

4

707-71-32500

COLLAR

5

07000-15110

O-RING (K3)

6

07001-05110

RING,BACK-UP (K3)

7

707-27-11670

HEAD,CYLINDER

8

707-52-90500

BUSHING

9

707-51-75030

PACKING,ROD (K3)

10

707-51-75630

RING,BUFFER (K3)

11

07000-15110

O-RING (K3)

12

07001-05110

RING,BACK-UP (K3)

13

144-63-94170

SEAL,DUST (K3)

14

07179-13089

RING,SNAP

15

01010-81670

BOLT

16

01643-51645

WASHER

17

203-63-64320

ROD

18

707-71-60200

PLUNGER

19

04260-00635

BALL

20

707-71-91270

CAP

21

707-76-70240

BUSHING

22

07145-00070

SEAL,DUST (K3)

23

707-71-60801

PLUNGER

24

707-40-11470

RETAINER

25

707-36-11510

PISTON

26

707-44-11280

RING,PISTON (K3)

27

707-39-11510

RING,WEAR (K3)

28

707-44-11920

RING

29

07165-15860

NUT,NYLON

30

203-63-64370

TUBE

31

707-87-11450

ELBOW

32

07000-13025

O-RING (K3)

33

01010-50850

BOLT

34

01643-50823

WASHER

35

707-88-95350

BAND

36

707-88-95501

BRACKET

37

707-88-95360

BAND

38

707-88-95510

BRACKET

39

01010-51035

BOLT

40

01643-51032

WASHER

41

07283-22236

CLIP

42

01599-01011

NUT

43

01643-31032

WASHER
