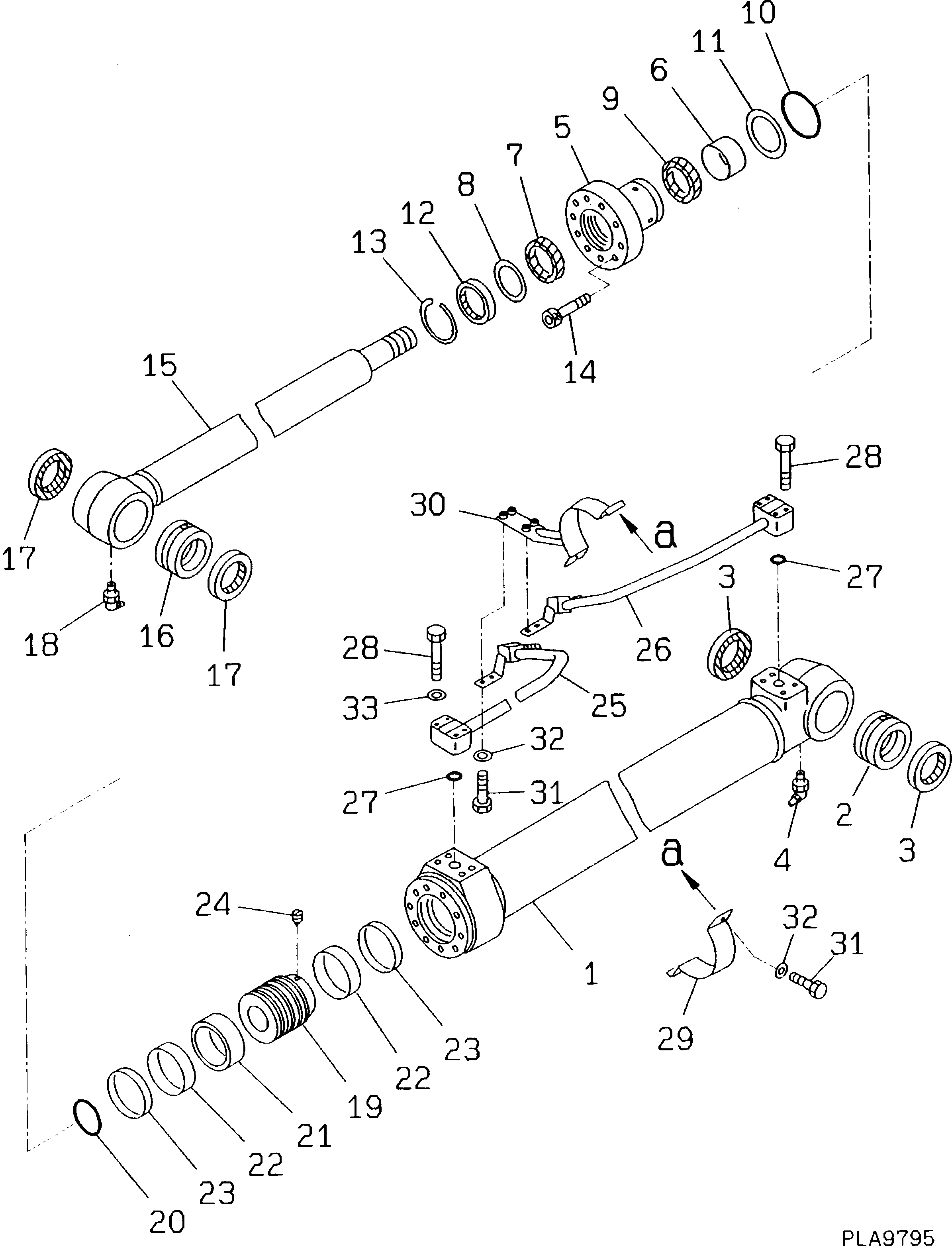

Запчасти Komatsu PC120-5K ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

|1

203-63-K1500

CYLINDER ASS'Y,BOOM¤ L.H. (WITH TUBE)

|1

203-63-K1600

CYLINDER ASS'Y,BOOM¤ R.H. (WITH TUBE)

|1

203-63-K1610

CYLINDER ASS'Y,BOOM

1

203-63-K2260

CYLINDER

2

707-76-70230

BUSHING

3

07145-00070

SEAL,DUST

4

203-63-K2370

FITTING,GREASE

5

203-63-K2310

HEAD,CYLINDER

6

707-52-90450

BUSHING

7

707-51-70030

PACKING,ROD

8

203-63-K2350

RING,BACK-UP

9

707-51-70630

RING,BUFFER

10

203-63-K2320

O-RING

11

203-63-K2330

RING,BACK-UP

12

144-63-95170

SEAL,DUST

13

203-63-K2360

RING,SNAP

14

203-63-K2380

BOLT

15

203-63-K2270

ROD,PISTON

16

707-76-70230

BUSHING

17

07145-00070

SEAL,DUST

18

203-63-K2370

FITTING,GREASE

19

203-63-K2290

PISTON

20

203-63-K2340

O-RING

21

707-44-10280

RING,PISTON

22

707-39-10520

RING,WEAR

23

707-44-10911

RING

24

203-63-K2050

SCREW,SET

25

203-63-54370

TUBE,L.H.

|25

203-63-K2390

TUBE,L.H.

|25

203-63-K2640

TUBE,R.H.

26

203-63-54380

TUBE,L.H.

|26

203-63-K2410

TUBE,L.H.

|26

203-63-K2630

TUBE,R.H.

27

07000-13025

O-RING

28

01010-50850

BOLT

|28

203-63-K2240

BOLT

29

707-88-96971

BAND

|29

203-63-K2770

BAND

30

707-88-95491

BRACKET

|30

203-63-K2420

BRACKET

31

01010-51035

BOLT

|31

203-63-K2210

BOLT

32

01643-51032

WASHER

|32

203-63-K2220

WASHER

33

01643-50823

WASHER
