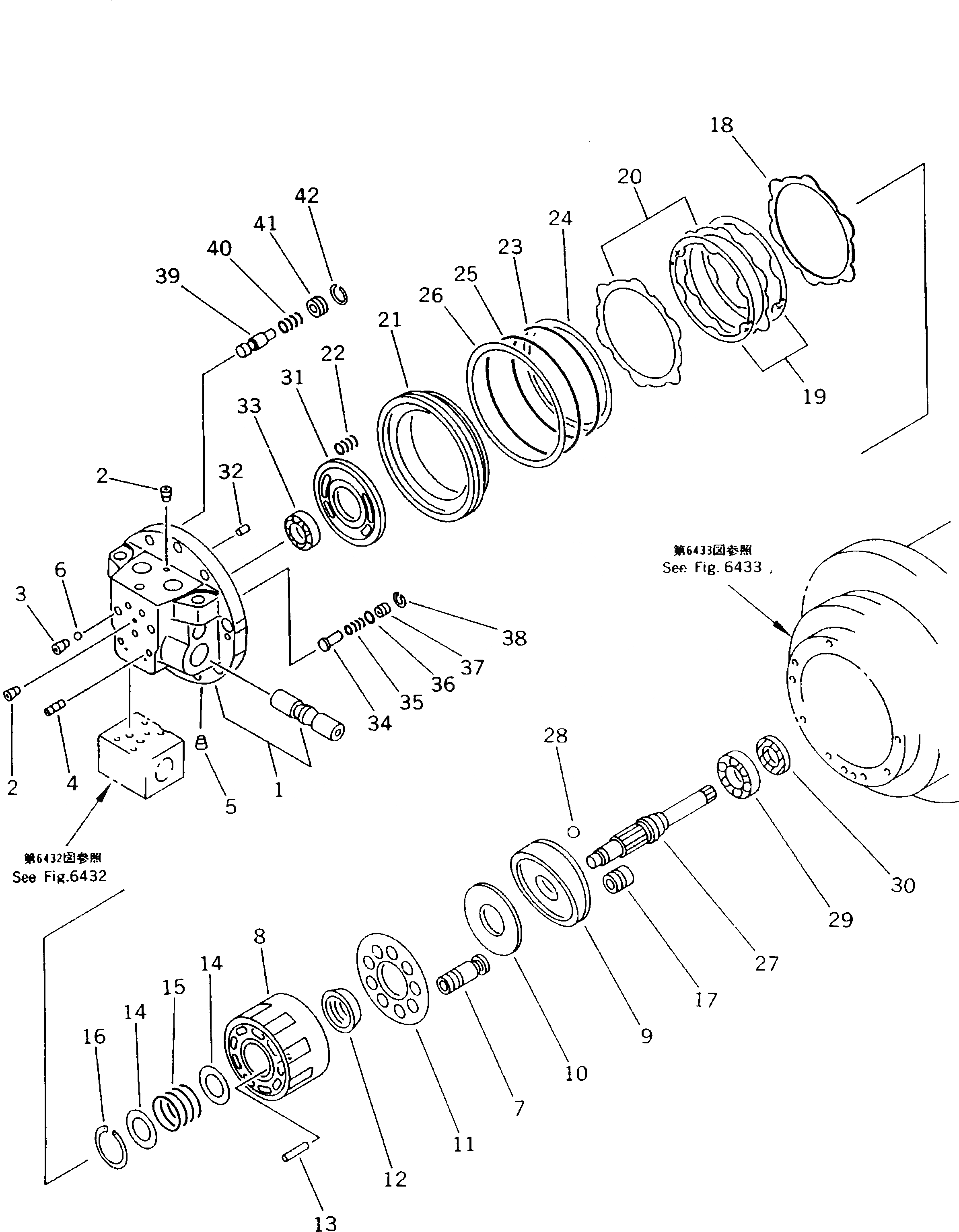

Запчасти Komatsu PC120-5K МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

203-60-56701

TRAVEL MOTOR ASS'Y

1

TZ203B210101-A

FLANGE KIT,REAR

2

TZMB700-070

PLUG

3

TZGM1-4

PLUG

4

TZGM1-8

PLUG

5

TZMB700-050

PLUG

6

04260-00793

BALL

7

TZ210A7105-00

PISTON KIT,(9 SET)

8

TZ200B2004-00

BLOCK,CYLINDER

9

TZ200B200301-C

PLATE,SWASH

10

TZ200B2032-00

PLATE,THRUST

11

TZ200B2007-00

PLATE,RETAINER

12

TZ200B2008-00

BOWL,THRUST

13

TZJB150635-328

PIN

14

TZ150A2010-00

WASHER

15

TZ430F2028-00

SPRING

16

TZIRTW-55

RING,SNAP

17

TZ200B2170-01

PISTON

18

TZ200B2074-00

PLATE

19

TZ200A2015-00

DISC

20

TZ100A2016-00

PLATE

21

TZ231F2012-00

PISTON

22

TZ100A2013-00

SPRING

23

07000-15145

O-RING (K1)

24

TZ231F2023-00

RING,BACK-UP (K1)

25

07000-15170

O-RING (K1)

26

TZSUN-2BG170

RING,BACK-UP (K1)

27

TZ200B2002-01

SHAFT

28

TZJB1501-26

BALL

29

06000-06207

BEARING

30

TZTCN-32-52-11

SEAL,OIL (K1)

31

TZ210A2009-00

PLATE,TIMING

32

TZJB1354-5-12

PIN

33

06000-06204

BEARING

34

TZ430F2019-00

VALVE

35

TZ100A2020-00

SPRING

36

07000-11009

O-RING (K1)

37

TZ100A2018-00

SEAT,VALVE

38

TZ100A2022-00

RING

39

TZ200B2073-00

VALVE

40

TZ300B2043-01

SPRING

41

TZ300B2039-00

STOPPER

42

TZ300B2042-00

RING
