Запчасти Komatsu PC120-5C МАРКИРОВКА (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

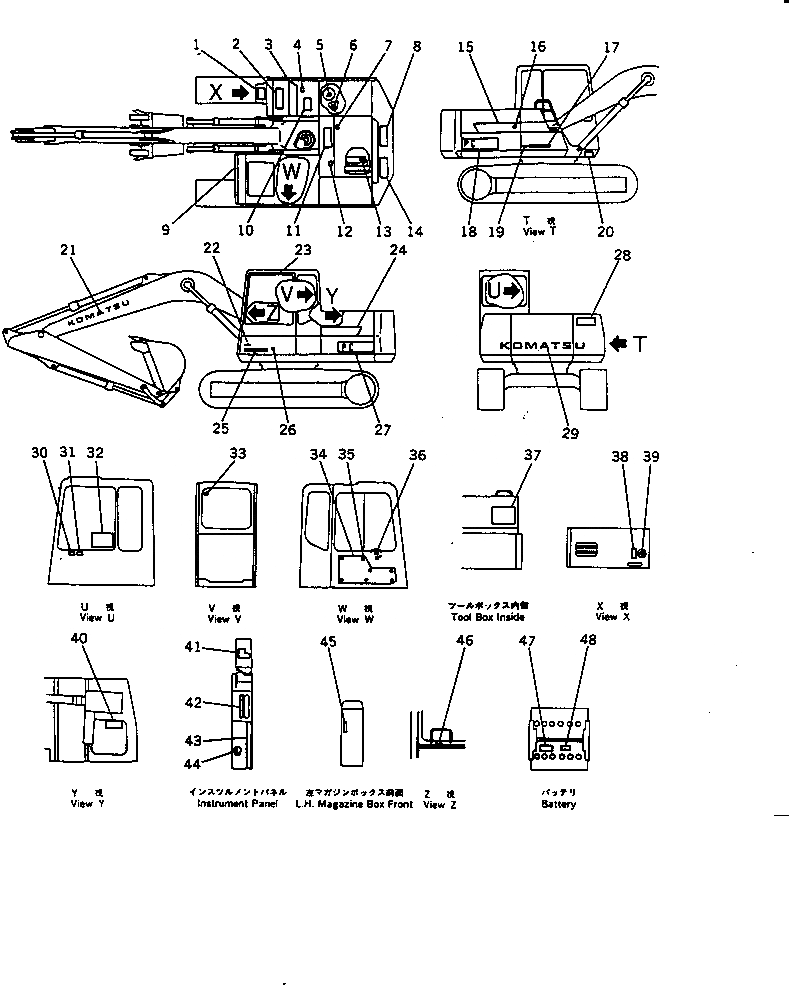

Схема запчастей Komatsu PC120-5C - МАРКИРОВКА (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

203-00-51280

PLATE, MARK,LINE

4

09652-30121

PLATE, CAUTION,FUEL

5

21X-98-19130

PLATE, CAUTION,HYDRAULIC TANK CAP

6

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

7

09667-03000

PLATE, SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

20Y-00-11490

PLATE

10

203-00-51170

SEAT,NONSKID

11

154-54-23260

SEAT,NONSKID

12

09650-30104

PLATE, INSTRUCTION,RADIATOR

13

09668-03000

PLATE, SAFETY,RADIATOR CAP

14

154-54-23260

SEAT,NONSKID

15

203-00-51270

PLATE, MARK,LINE

16

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC OIL LEVEL

17

09690-C0315

PLATE, MARK

17

09690-50400

PLATE, MARK,KOMATSU

18

203-00-51112

PLATE, MARK

18

203-00-51111

PLATE, MARK,PC120

19

09694-50125

PLATE, MARK,SYMBOL

20

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

20

04418-13060

SCREW

21

09690-B0500

PLATE, MARK

21

203-00-51131

PLATE, MARK,KOMATSU

22

09694-50125

PLATE, MARK,SYMBOL

23

20Y-00-11350

PLATE

24

203-00-51260

PLATE, MARK,LINE

25

09690-C0315

PLATE, MARK

25

09690-50400

PLATE, MARK,KOMATSU

26

20Y-00-11350

PLATE

27

203-00-51112

PLATE, MARK

27

203-00-51111

PLATE, MARK,PC120

28

20Y-00-11430

PLATE, CAUTION,KEEP OUT OF TURNING AREA

29

09690-C0710

PLATE, MARK

29

203-00-41131

PLATE, MARK,KOMATSU

30

09699-03000

PLATE, CAUTION,WINDOW WASHER

31

203-916-5130

PLATE, OPERATING

31

203-916-5730

PLATE, OPERATING,ISO PATTERN

32

20Y-00-13110

PLATE, CAUTION

33

205-00-63350

PLATE, CAUTION,AUTO LOCK

34

20Y-54-14670

COVER

35

20Y-54-14560

CLIP ASS'Y

36

205-00-71340

PLATE, OPERATING,DOOR LOCK

37

203-00-56210

CHART, OIL

38

201-00-61340

PLATE, OPERATING,LOCK

39

201-00-61380

PLATE, OPERATING,LOCK

40

09637-30661

PLATE, INSTRUCTION,AIR CLEANER (SINGLE ELEMENT)

40

09637-30161

PLATE, INSTRUCTION,AIR CLEANER (DOUBLE ELEMENT)

41

20Y-00-12140

PLATE

42

201-00-61230

PLATE, OPERATING,FUEL CONTROL LEVER

43

203-00-52220

PLATE

44

20Y-00-12780

PLATE,PANEL

45

09685-00002

PLATE, OPERATING,LOCK LEVER

46

203-00-56230

PLATE, CAUTION,FRONT WINDOW

47

09664-30081

PLATE, SAFETY,BATTERY

48

09664-30068

PLATE, INSTRUCTION,BATTERY

Выбрано товаров: 57
