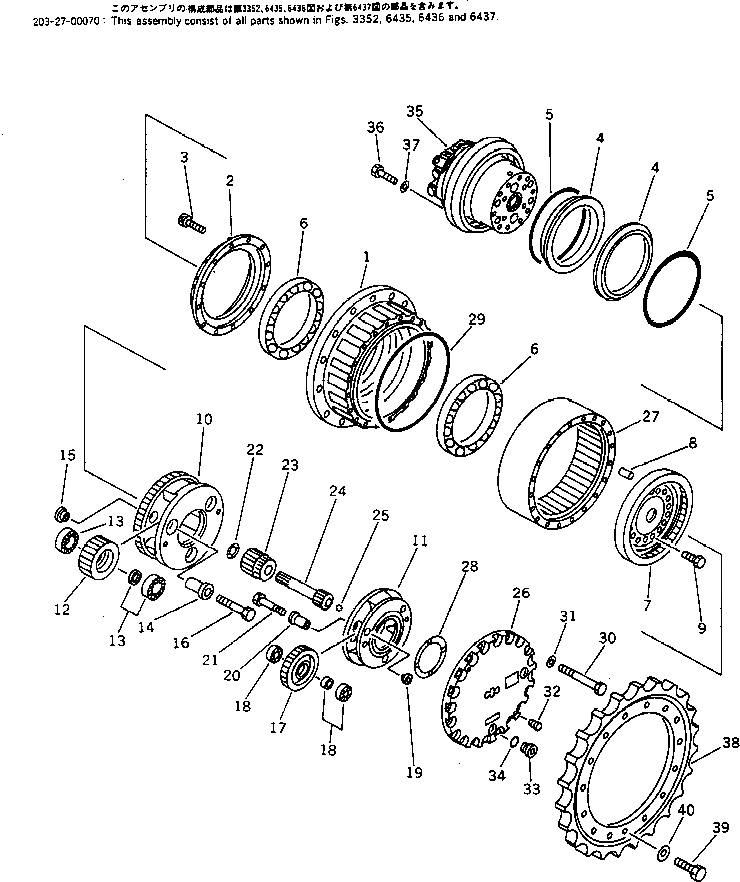

Запчасти Komatsu PC120-5 КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА (С ЛОГОТИП KOMATSU МОТОР)(№-) ХОДОВАЯ

|1

203-27-00070

FINAL DRIVE ASS'Y

1

203-27-53242

HUB

2

203-27-53270

COVER

3

01252-41025

BOLT

|4

130-27-00012

FLOATING SEAL ASS'Y

4

RING¤ SEAL,SEAL

5

O-RING

6

203-27-53290

BEARING

7

203-27-53181

GEAR

8

203-27-53280

PIN

9

205-27-71680

BOLT

10

203-27-53421

CARRIER

11

203-27-53221

CARRIER

12

203-27-53320

GEAR

13

203-27-53450

BEARING

14

203-27-53352

SHAFT

15

203-27-53360

HOLDER

16

01010-51275

BOLT

17

203-27-53120

GEAR

18

203-27-53250

BEARING

19

203-27-53160

HOLDER

20

203-27-53152

SHAFT

21

01010-51055

BOLT

22

203-27-53410

SPACER

23

203-27-53310

GEAR

24

203-27-53112

PINION

25

04260-01111

BALL

26

203-27-53232

COVER

27

203-27-53130

RING,GEAR

28

203-27-53210

SPACER

29

203-27-53480

O-RING

30

01011-51465

BOLT

31

01643-31445

WASHER

32

07049-01012

PLUG

33

203-27-52350

PLUG

34

07002-02434

O-RING

35

708-8E-00042

TRAVEL MOTOR ASS'Y,(SEE FIG.6431A)

36

01010-51650

BOLT

37

01643-31645

WASHER

38

203-27-51210

SPROCKET

39

203-27-51120

BOLT

40

01643-31645

WASHER
