Запчасти Komatsu PC120-5 МАРКИРОВКА (KOMATSU PATTERN №-) (ДЛЯ WRIST УПРАВЛ-Е) (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

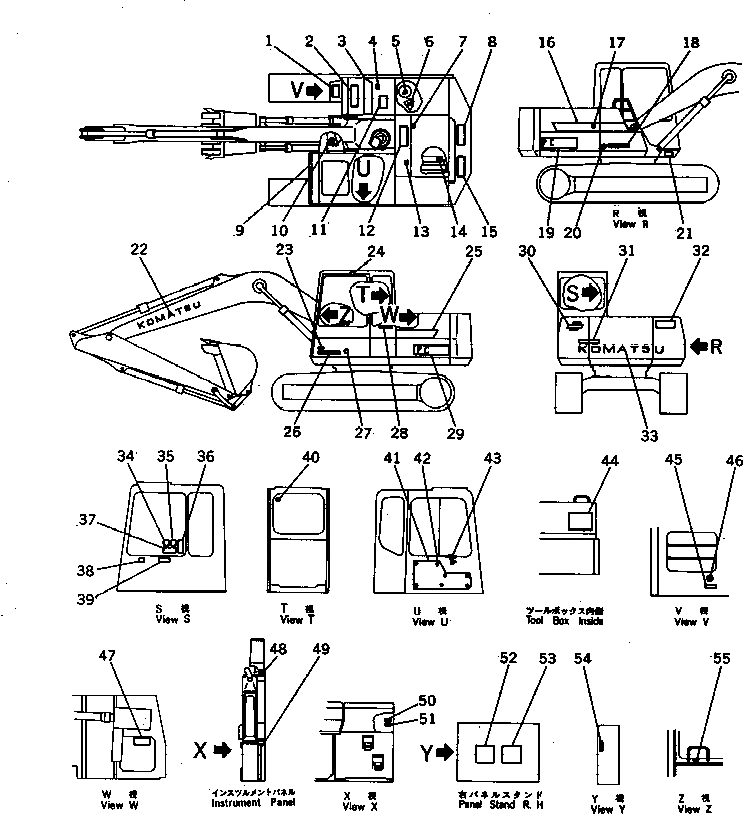

Схема запчастей Komatsu PC120-5 - МАРКИРОВКА (KOMATSU PATTERN №-)         (ДЛЯ WRIST УПРАВЛ-Е) (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

203-00-51280

PLATE¤ MARK,LINE

4

09652-01121

PLATE¤ CAUTION,FUEL

5

201-54-21940

PLATE¤ CAUTION,HYDRAULIC TANK CAP

6

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

7

09667-00100

PLATE¤ SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

20Y-00-11490

PLATE

10

21K-00-22170

PLATE¤ MARK,SYMBOL

11

203-00-51170

SEAT,NONSKID

12

154-54-23260

SEAT,NONSKID

13

09650-01104

PLATE¤ INSTRUCTION,RADIATOR

14

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

15

154-54-23260

SEAT,NONSKID

16

203-00-51270

PLATE¤ MARK,LINE

17

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

18

09690-50400

PLATE¤ MARK,KOMATSU

19

203-00-51111

PLATE¤ MARK,PC120

|19

203-00-51180

PLATE¤ MARK,PC120SS

20

09694-50125

PLATE¤ MARK,SYMBOL

21

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

|21

04418-13060

SCREW

22

203-00-51131

PLATE¤ MARK,KOMATSU

23

09694-50125

PLATE¤ MARK,SYMBOL

24

20Y-00-11350

PLATE

25

203-00-51260

PLATE¤ MARK,LINE

26

09690-50400

PLATE¤ MARK,KOMATSU

27

20Y-00-11350

PLATE

28

20Y-00-11481

PLATE¤ MARK,AVANCE

29

203-00-51111

PLATE¤ MARK,PC120

|29

203-00-51180

PLATE¤ MARK,PC120SS

30

203-00-42130

PLATE¤ MARK,SILENT MACHINE (PC120SS)

31

20Y-00-11520

PLATE¤ MARK,AVANCE

32

203-00-51210

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

33

203-00-41131

PLATE¤ MARK,KOMATSU

34

203-00-52130

PLATE¤ OPERATING,SYMBOL MARK

35

203-00-52150

PLATE¤ CAUTION,LEAVING SEAT

36

203-00-52161

PLATE¤ CAUTION,BEFORE OPERATING

37

203-00-52250

PLATE,MONITOR PANEL

38

20Y-00-11310

PLATE¤ OPERATING,KOMATSU PATTERN

|38

203-916-5130

PLATE¤ OPERATING,MITSUBISHI PATTERN

|38

203-916-5730

PLATE¤ OPERATING,ISO PATTERN

|38

203-916-5150

PLATE¤ OPERATING,SINKOU PATTERN

39

203-00-52280

PLATE¤ CAUTION,ENGINE STARTING

40

205-00-63230

PLATE¤ CAUTION,AUTO LOCK

41

20Y-54-13473

COVER

42

20Y-54-14560

CLIP ASS'Y

43

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

44

203-00-56110

CHART¤ OIL

45

09685-00003

PLATE¤ OPERATING,LOCK

46

203-00-52290

PLATE¤ OPERATING,LOCK

47

09641-01660

PLATE¤ INSTRUCTION,AIR CLEANER (SINGLE ELEMENT)

|47

09641-01160

PLATE¤ INSTRUCTION,AIR CLEANER (DOUBLE ELEMENT)

48

203-00-52260

PLATE¤ OPERATING,WINDOW WASHER

49

203-00-52220

PLATE

50

203-00-52230

PLATE¤ OPERATING,T.V.C. PROLIX

51

203-00-52240

PLATE¤ OPERATING,SWING PROLIX

52

203-00-52110

PLATE¤ DATA

53

203-916-5720

PLATE¤ OPERATING,MULTI PATTERN

54

09685-00002

PLATE¤ OPERATING,LOCK LEVER

55

203-00-52190

PLATE¤ CAUTION,FRONT WINDOW

Выбрано товаров: 62
