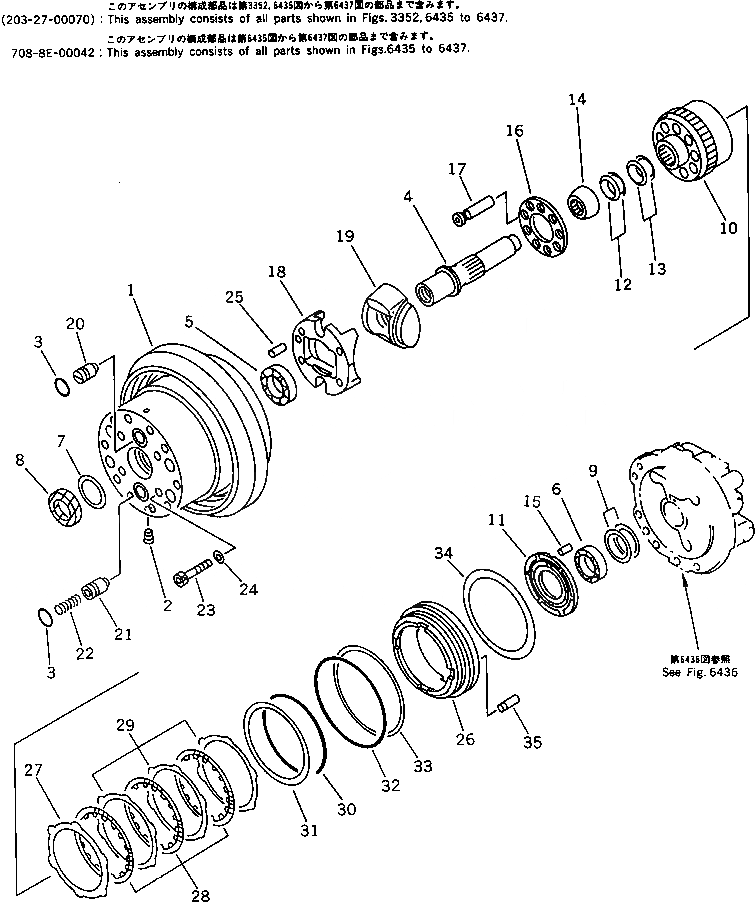

Запчасти Komatsu PC120-5 МОТОР ХОДА (/) (С ЛОГОТИП KOMATSU)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

203-27-00070

FINAL DRIVE ASS'Y

|1

708-8E-00042

TRAVEL MOTOR ASS'Y

|1

708-8E-04111

CASE ASS'Y

1

CASE,MOTOR

2

PLUG

3

07000-13032

O-RING

4

708-8E-12110

SHAFT

5

708-8E-12151

BEARING

6

708-8E-12141

BEARING

7

708-8E-12361

PLATE

8

708-25-52860

SEAL,OIL

9

708-8E-05010

SPACER KIT

|9

SPACER¤ 1.4MM

|9

SPACER¤ 1.5MM

|9

SPACER¤ 1.6MM

|9

SPACER¤ 1.7MM

|9

SPACER¤ 1.8MM

|9

SPACER¤ 1.9MM

|9

SPACER¤ 2.0MM

|9

SPACER¤ 2.1MM

10

708-8E-13110

BLOCK,CYLINDER

11

708-8E-13211

PLATE,VALVE

12

708-8E-13520

SPRING

13

708-8E-05020

SHIM KIT

|13

SHIM

|13

SHIM

|13

SHIM

14

708-8E-13510

GUIDE,RETAINER

15

720-68-19610

PIN

16

708-8E-13340

RETAINER,SHOE

17

708-8E-13312

PISTON ASS'Y

|18

708-8E-04231

CRADLE ASS'Y

18

708-8E-13811

CRADLE

19

708-8E-13450

CAM,ROCKER

20

708-8E-14140

PISTON

21

708-8E-14180

PISTON

22

708-8E-14170

SPRING

23

706-75-40360

BOLT

24

708-8E-13920

WASHER,SEAL

25

04020-01024

PIN,DOWEL

26

708-8E-15160

PISTON,BRAKE

27

708-8E-15110

PLATE

28

708-8E-15120

DISK

29

708-8E-15130

PLATE

30

07000-15150

O-RING

31

07001-05150

RING,BACK-UP

32

07000-15160

O-RING

33

07001-05165

RING,BACK-UP

34

708-8E-15150

SPRING

35

706-75-42820

PIN,DOWEL
