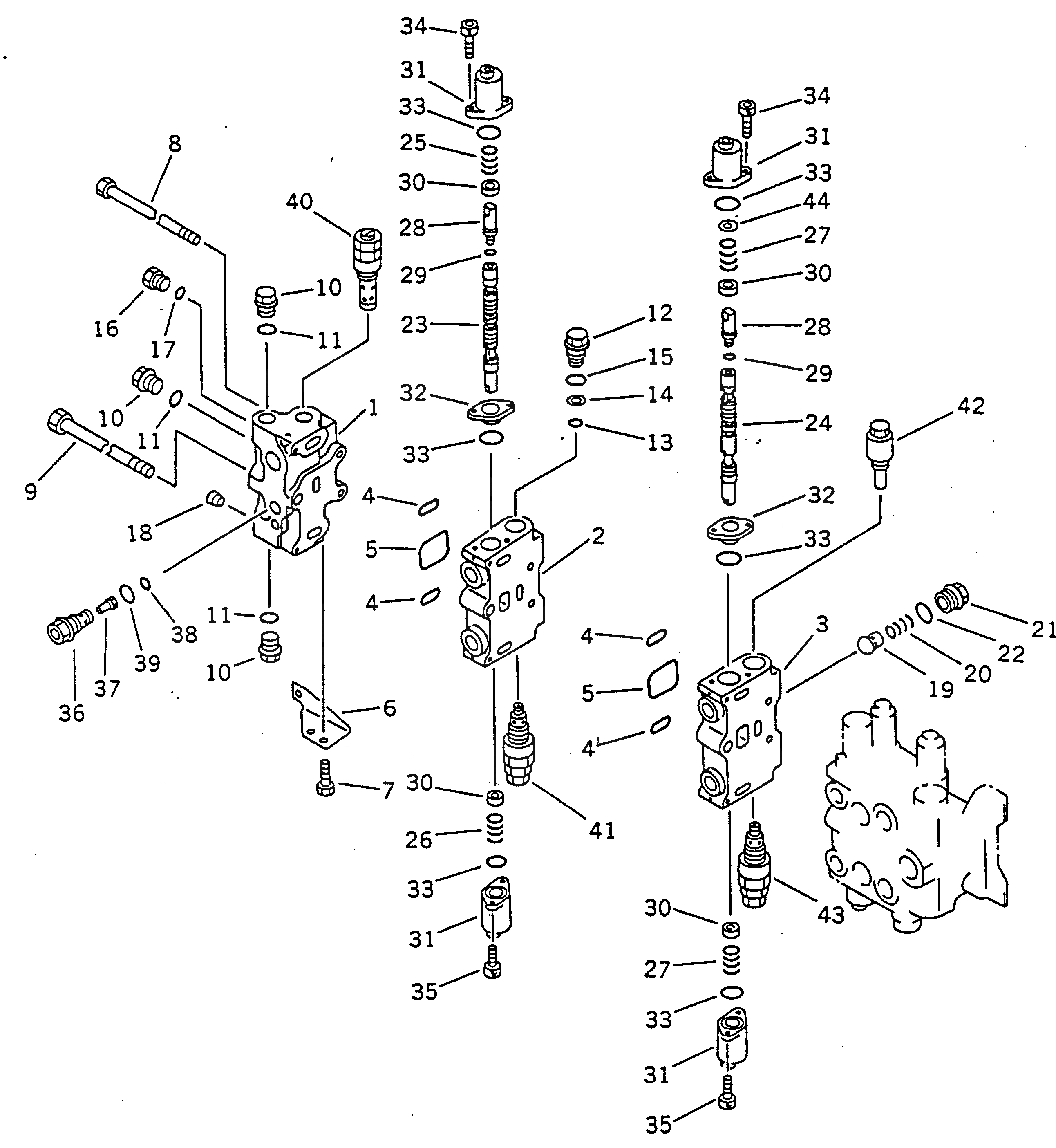

Запчасти Komatsu PC120-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
700-85-48001
VALVE ASS'Y,R.H.
|1
700-85-38003
VALVE ASS'Y,R.H.
|1
700-85-38002
VALVE ASS'Y,R.H.
1
COVER,VALVE
2
BLOCK,VALVE
|2
BLOCK,VALVE
|2
BLOCK,VALVE
3
BLOCK,VALVE
|3
BLOCK,VALVE
4
07000-03038
O-RING
5
07000-13050
O-RING
6
700-84-16410
BRACKET
7
01010-51020
BOLT
8
700-86-11112
BOLT
9
700-84-13220
BOLT
10
709-74-91860
PLUG
11
07002-12434
O-RING
12
709-74-91510
PLUG
|12
700-84-13960
PLUG
13
07000-11009
O-RING
|13
700-22-11410
O-RING
14
07001-01009
RING,BACK-UP
|14
700-80-64220
RING,BACK-UP
15
709-25-11390
O-RING
|15
07002-03034
O-RING
16
07040-11409
PLUG
17
07002-01423
O-RING
18
07043-70108
PLUG
19
700-42-31460
VALVE
20
700-42-31470
SPRING
21
700-84-11320
PLUG
22
07002-13034
O-RING
23
SPOOL,ARM HIGH
24
SPOOL,BOOM LOW
|24
SPOOL,BOOM LOW
25
700-84-15730
SPRING
26
700-84-15720
SPRING
27
700-84-15740
SPRING
28
700-84-13790
JOINT
29
07002-11223
O-RING
30
700-84-13781
RETAINER
31
700-84-12510
CASE
32
700-84-13490
PLATE
33
700-84-11240
O-RING
34
01252-30625
BOLT
35
01252-30616
BOLT
|36
709-70-91300
ORIFICE ASS'Y
36
ORIFICE
37
SENSOR
38
07000-02014
O-RING
39
07002-02434
O-RING
40
709-70-55300
VALVE ASS'Y,RELIEF
41
709-70-74501
VALVE ASS'Y,SUCTION AND SAFETY
|41
709-70-71500
VALVE ASS'Y,SUCTION AND SAFETY
42
709-20-81201
VALVE ASS'Y,SUCTION
|42
700-81-82001
VALVE ASS'Y,SUCTION
43
709-70-74402
VALVE ASS'Y,SUCTION AND SAFETY
|43
709-70-71404
VALVE ASS'Y,SUCTION AND SAFETY
44
700-84-12590
SPACER
Выбрано товаров: 59
